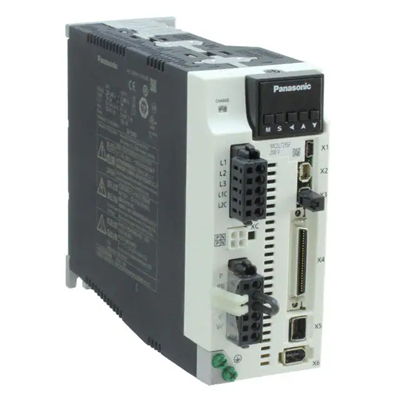

Panasonic: AC Servo Driver MINAS A6 Series MBDLT25SF
Panasonic: AC Servo Driver MINAS A6 Family MBDLT25SF

Alternate View



Price: (Members Only)


Availability: Usually Ships in 1 to 2 Weeks
Order #: MBDLT25SF
Qty:

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Driver MBDLT25SF

MINAS A6 Series, 200V


Panasonic's MINAS A6 family is the latest motion and drives which feature real-time auto-tuning, which greatly reduces damage to equipment due to vibration, noise, and jitter. The MINAS A6 family assures stable operation by suppressing effects of the load to a minimum using adaptive load control which is ideal for robot motions where workload changes from moment to moment, regardless of arm posture or position.


Features:

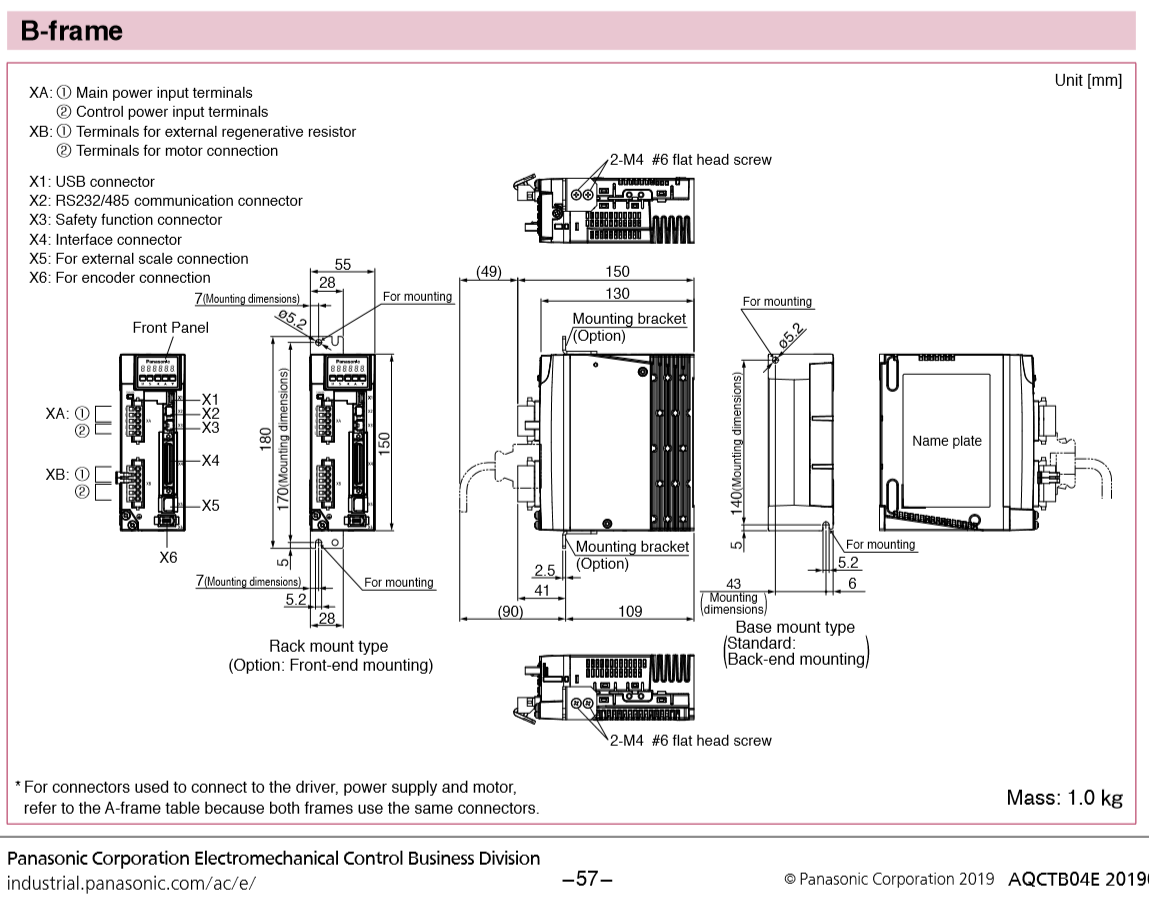

  • MINAS A6 Series, B Frame

  • Max. current rating: 12A

  • Single/3-phase

  • 200V, Load

  • Multi-Function type: Pulse, Analog, Full-closed, with the safety function

  • Rated Output Power: 400W
