Panasonic: AC Servo Driver MSDA013A1A
Panasonic: AC Servo Driver MSDA013A1A

Alternate View

Price: (Members Only)


Availability: 2 in Stock
Order #: MSDA013A1A
Qty:

Description Ordering Information Specifications and Drawings


This one was Installed and operated for more than 10 months

Panasonic: AC Servo Driver MSDA013A1A

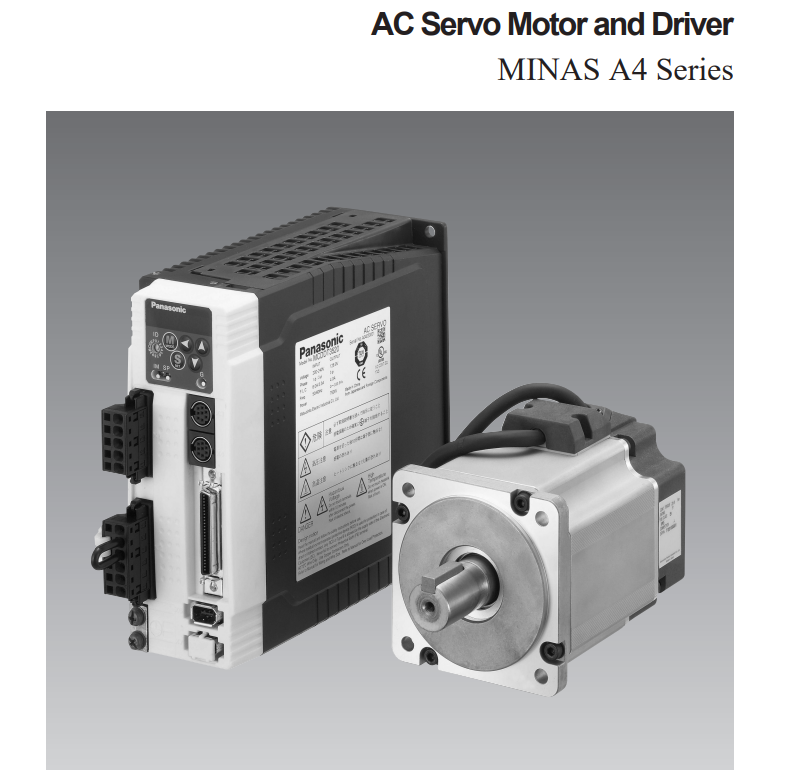

MSMA-MINAS A4 Series (200V)


Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Rated Output (W): 100W. Rotary Encoder:Incremental.

  • Rotary Encoder:Incremental.
