Panasonic: AC Servo Motors MINAS A6 Series MHMF012L1U2M - High Inertia, 100W
Panasonic: AC Servo Motors MINAS A6 Series MHMF012L1U2M

Alternate View



Price: (Members Only)


Availability: 1-3 weeks lead time
Order #: MHMF012L1U2M
Qty:

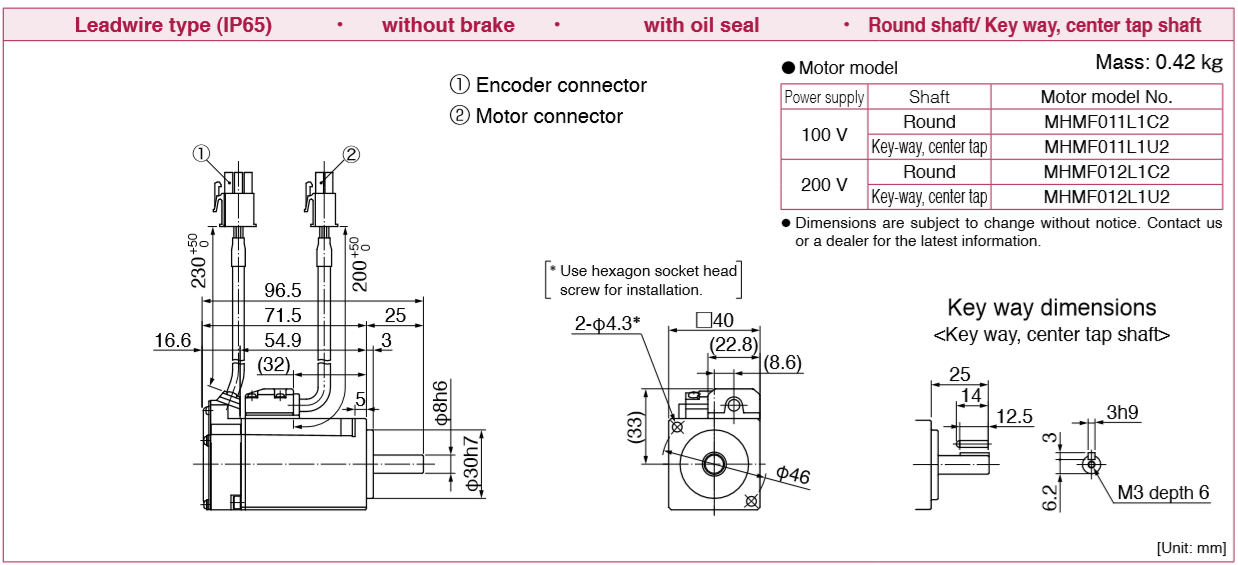

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MHMF012L1U2M - High Inertia, 100W


Motor Specifications:


Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 100 W

Rated torque: 0.32 Nm

Max. current: 5.5 A

Rated current: 1.1 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP65: Leadwire type


Applicable Driver:

1) Multifunction Type: MADLT05SF

2) Basic Type: MADLN05SE
