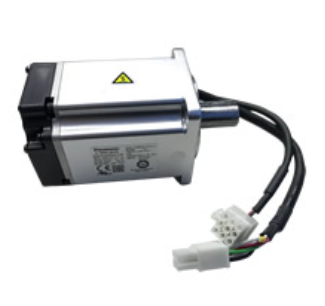

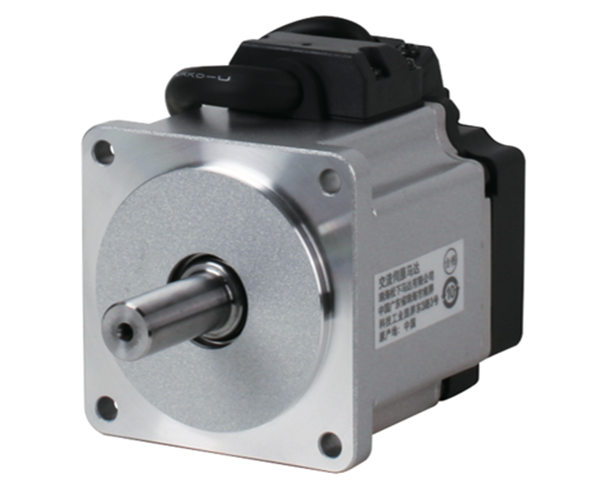

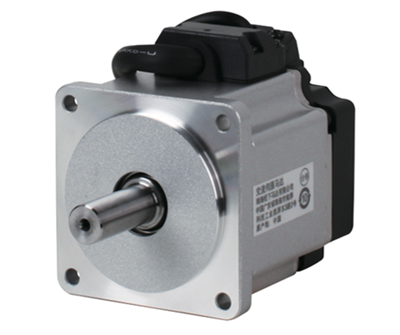

Panasonic: AC Servo Motors MINAS A6 Series MHMF022L1V2M - High Inertia, 200W

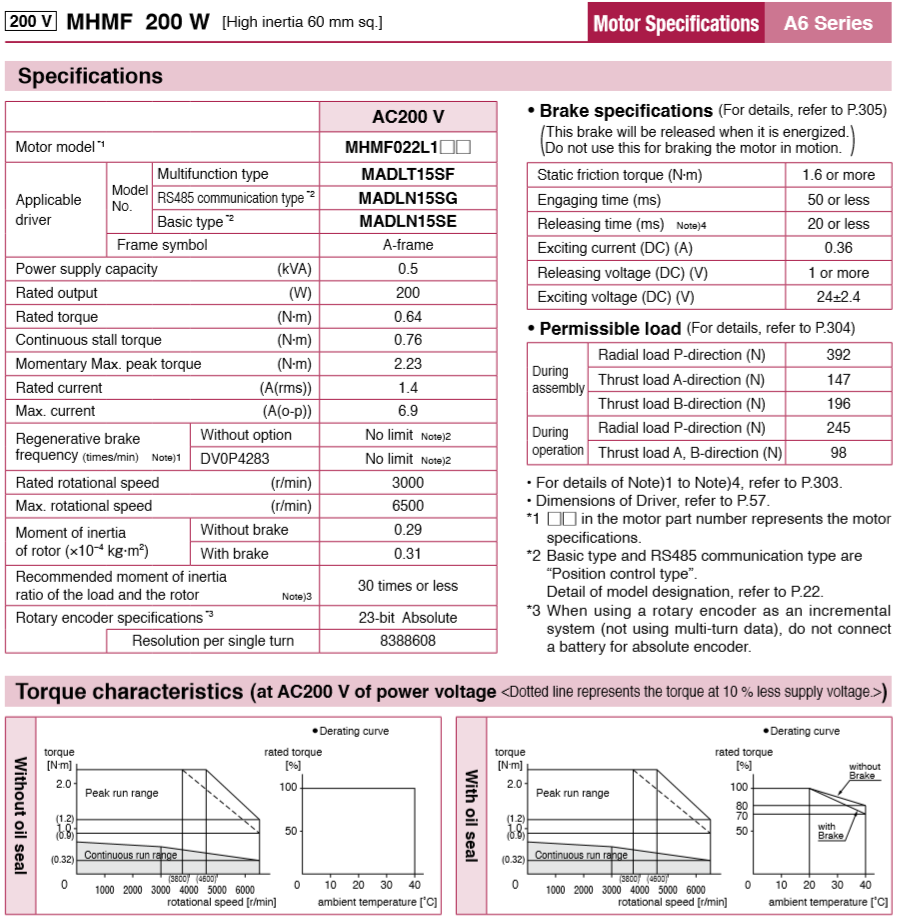

Motor Specifications:
Max. speed: 6000 r/min
Rated speed: 3000 r/min
Rated output: 200 W
Rated torque: 0.64 Nm
Max. current: 6.9 A
Rated current: 1.4 A
Encoder: 23-bit absolute (8388608 pulse)Holding brake: without
IP65: Leadwire type
IP67: Connector type

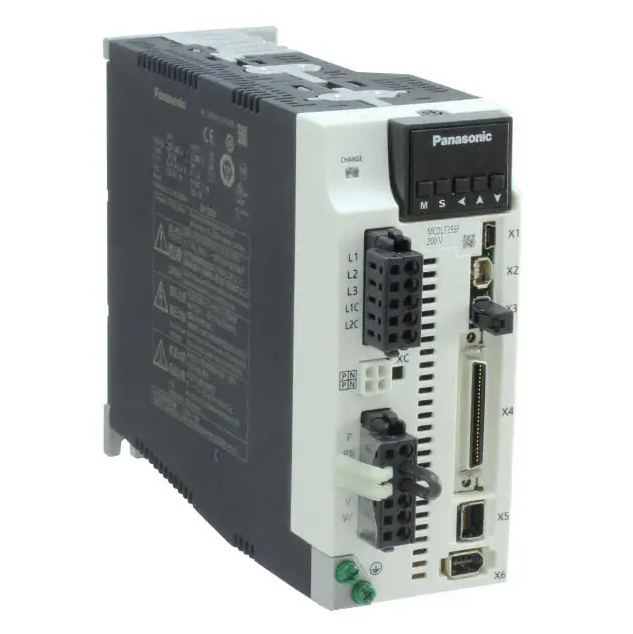

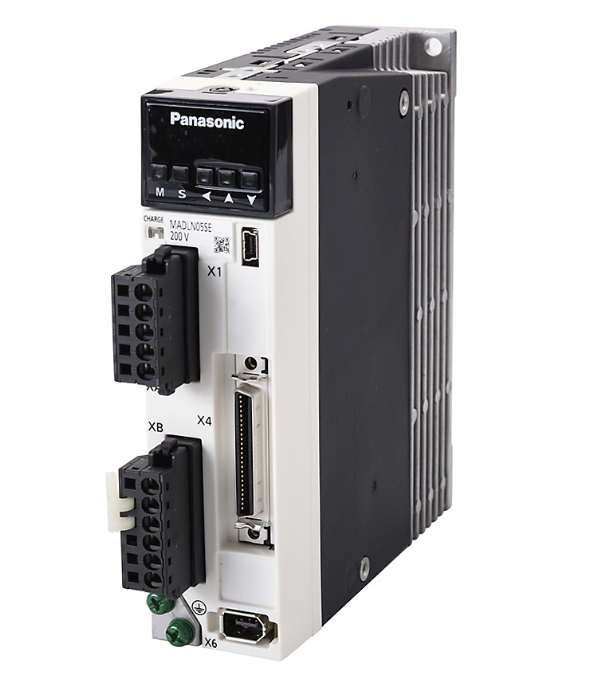

Applicable Driver:
1) Multifunction Type: MADLT15SF 2) Basic Type: MADLN15SE
