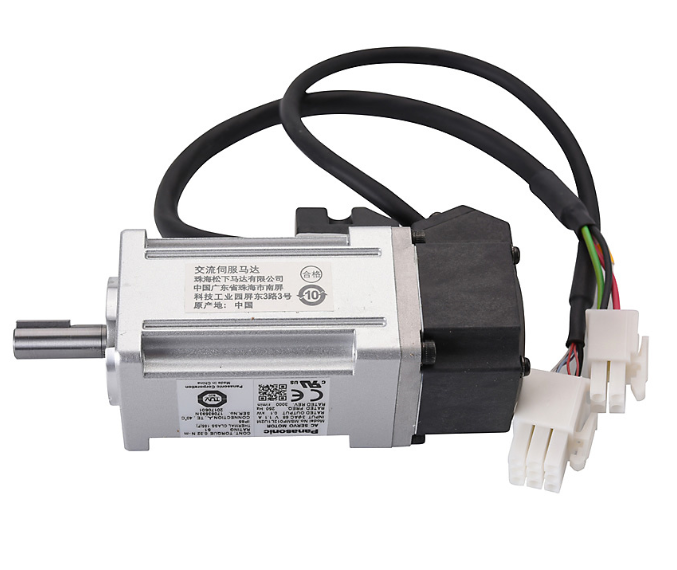

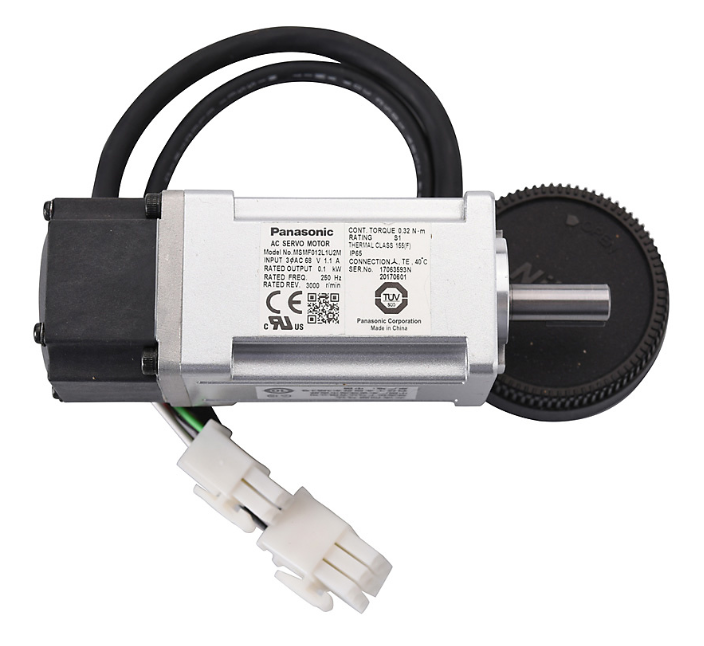

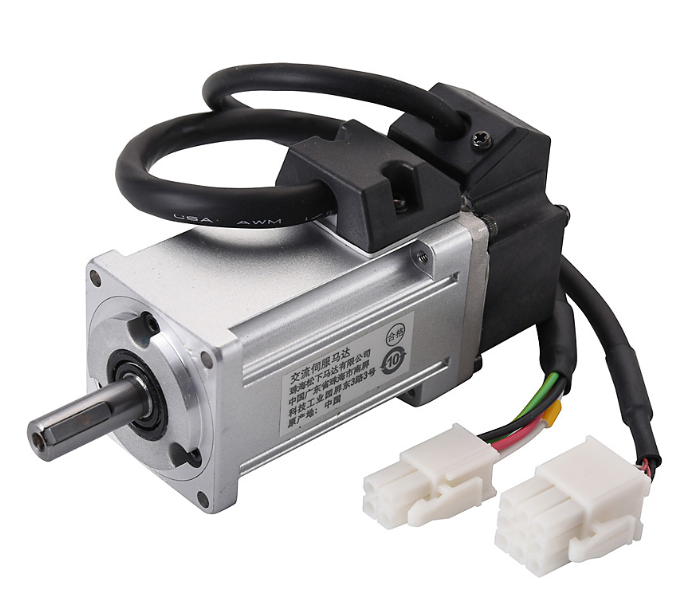

Panasonic: AC Servo Motors MINAS A6 Series MSMF042L1U2M - Low Inertia, 400W
Panasonic: AC Servo Motors MINAS A6 Series MSMF042L1U2M

Alternate View



Price: (Members Only)

Quantity in Stock:3

Order #: MSMF042L1U2M
Qty:

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MSMF042L1U2M - Low Inertia, 400W

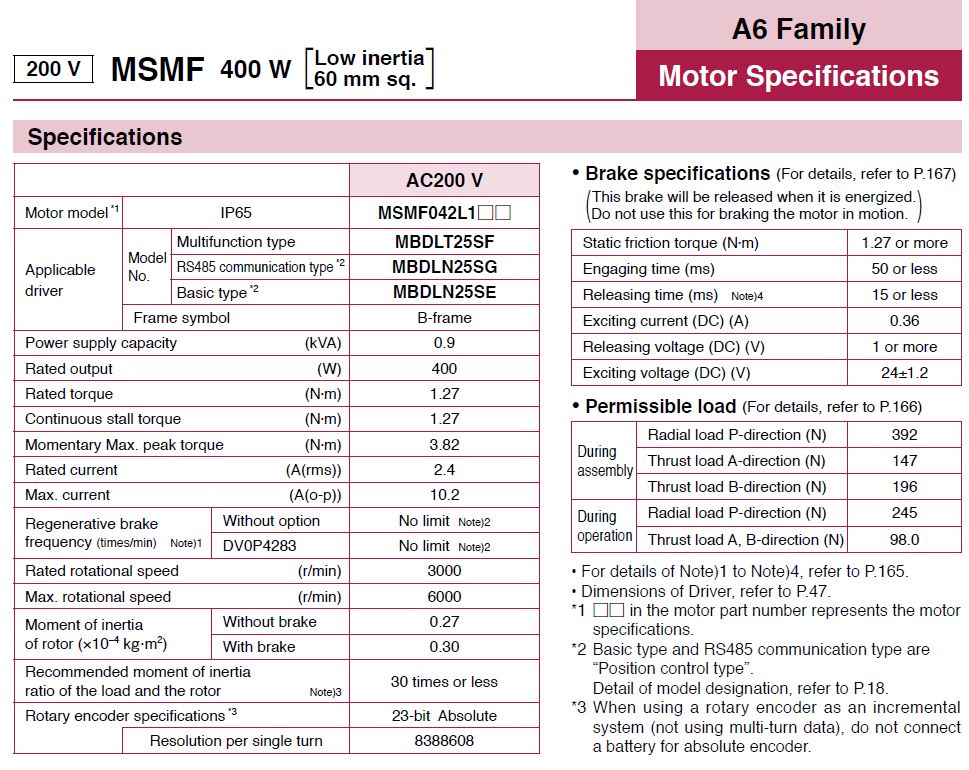

Motor Specifications:


Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 400 W

Rated torque: 1.27 Nm

Max. current: 10.2 A

Rated current: 2.4 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP65: Leadwire type

IP67: Connector type


Applicable Driver:

1) Multifunction Type: MBDLT25SF

2) Basic Type: MBDLN25SE
