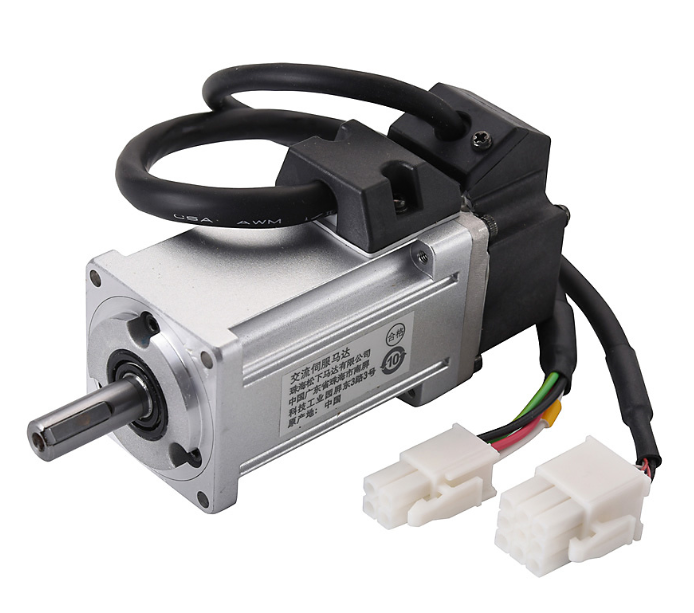

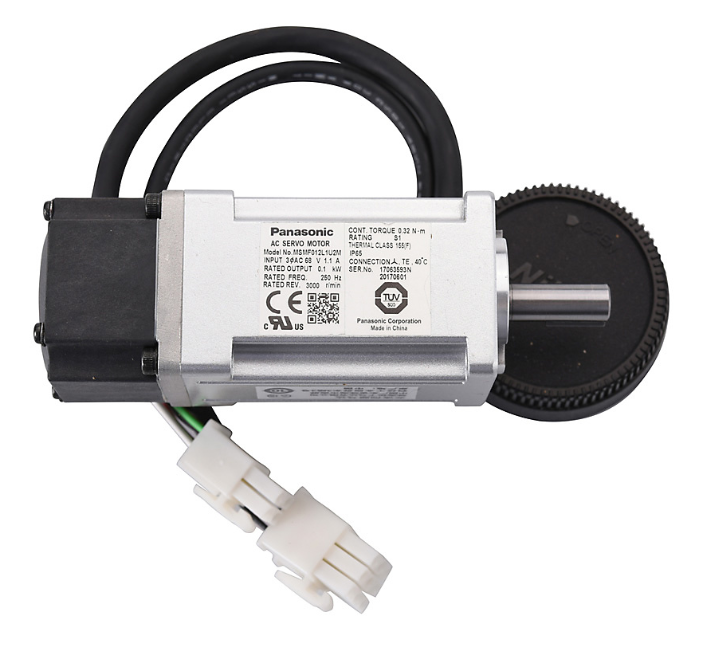

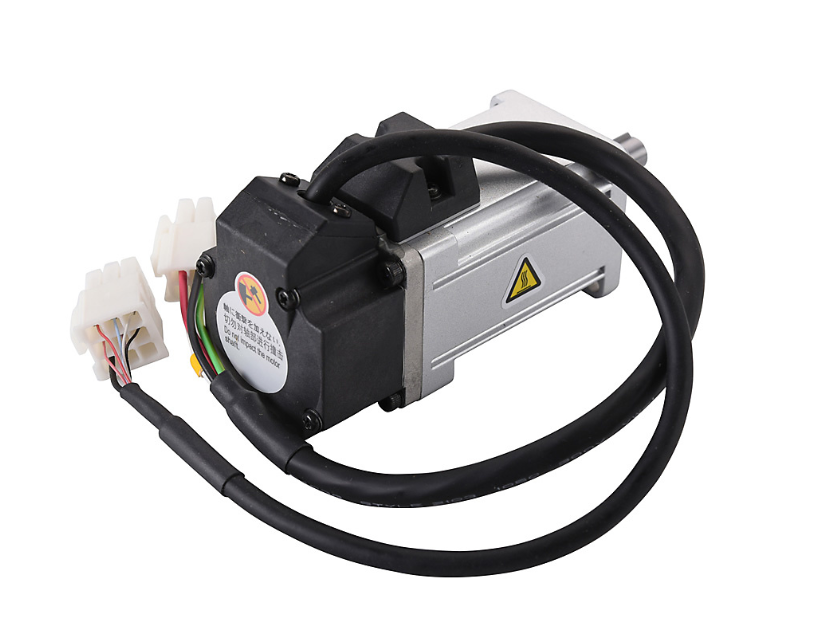

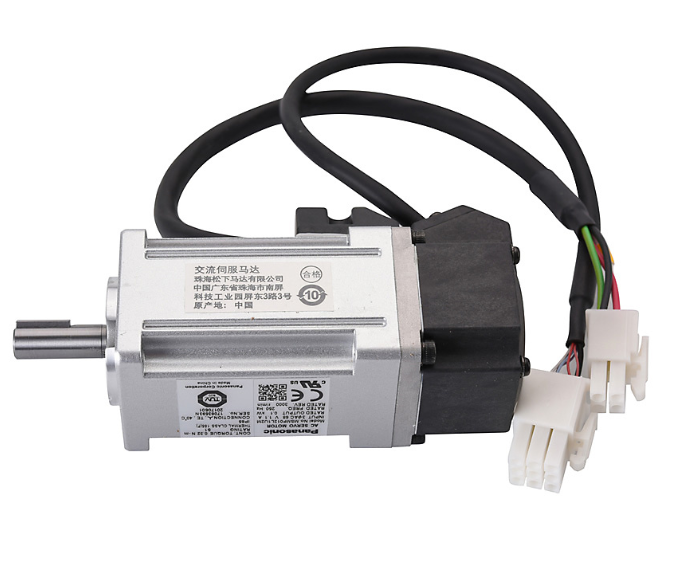

Panasonic: AC Servo Motors MINAS A6 Series MSMF082L1V2M - Low Inertia, 750W
Panasonic: AC Servo Motors MINAS A6 Series MSMF082L1V2M

Alternate View



Price: (Members Only)


Availability: 1-3 weeks lead time
Order #: MSMF082L1V2M
Qty:

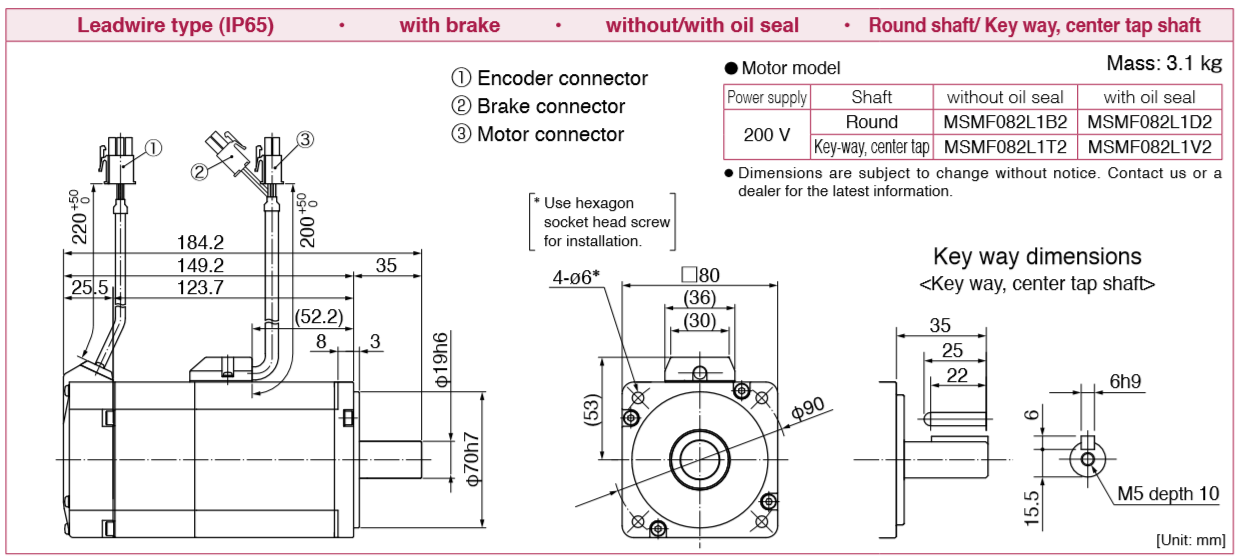

Description Ordering Information Specifications and Drawings


Panasonic: AC Servo Motors MINAS A6 Series MSMF082L1V2M - Low Inertia, 750W


Motor Specifications:


Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 750 W

Rated torque: 2.39 Nm

Max. current: 17.4 A

Rated current: 4.1 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: without

IP65: Leadwire type

IP67: Connector type


Applicable Driver:

1) Multifunction Type: MCDLT35SF

2) Basic Type: MCDLN35SE
