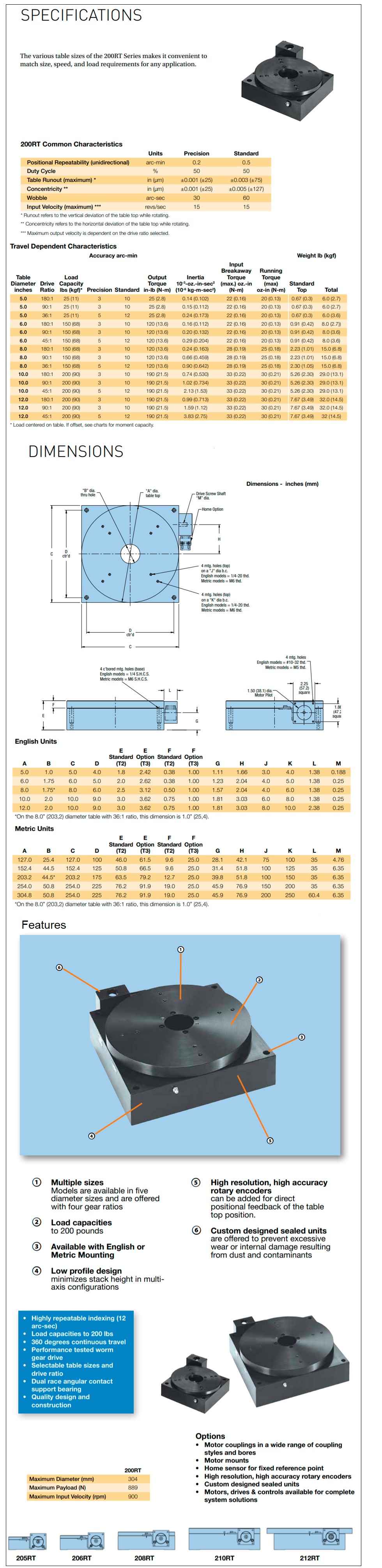

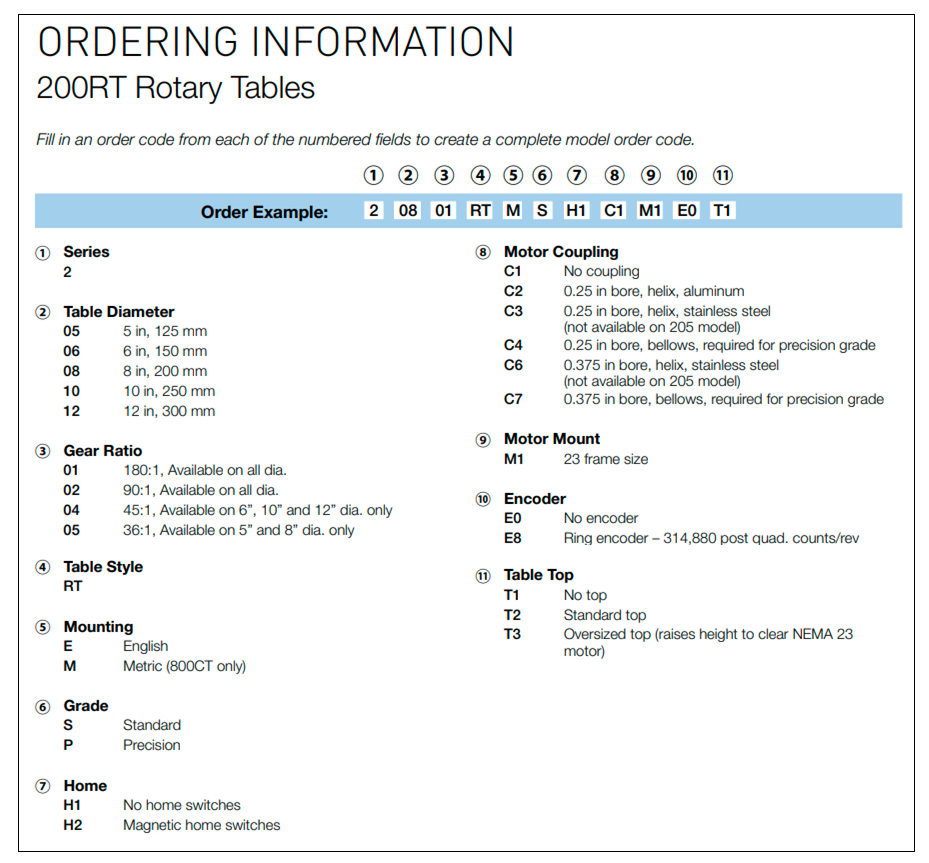

Description Ordering Information Specifications and Drawings


Parker: 200RT Series Rotary Tables

Precise Rotary Positioning and Indexing

The 200RT Series Rotary Tables are designed for precise motor-driven rotary positioning and indexing. These tables are designed to function independently or in conjunction with linear tables used in the high precision and precision automation applications.

Their low profile design minimizes stack height in multi-axis configurations and enables them to fit in many places where other motorized rotary devices cannot. Models are available in 5, 6, 8, 10, or 12 inch diameters and are offered with four gear ratios making it convenient to match size, speed, and load requirements. They can be selected in either English or Metric mounting.

They are found in virtually all industries where intermittent part indexing, part scanning, skew adjustment, or precise angular alignment is required. At the heart of these tables is a rugged main support bearing which is comprised of two preloaded angular contact bearing races. It is designed for high load capacity and smooth, flat rotary motion. The drive is a precision worm gear assembly which is preloaded to remove backlash. The top and base are constructed of high quality aluminium with an attractive black anodized finish. The top and bottom mounting surfaces are precision ground to assure flatness.

Features

Highly repeatable indexing (12 arc sec.)

Load capacities to 100 lbs.

360 degrees continuous travel

Performance tested worm gear drive

Slectable table sizes and drive ratio

Dual race angular contact support bearing
