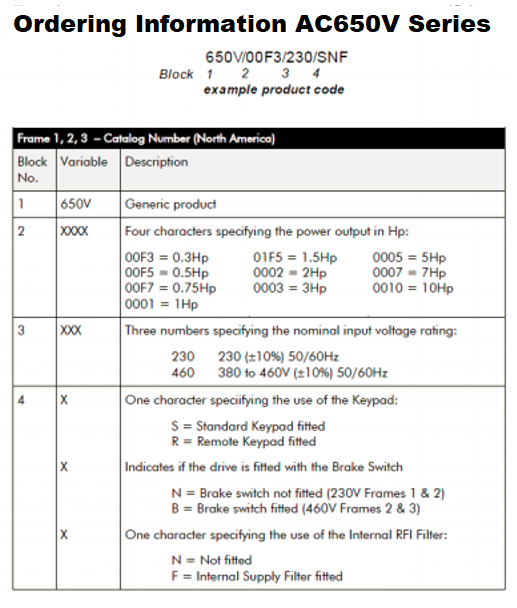

Description Ordering Information Specifications and Drawings


Parker: AC Drives (AC650V Series)

Parker offers a full range of drives including stepper, compact and high performance servo, AC variable speed, high current output DC and panel mounted drives. Parker industry leading drives include Sensorless, Vector and Microstepping options. Parker drives are suitable for speed, torque or position control and are available in power ranges from fractional to over 2,000 hp. Parker also offers inverters for renewable energy applications that convert DC power to AC electricity and deliver power to the grid, allowing hybrid vehicles and mobile equipment that convert regenerated power to battery storage to reduce fuel consumption and emissions.


AC Variable Frequency Drives, HP Rated - AC650V Series

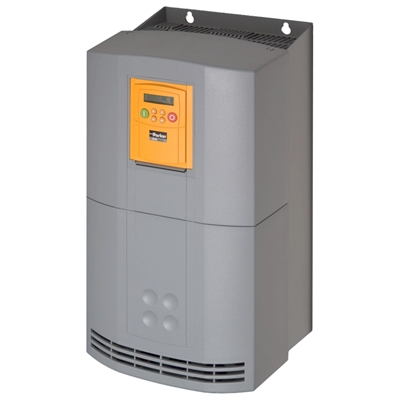

The AC650V is a programmable sensorless vector drive designed to provide improved motor control of induction motors up to 150HP. The drive comes with built in value added application macros that make for quick setup of frequently encountered applications


The AC650V expands upon the simple, no-fuss philosophy of the AC650 and provides reliable, robust motor speed control from 0.3 to 150 HP (0.25kW to 110kW). With the addition of sensorless flux vector technology, the AC650V allows improved motor speed control at lower speeds, better speed regulation of variable loads and higher starting torques for high inertia systems. The variable torque configuration option on frames C-F makes the AC650V ideally suited to energy saving in pump and fan applications.


Features and Advantages

The AC650V offers the same high level of specification as the AC650 and also includes:

  • High torque sensorless vector control mode for advanced motor control

  • Selectable constant torque or (higher) variable torque rating for centrifugal pump and fan applications allowing optimum inverter sizing to suit the application

  • Fully configurable with graphical software tools such as DSE Lite

  • Additional user configurable I/O points offering increased control capabilities

  • Additional PROFIBUS communications options for integration into PLC systems

  • Wall and panel mounting options above 10HP

  • Extended power range to 150HP makes the AC650V suited to a wide variety of uses.


Standards

The AC650V Series AC drives listed on this page meet the following standards when installed in accordance with the relevant product manual:

  • CE Marked to EN50178 (Safety, Low Voltage Directive)

  • CE Marked to EN61800-3 (EMC Directive)

  • UL listed to US Standard UL508C

  • cUL listed to Canadian Standard C22.2 #14.


Technical Specifications


Power Supply:

  • Single Phase Units: 220-240 Vac +/- 10 %, 50-60 Hz +/- 5%

  • Three Phase Units: 380-460 Vac +/- 10 %, 50-60 Hz +/- 5%


Environment:

  • 0-40°C (derate to 50°C)

  • Up to 1000m ASL (derate 1% per 100m to 2000m maximum)


Protection:

  • IP20


Overload:

  • Constant torque rating: 150% for 30 seconds

  • Variable torque rating (pumps and fans): 110% for 30 seconds


Output Frequency:

  • 0-120Hz


Inputs/Outputs:

  • Analog Inputs 2; Speed Control

  • 0-10V, 0-10V/4-20mA

  • Analog Output 1; User configurable output frequency/load 0-10V

  • Digital Inputs 5; User configurable Start/Stop/Direction/pre-set speeds (8)

  • Digital Inputs/Outputs 2; User configurable as inputs or outputs


Digital Relay Output:

  • Relay output 4A @ 240V

  • All digital outputs configurable for: at (not at) speed/at (above) minimum speed/running (stopped)/health (tripped)/above (below) pre-set load

  • Motor Thermistor Input


Power Supply Outputs:

  • 24 VDC (50mA) - Digital I/O Supply

  • 10 VDC (10mA) - Analog reference supply


Communications Options:

  • RS485/RS232

  • Profibus


Performance Characteristics:

  • Output Rating (HP): 0.3 - 150HP

  • Input Voltage: 1*230VAC | 3*230VAC | 3*380-460VAC

  • Operating Control Modes: V/Hz | Sensorless Vector

  • Communication Interface: RS232 / RS485 | Profibus

  • Certificates: CE (EMC & LVD) | UL Listed | cUL Listed

  • Operating Temperature (C): 0-40C (derate up to 50C max)

  • Operating Temperature (F): 32-104F (derate up to 122F max)

  • Operating Altitude: Up to 1000m ASL (derate > 1000m)

  • Overload Ratings: Heavy Duty Rating (Constant Torque) : 150% for 60s | Normal Duty Rating (Variable Torque - pumps and fans) : 110% for 60s

Model No.: 650V/0001/230/RNN, 650V/0001/460/RBN, 650V/0002/230/RNN, 650V/0002/460/RBN, 650V/0003/230/RBN, 650V/0003/460/RBN, 650V/0005/230/RBN, 650V/0005/460/RBN, 650V/0007/230/1BN, 650V/0007/460/RBN, 650V/0010/230/1BN, 650V/0015/230/1BN, 650V/0020/230/1BN, 650V/0025/230/1BN, 650V/0030/230/1BN, 650V/0040/230/CBN, 650V/0050/230/CBN, 650V/0060/230/CBN, 650V/00F3/230/RNN, 650V/00F5/230/RNN, 650V/00F5/460/RBN, 650V/00F7/230/RNN, 650V/00F7/460/RBN

Downloads:

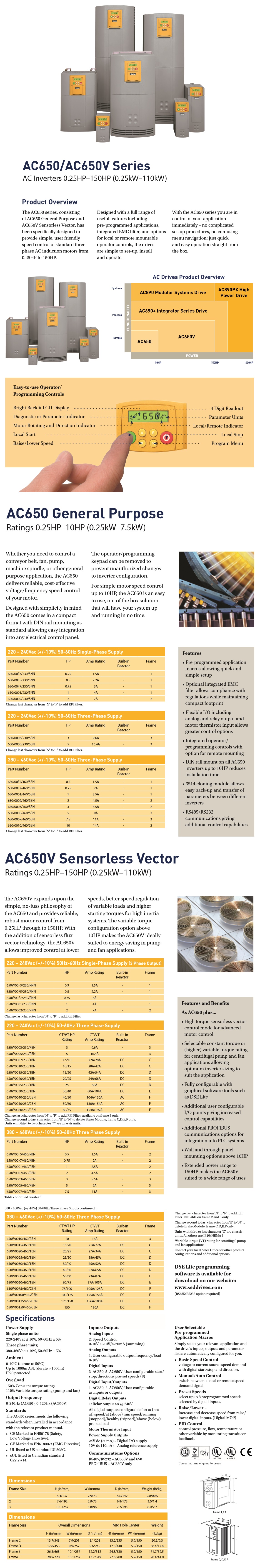

AC650 & AC650V Series General Purpose AC Drive Catalog
