Parker: AC Drives (AC890PX Series)

Parker offers a full range of drives including stepper, compact and high performance servo, AC variable speed, high current output DC and panel mounted drives. Parker industry leading drives include Sensorless, Vector and Microstepping options. Parker drives are suitable for speed, torque or position control and are available in power ranges from fractional to over 2,000 hp. Parker also offers inverters for renewable energy applications that convert DC power to AC electricity and deliver power to the grid, allowing hybrid vehicles and mobile equipment that convert regenerated power to battery storage to reduce fuel consumption and emissions.


AC Variable Frequency Drives, HP Rated - AC890PX Series

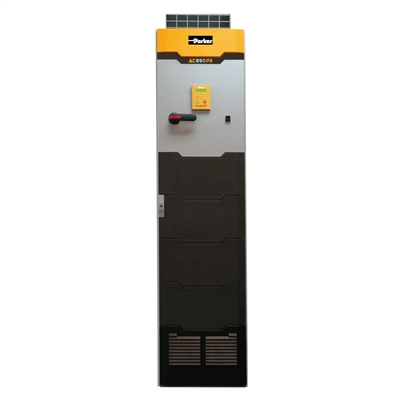

The AC890PX is a high power industrial variable frequency drive for AC motors with power ratings of 150-600HP. The packaged VFD includes fuses, disconnect, line reactor, and braking all that is necessary where a standalone enclosed drive is required.


The AC890PX is a high power variable speed drive for AC motors with power ratings from 150 to
600HP (100 to 400kW). It is a standalone unit provided with all of the standard equipment necessary for new or retrofit applications where a complete enclosed VFD is required. Configuration and start-up of the AC890PX can be performed using the standard operator keypad or from your laptop using DSELite configuration software. The modular design, featuring plug-in inverter phase modules, makes servicing the AC890PX quick and easy.


Features


The AC890PX is particularly suited to the following applications:

  • Energy-saving pump and fan applications

  • Extruders

  • Mixers

  • Centrifuges

  • Hoists and cranes

  • Hydraulic power units

  • Engine dynamometers


Advantages

  • Plug-in phase modules for ease of service

  • Dynamic braking included

  • AC disconnect and line fuses included

  • 3% line reactor included

  • Suitable for use with all types of AC motor

  • Operation with or without feedback

  • Compatible with a wide range of feedback options

  • Conforms to international standards

  • Ultra-compact drive

  • Low-maintenance ensures maximum machine availability and productivity

  • Total flexibility for easy factory integration

  • Active Front-End (AFE) version - energy regeneration with low harmonic distortion


Safe Torque Off - STO

The AC890PX features Safe Torque Off functionality as standard, offering users protection against unexpected motor start-up in accordance with ISO/EN13849-1 PL-e or SIL3. Two independent STO control channels are implemented in hardware. A fault in one control channel will not affect the other channel’s ability to prevent the drive from starting, i.e. the STO function of the is tolerant to any single fault. It may not be tolerant to an accumulation of faults. This is in keeping with its declared safety ratings. If one or both STO control inputs is requesting the STO function, the drive will not start, even if for example, the drive’s software malfunctions and tries to cause the motor to turn. The STO function is implemented in hardware; it overrides all software activities. The only software involvement is to report STO status to the user via an MMI, serial communications link or user terminal on the AC890 control board as defined by the drive configuration.


Standards

  • Pollution index - Level II (non-conductive pollution, except for temporary condensation)

  • Low voltage directive 73/23/EEC with amendment 93/68/EEC, article 13 and annex III, EN50178 (1998)

  • Conforms to EN61800-3 (second environment)

  • Product conforms to UL specifications


Technical Specifications


Overload capacity:

  • Induction motor - standard duty : 110% for 60 sec

  • Induction & servo motor - heavy duty : 150% for 60 sec


Output frequency:

  • 0 - 590 Hz in V/F mode

  • 0 - 350 Hz in Closed loop vector mode

  • 0 - 120 Hz in Sensorless vector mode


Switching frequency:

  • 2 kHz (standard) - Adjustable 4 kHz (derating required, consult factory).

  • Suppression of audible frequencies


Operating temperature:

  • 0°C to 40°C (32°F to 104°F)

  • Maximum 50°C with de-rating


Dynamic braking:

  • Dynamic braking resistor integrated as standard (limited duty cycle)

  • External braking resistor (option)


Enclosure rating:

  • IP 21 / UL Enclosure Type 1 as standard

  • IP 52 or greater available upon demand


EMC:

  • Cabinet provides an attenuation of 15dB to emissions between 30-100 MHz


Humidity:

  • 85% maximum humidity at 40°C, without condensation


Atmosphere:

  • Non flammable, non corrosive, no dust


Climate:

  • Class 3k3, as defined by EN50178 (1998)


Vibrations:

  • Test Fc meeting EN60068-2-6


Performance Characteristics:

  • Output Rating (HP): 150-600HP

  • Input Voltage: 3*380-480VAC | 3*500-690VAC | 320-705VDC (Common Bus)

  • Operating Control Modes: V/Hz | Sensorless Vector | Closed Loop Vector | Active Front End | Speed Control of Permanent Magnet Motor

  • Communication Interface: RS232 / RS485 | CANopen | ControlNet | DeviceNet | Profibus | Profinet | Ethernet TCP / IP

  • Certificates: CE (EMC & LVD) | UL Listed | cUL Listed | Pollution Degree II | Pollution Degree III | Safety SIL3 / Ple

  • Operating Temperature (C): 0-40C (derate up to 50C max)

  • Operating Temperature (F): 32-104F (derate up to 122F max)

  • Operating Altitude: Up to 1000m ASL (derate > 1000m)

  • Overload Ratings: Heavy Duty Rating (Constant Torque) : 150% for 60s | Normal Duty Rating (Variable Torque) : 110% for 60s

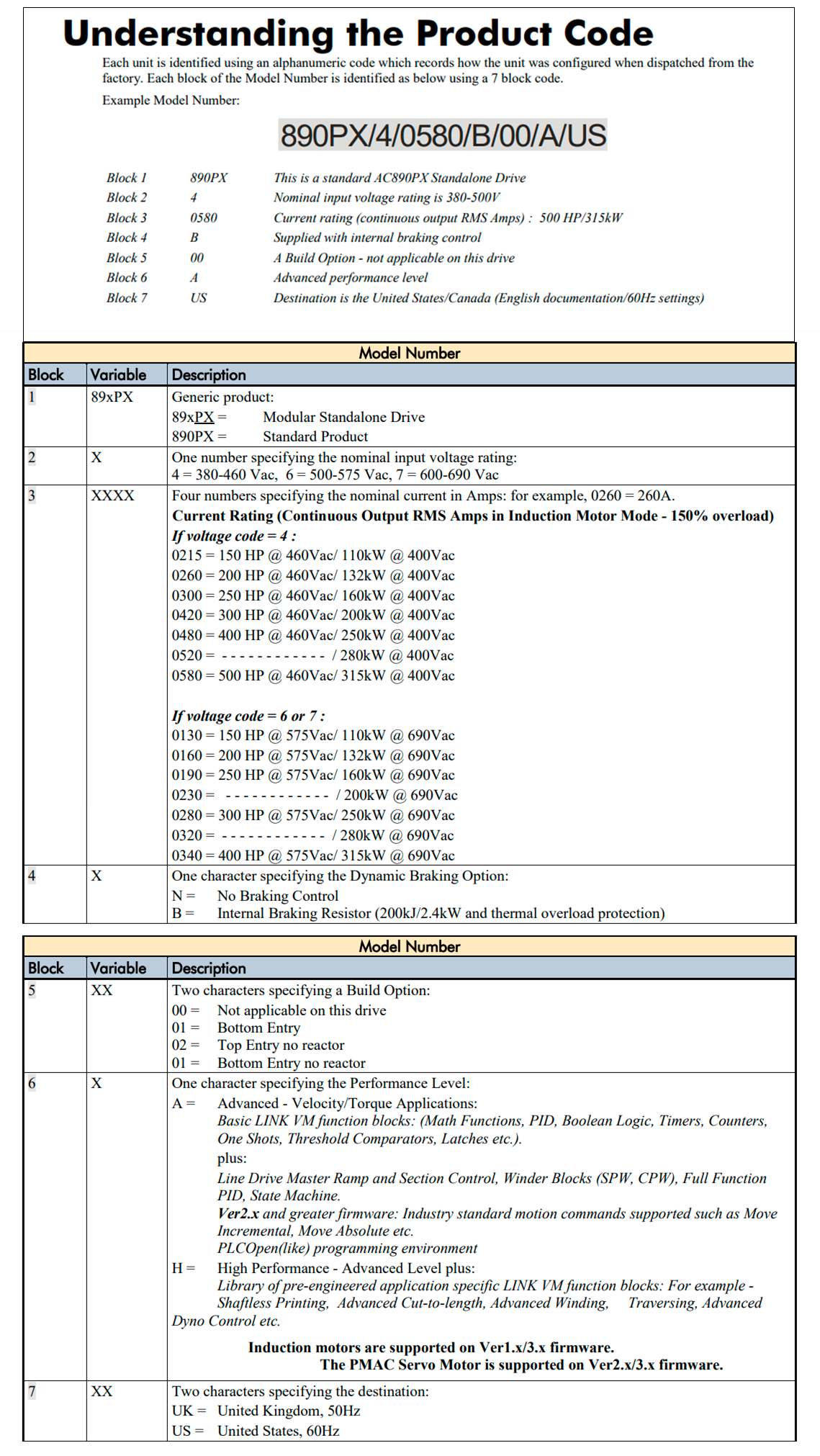

Model No.:
890PX/4/0215/B/00/A, 890PX/4/0260/B/00/A, 890PX/4/0300/B/00/A, 890PX/4/0420/B/00/A, 890PX/4/0480/B/00/A, 890PX/4/0520/B/00/A, 890PX/4/0580/B/00/A, 890PX/6/0130/B/00/A, 890PX/6/0160/B/00/A, 890PX/6/0190/B/00/A, 890PX/6/0280/B/00/A, 890PX/6/0340/B/00/A, 890PX/7/0130/B/00/A, 890PX/7/0160/B/00/A, 890PX/7/0190/B/00/A, 890PX/7/0230/B/00/A, 890PX/7/0280/B/00/A, 890PX/7/0320/B/00/A, 890PX/7/0340/B/00/A



Downloads:

Product Manual AC890PX
AC890 VFD Cable Winding
Eplan Macros-AC890PX
