Parker: Belt Driven Linear Actuator (OSPE..B Series)OSPE25-00000-00000-P00000
(Actuators for Point-to-Point Applications)
The field-proven OSPE..B design is the industry standard for the widest array of point-to-point linear traverse applications. Compact size and maximum configurability make the OSPE..B easy to integrate into any machine layout simply and neatly.
To meet rigorous environmental and maximum performance criteria, the OSPE..B Series is optionally available with the PowerSlide and ProLine external bearing which can be installed in any position (top, side or bottom of the actuator) and retrofitted to existing actuators.
Advantages:
Precise path and position control
High-speed operation
Easy installation
Low maintenance
Ideal for precise point-to point applications
Features:
Integrated drive and guidance system
Tandem carriage with second carriage for increased load capabilities
Long available strokes
Complete motor, gearhead and control packages
Diverse range of accessories and mountings
Bi-parting carriages and special options available
Ambient temperature range -30˚C to +80˚C
IP 54 rated
PowerSlide
Designed for harsh environments
Speed up to 3 m/s
Hardened steel guide rail
Carriage with steel v-wheels
Tough roller cover with wiper and grease access point
ProLine
Designed for high-speed, precise, smooth and quiet operation
Aluminum rail with ground and calibrated steel trucks
Carriage supported by needle bearing rolls
Integrated wipers to keep bearing system clean
Lifetime lubricated bearing system

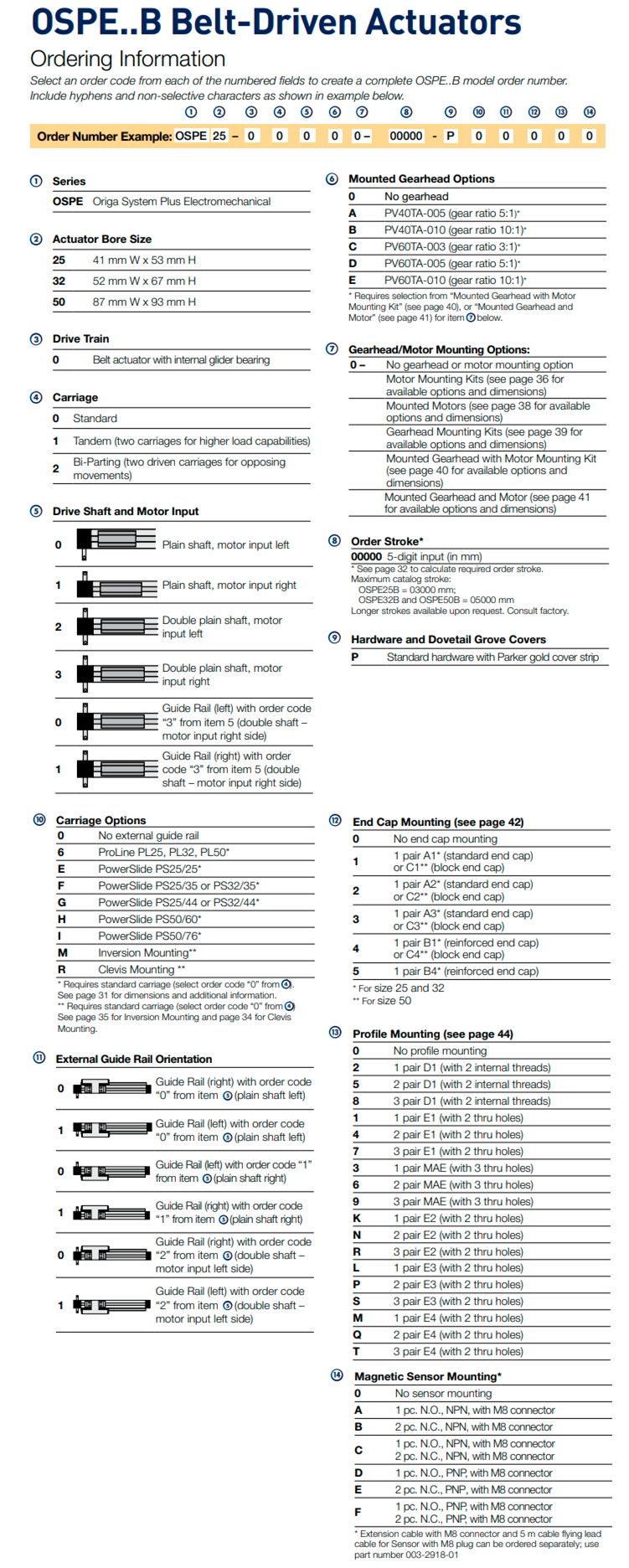

Model No.: OSPE25-00000-00000-P000, OSPE32-00000-00000-P000, OSPE50-00000-00000-P000Downloads:
