Parker Bayside: Stealth PS Advanced Series Gearhead PS40-100-XXXLH
Parker Bayside: Generation II Stealth® Helical Planetary Gearhead PS40-100-XXXLH


Price: (Members Only)

Quantity in Stock:21

Availability: Usually Ships in 2 to 3 Days

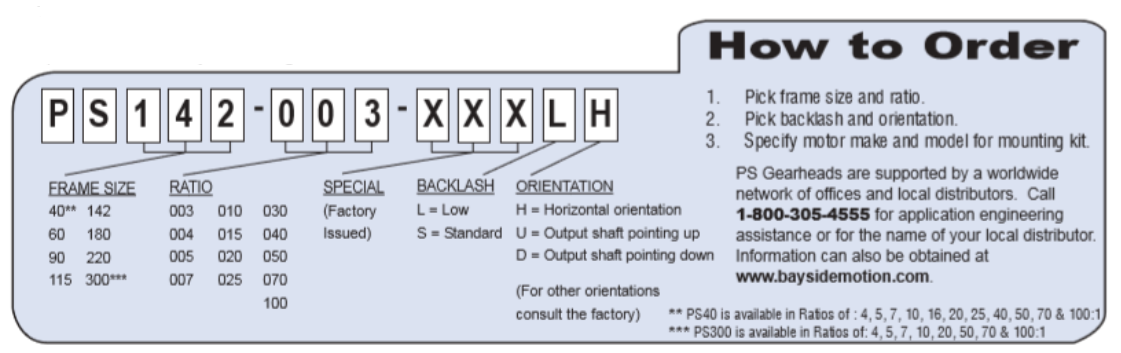

Order #: PS40-100-XXXLH
Qty:

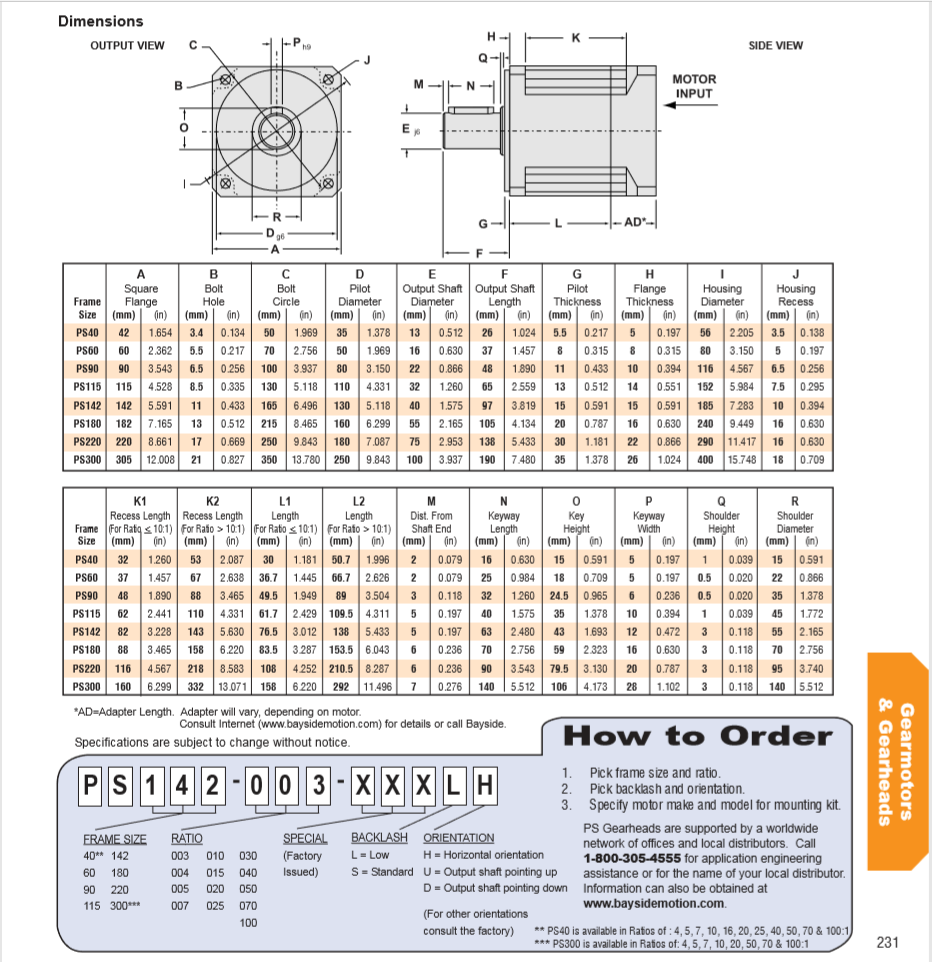

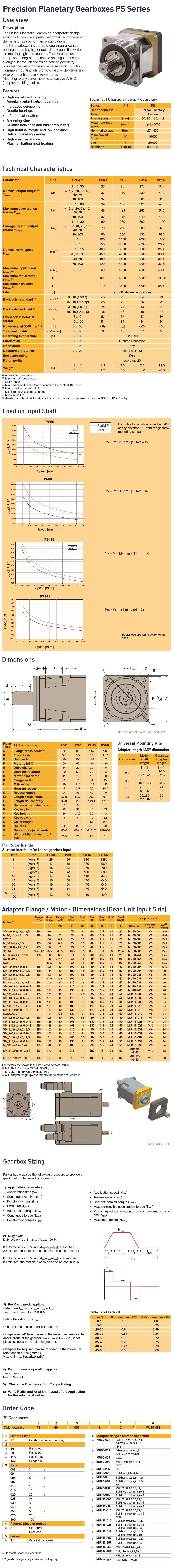

Description Ordering Information Specifications and Drawings

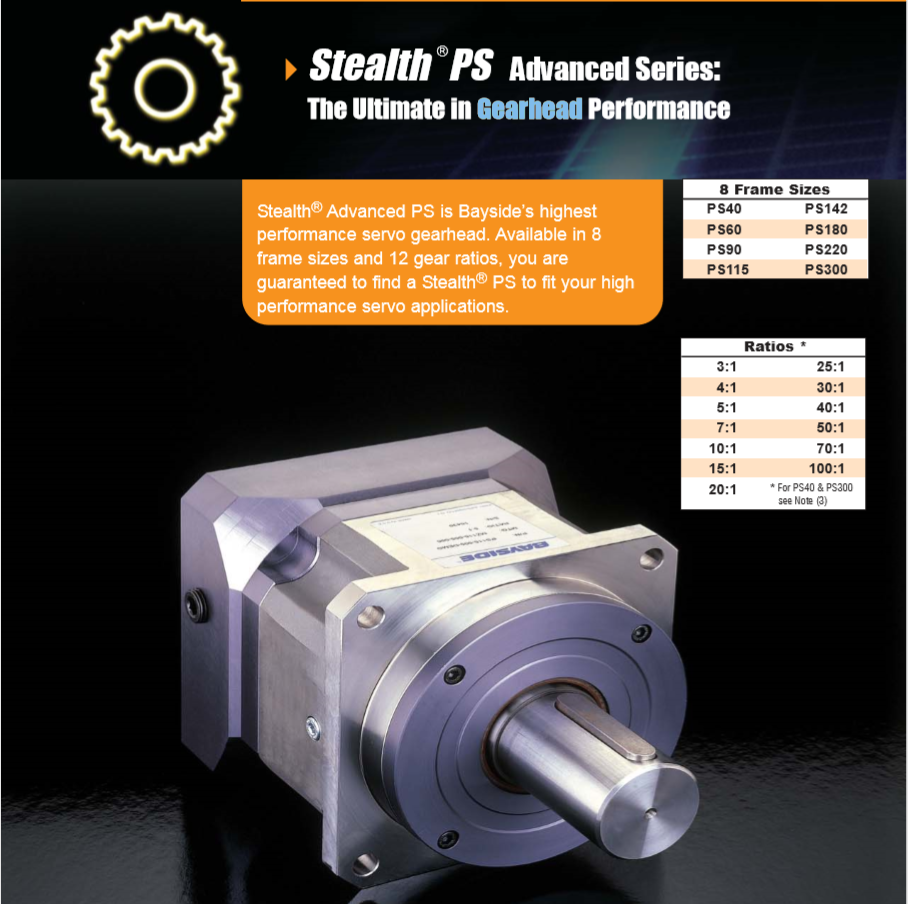

Parker Bayside: Generation II Stealth® PS Advanced Series Helical Planetary Gearhead PS040-100-XXXLH

Our new Generation II Stealth® series provides higher radial load, increased service life and ease of mounting.

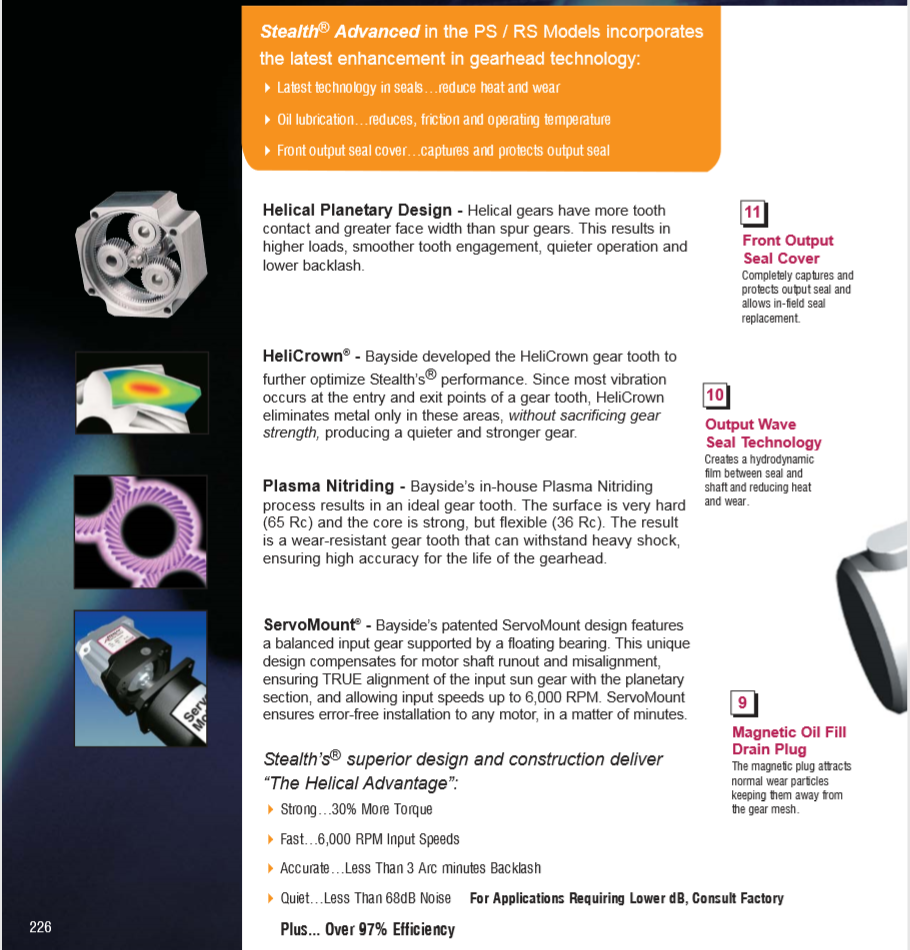

The Generation II Stealth® Helical Planetary Gearheads incorporate design enhancements to provide superior performance for the most demanding high performance applications.

Stealth Generation II incorporates dual angular contact bearings providing higher radial load capacities while maintaining high input speeds. Design enhancements also include full complement needle bearings allowing for increased service life and extended warranties. Internal design changes and optimized gearing geometries allow for one oil fill level for any orientation, resulting in shortened part number designation and simplified order placement.

Universal mounting kits provide common mounting kits across multiple product lines to promote quicker deliveries and ease of mounting to any servo motor. Applications that require either high precision (PS/ RS Series Gearheads) or mid-range precision (PX/RX Series Gearheads) utilize the same mounting kit part numbers within the same frame size.

Mounting to any servo motor is as easy as A-B-C (adapter, bushing, collet).

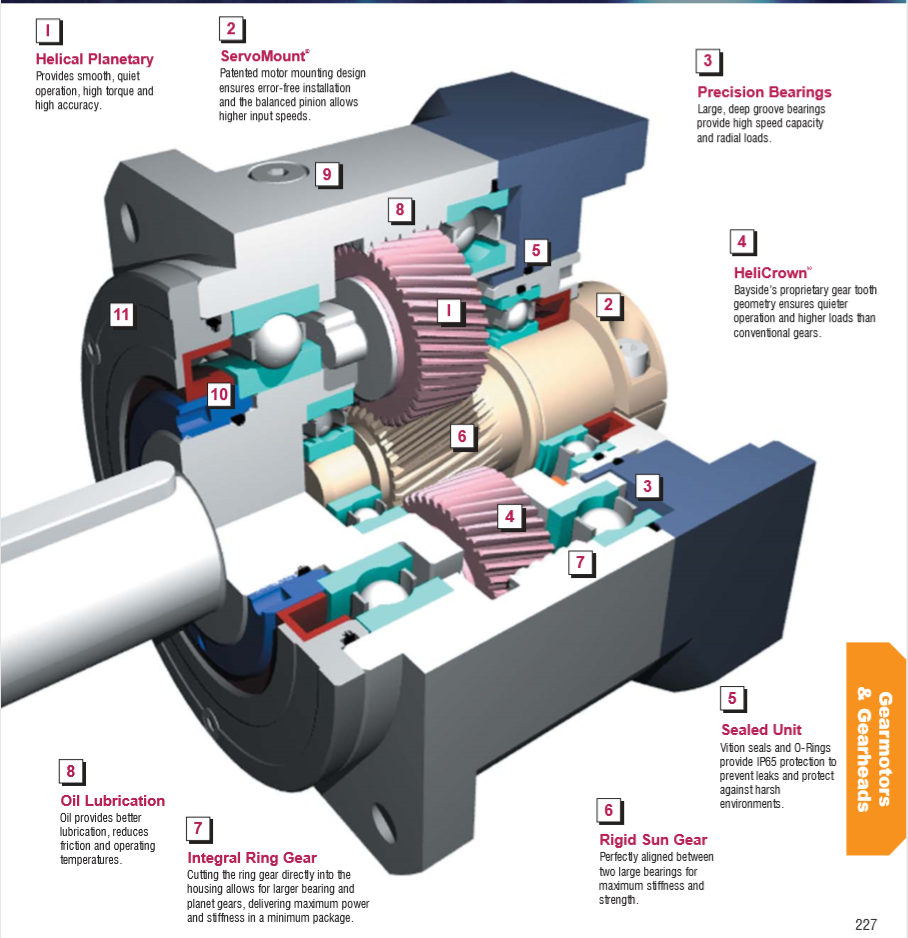

Features & Benefits:

  • Higher radial load capacity: widely spaced angular contact output bearings

  • Increased service life: full complement of planet needle bearings

  • Universal mounting kits: quicker deliveries and easier mounting

  • High torque and low backlash: helical planetary gearing

  • High stiffness: Integral ring gear and rigid sun gear

  • Higher gear wear resistance: plasma nitriding heat treating

  • PX models are optionally available with flange mounting for easy installation. (Contact factory for flange mount availability for RX models.)

  • Strong: 30% more Torque

  • Quiet: Less than 68db Noise

  • Fast: 6,000 RPM Input Speeds

  • Accurate: Less than 3 Arc minutes Backlash

  • Plus: Over 97% Efficiency

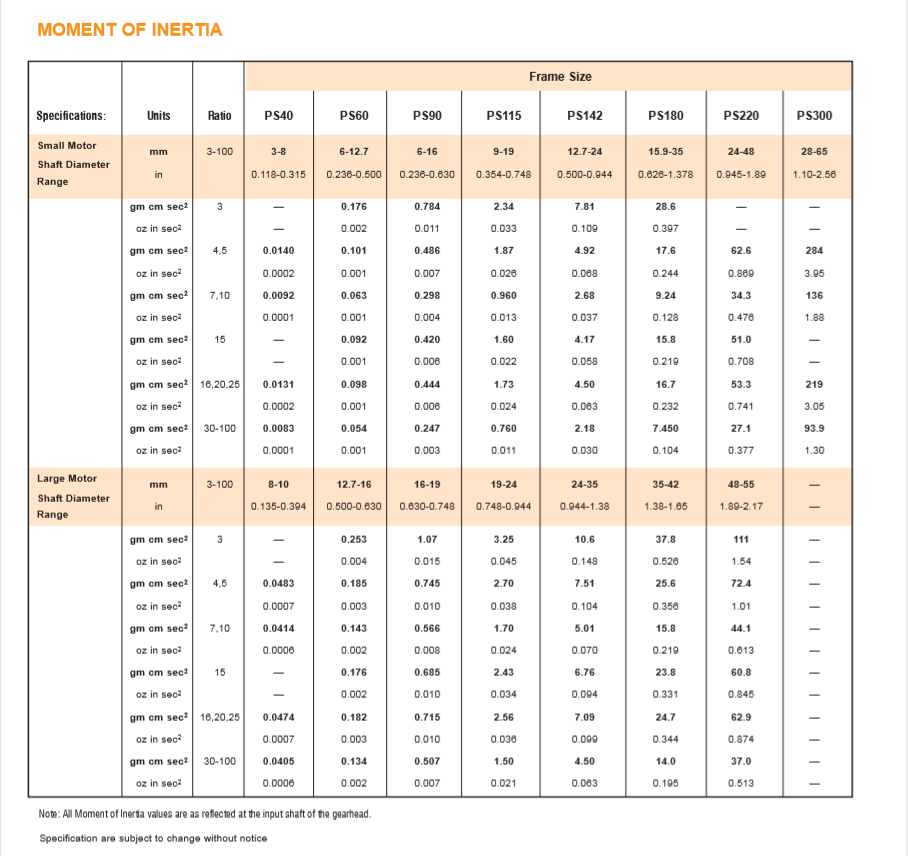

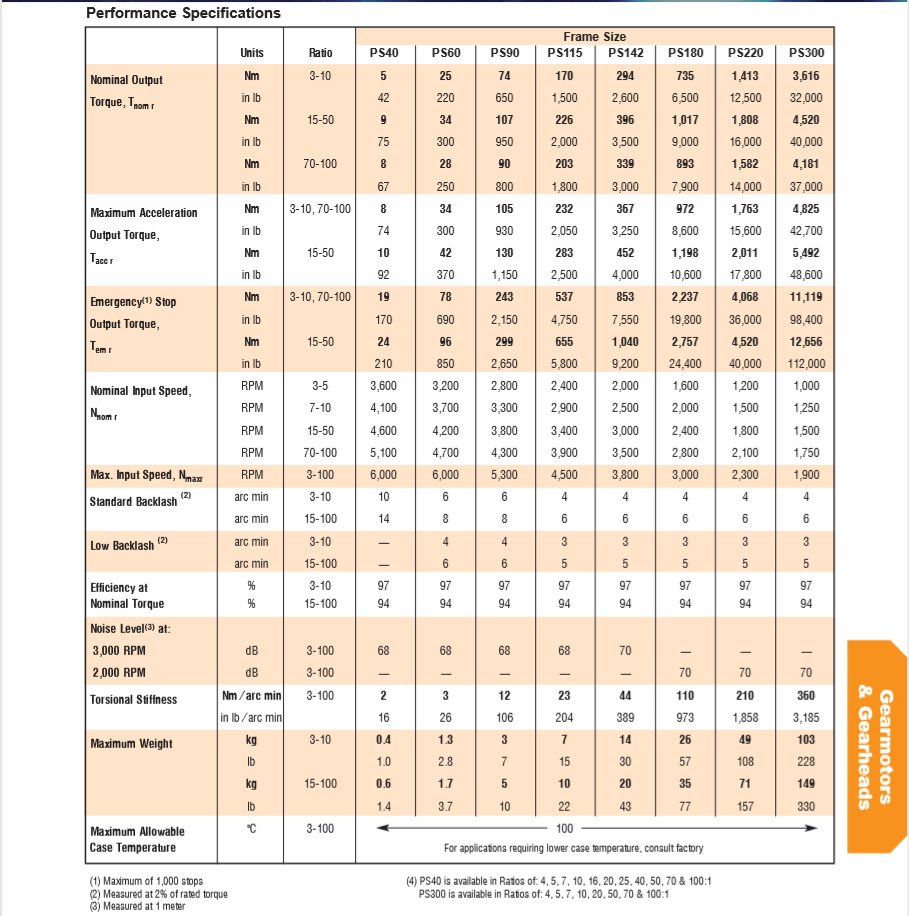

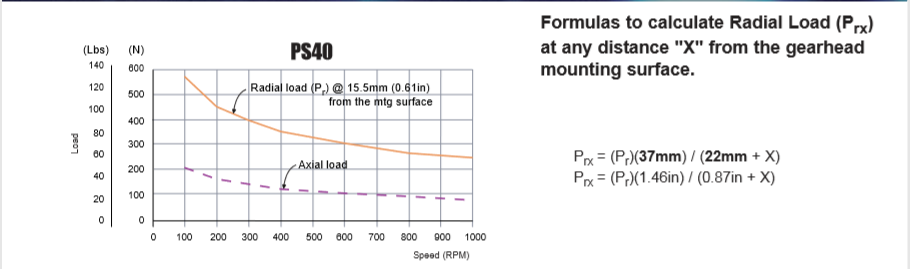

Specifications:
