Parker: Closed Loop Stepper Systems - E Series (eCLD-XXXX)

Parker: Closed Loop Stepper Systems - E Series (eCLD-4DC-PC)

Alternate View

Request for Quantity & Price

Price: (Members Only)

Availability: Subject to availability
Order #: ECLD-XXXX

Stepper Drive ECLD*:

Qty:

Description

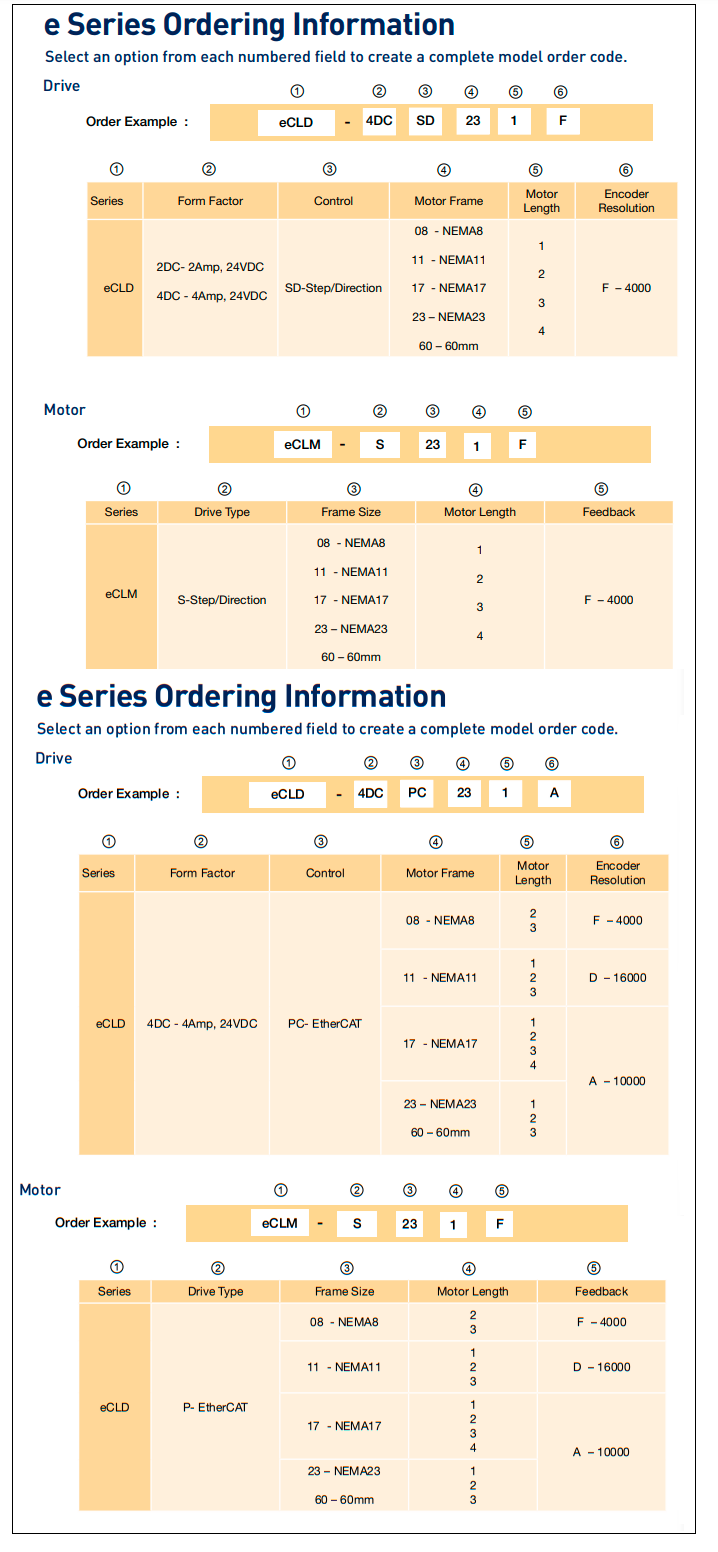

Ordering Information

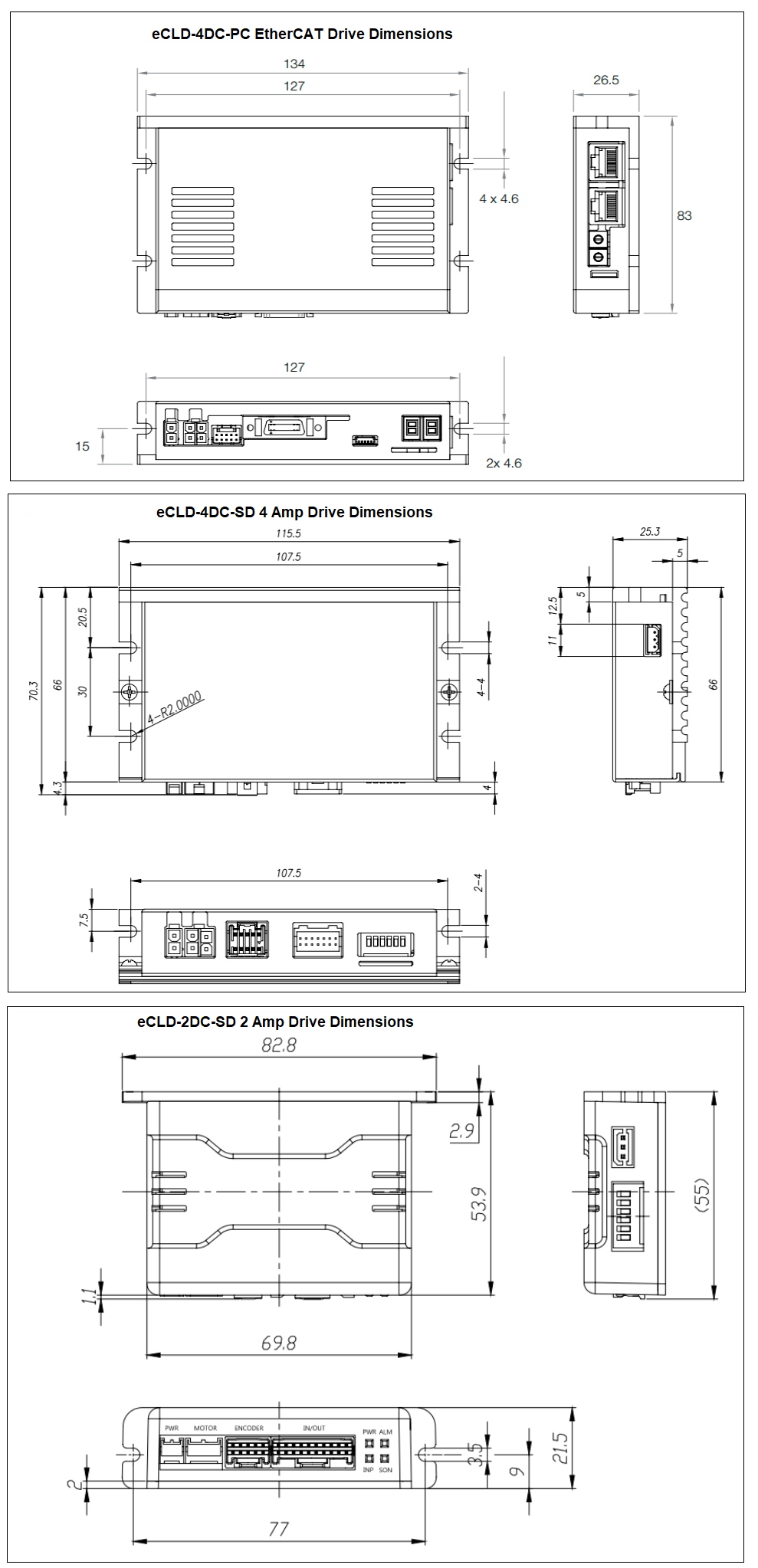

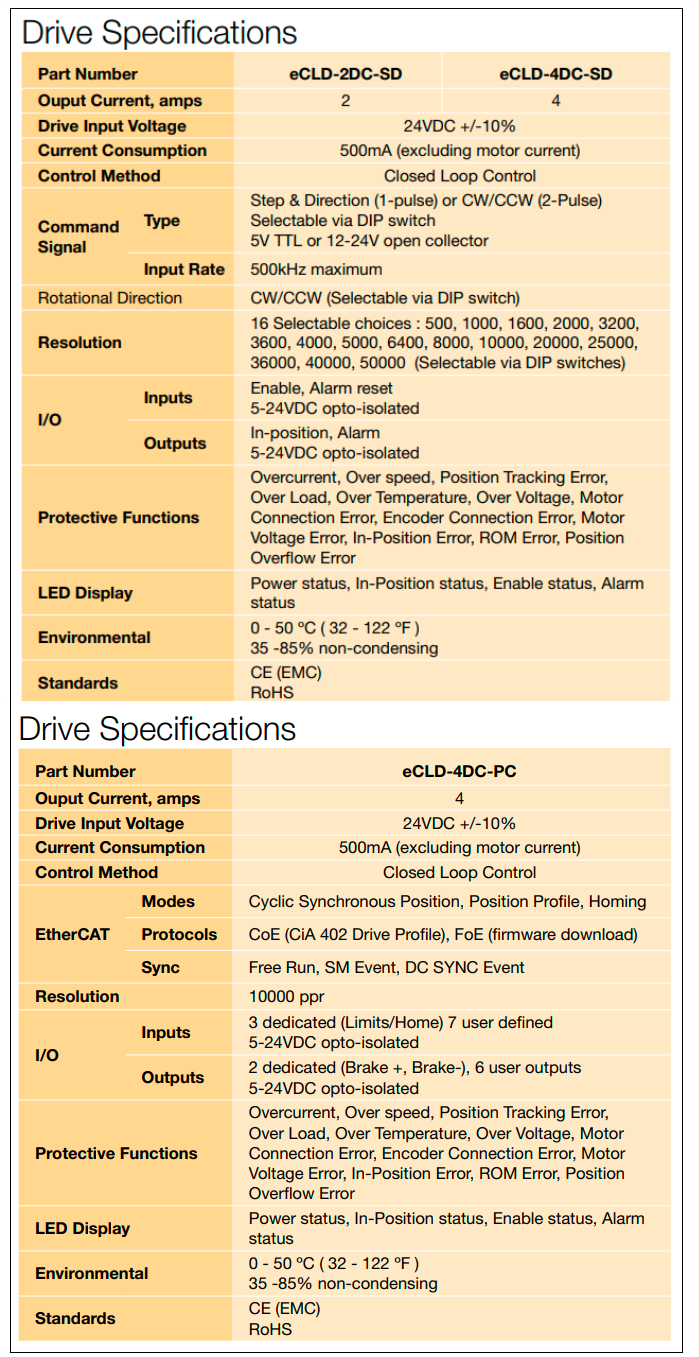

Specifications and Drawings

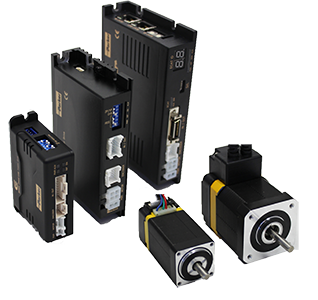

Parker: Closed Loop Stepper Systems - E Series (eCLD-4DC-PC)

The new eCL series introduces simple and precise closed loop control to Parkers micro stepping product platform. The eCL system maintains the inherent advantages of stepper control while eliminating common disadvantages through the addition of an innovative closed loop control algorithm for optimum performance

Available in two driver form factors (4A) and (2A)
24VDC input
Small, precise, high torque stepper motors with connectors

EtherCAT and Step/Direction drive options
All motors include encoders (Nema8, 11, 17, 23)
Selectable resolution up to 50,000 steps/rev.
Closed loop performance without tuning

The eCL system maintains the inherent advantages of stepper control (high torque, stiffness, responsiveness, stability, no dither, simplicity) while eliminating common disadvantages (stalling, energy usage, motor temp, high speed operation, positional accuracy) through the addition of an innovative closed loop control algorithm.

Downloads:

1.EtherCAT Drive Brochure

2.Step Direction Drive Brochure

3.eCL User Manual

4.eCLD_Drive Solid Models
