Parker: Explosion Proof Servo Motors - EX Series

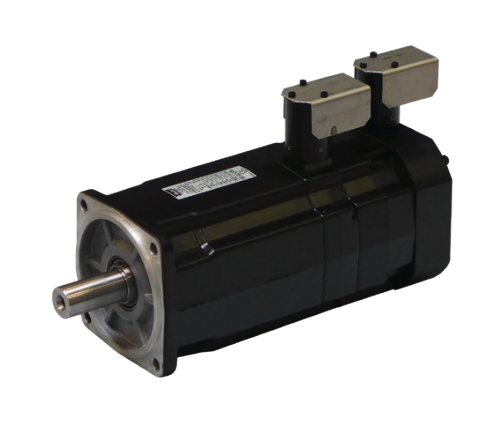

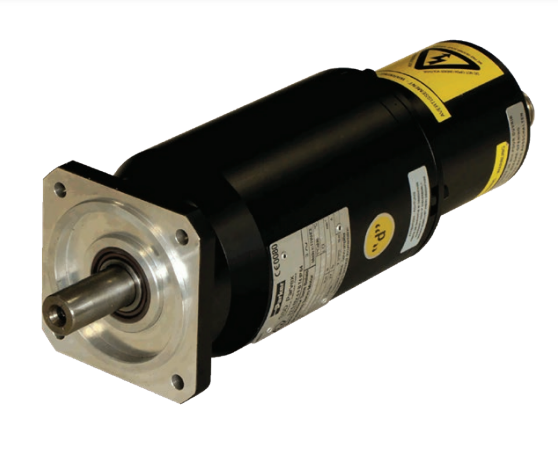

Explosion Proof Motor for Zone 1 - EX Series
Overview
Description
EX series is a range of permanent
magnet servo motor designed for use in zone 1 explosive atmospheres. Featuring
robust explosion-proof housings, EX motors are capable of bearing internal
explosions with no risks of propagation to the neighbouring environment. Two
versions are available, conforming with North American or European safety
standards. EX servomotors are characterized by excellent motion quality, great
acceleration / deceleration capabilities, and high torque output over a wide
speed range. Various winding variants and numerous options are available to
offer maximum flexibility.
EX series motors are designed for use
in explosive atmospheres. Two versions are available that conform to CE/ATEX,
UL and IECEx requirements. EX motors are capable of bearing internal explosions
with no risk of propagation to the outside environment. EX motors are
characterized by excellent motion quality, great acceleration/deceleration
capabilities and high torque output over a wide speed range.
Advantages
• Servo motors with explosion proof
enclosure "d"
• Conforming with CE/ATEX, UL and
IECEx
• For an ambiant temperature at 40°c
or 60°C
• For gas and dust explosive
atmospheres
• High precision
• High motion quality
• High dynamic performance
• Low cogging
• Compactness and robustness
• Maintenance free
• High power density (6 kW in a 155
square frame)
• Compatible with all popular drives
Applications
• Printing machinery
• Packaging, filling machines
• Painting robots
• Coating machines
• Chemical, petro-chemical and
pharmaceutical industries
• Robot applications
• Special machines
• Cleaning applications
• Actuator for valve in Energy
applications
• Waste processing plants
