Parker: Explosion Proof Servo Motors - EY Series

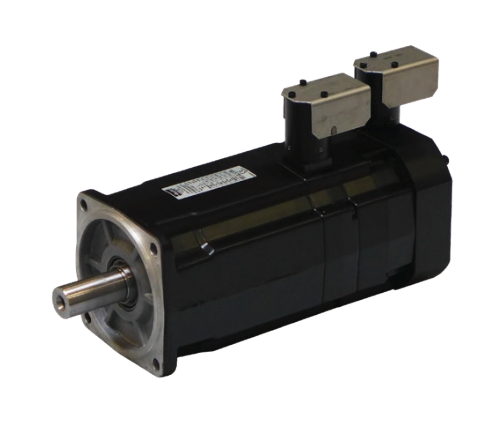

Explosion Proof Motor for Zone 2 - EY Series

Overview

Description

The EY series is a range of permanent magnet explosion-proof brushless servo motors designed for use in explosive atmospheres in zone 2 for gas and dust at 40°C or 60°C ambient temperature. The EY series of servo motors are characterized by excellent motion quality, dynamic acceleration/deceleration capabilities and high torque output over a wide speed range. Various winding variants and numerous options are available to offer maximum flexibility. This range is in accordance with the European (CE) and International safety standards.

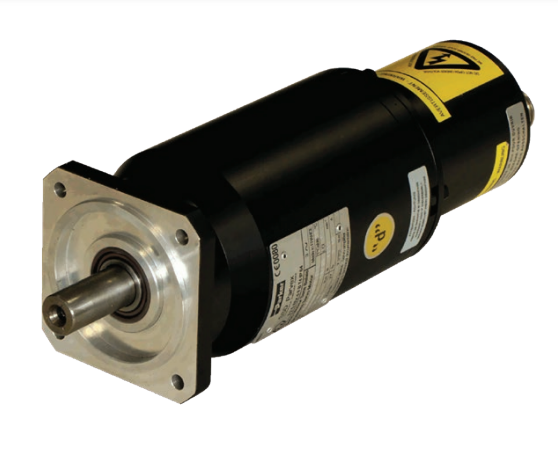

EX series motors are designed for use in explosive atmospheres. Two versions are available that conform to CE/ATEX, UL and IECEx requirements. EX motors are capable of bearing internal explosions with no risk of propagation to the outside environment. EX motors are characterized by excellent motion quality, great acceleration/deceleration capabilities and high torque output over a wide speed range.

Advantages

• Brushless servo motors with explosion proof certification from a notified body.

• Conforming with CE/ATEX and International safety standard

• For an ambiant temperature at 40°c or 60°C

• For gas and dust explosive atmospheres

• High precision

• High motion quality

• High dynamic performance

• Low cogging • Compactness and robustness

• Maintenance free • High power density (6 kW in a 155 square frame)

• Compatible with all popular drives

Applications

• Printing machinery

• Paint spray equipments

• Chemical, petro-chemical and pharmaceutical industries

• Robot applications

• Special machines

• Cleaning applications

• Actuator for valve in Energy applications

• Waste processing plants

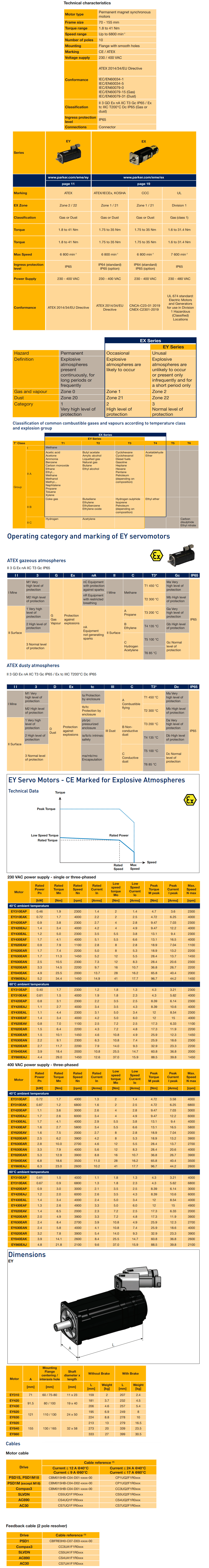

Catalog and Specifications
  • EX Motor Catalog
    User Guides
  • EX Serie Motor Manual
    Download - Drawings and CAD files
  • Drawings and CAD File
