Parker: Gantry Robot System - System Five (Two Axis: XX’-Z)

Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.

• Motors, Drives and Controls

• Extended Travels

• Rotary Motion Modules

• Cleanroom Preparations

• External Position Feedback

• Vertical Axis Brakes

• End Effectors

• Protective Guarding

• Custom Support Structures

Parker’s seven standard system configurations are designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.

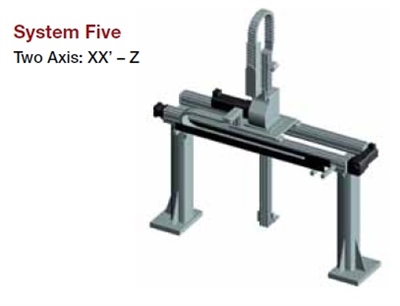

System Five

System Five is an X-Z system utilizing the HZR belt driven unit for the vertical axis. The rigidity of the HZR permits higher vertical speed, greater X-axis acceleration, and larger moment loading than System Three.

Series No.	X-Axis	Z-Axis
1	HLE100RB	HZR80
2	HLE100RB	HZR100
3	HLE100SR	HZR80
4	HLE100SR	HZR100
5	HPLA120	HZR80
6	HPLA120	HZR100
7	HLE150RB	HZR80
8	HLE150RB	HZR10

Size: HLE100RB-HZR100 (X-Axis) (Z-Axis), HLE100RB-HZR80 (X-Axis) (Z-Axis), HLE100SR-HZR100 (X-Axis) (Z-Axis), HLE100SR-HZR80 (X-Axis) (Z-Axis), HLE150RB-HZR100 (X-Axis) (Z-Axis), HLE150RB-HZR80 (X-Axis) (Z-Axis), HPLA120-HZR100 (X-Axis) (Z-Axis), HPLA120-HZR80 (X-Axis) (Z-Axis)
