Parker: System Three (Two Axis: XX’-Z)

Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.


Additional Capabilities:

  • Motors, Drives and Controls

  • Extended Travels

  • Rotary Motion Modules

  • Cleanroom Preparations

  • External Position Feedback

  • Vertical Axis Brakes

  • End Effectors

  • Protective Guarding

  • Custom Support Structures

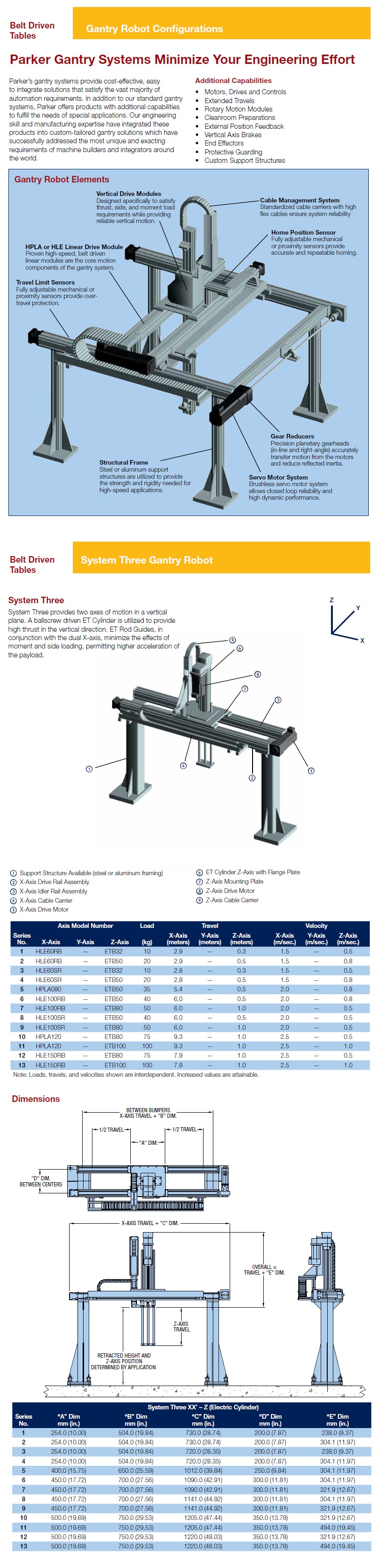

Parker’s seven standard system configurations are
designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.

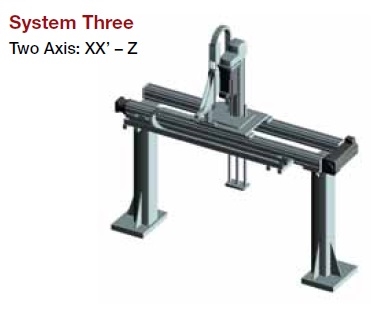

System
Three

System Three provides two axes of motion in a vertical plane. A ballscrew driven ET Cylinder is utilized to provide high thrust in the vertical direction. ET Rod Guides, in conjunction with the dual X-axis, minimize the effects of moment and side loading, permitting higher acceleration of the payload.


Series No.

X-Axis

Z-Axis

1

HLE60RB

ETB32

2

HLE60RB

ETB50

3

HLE60SR

ETB32

4

HLE60SR

ETB50

5

HPLA080

ETB50

6

HLE100RB

ETB50

7

HLE100RB

ETB80

8

HLE100SR

ETB50

9

HLE100SR

ETB80

10

HPLA120

ETB80

11

HPLA120

ETB100

12

HLE150RB

ETB80

13

HLE150RB

ETB10


Size: HLE100RB-ETB50 (X-Axis) (Z-Axis), HLE100RB-ETB80 (X-Axis) (Z-Axis), HLE100SR-ETB50 (X-Axis) (Z-Axis), HLE100SR-ETB80 (X-Axis) (Z-Axis), HLE150RB-ETB100 (X-Axis) (Z-Axis), HLE150RB-ETB80 (X-Axis) (Z-Axis), HLE60RB-ETB32 (X-Axis) (Z-Axis), HLE60RB-ETB50 (X-Axis) (Z-Axis), HLE60SR-ETB32 (X-Axis) (Z-Axis), HLE60SR-ETB50 (X-Axis) (Z-Axis), HPLA080-ETB50 (X-Axis) (Z-Axis), HPLA120-ETB100 (X-Axis) (Z-Axis), HPLA120-ETB80 (X-Axis) (Z-Axis)
