Parker: Gantry Robot System - System Two (Two Axis: XX’-YY’)

Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.


Additional Capabilities:

  • Motors, Drives and Controls

  • Extended Travels

  • Rotary Motion Modules

  • Cleanroom Preparations

  • External Position Feedback

  • Vertical Axis Brakes

  • End Effectors

  • Protective Guarding

  • Custom Support Structures


Parker’s seven standard system configurations are
designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.


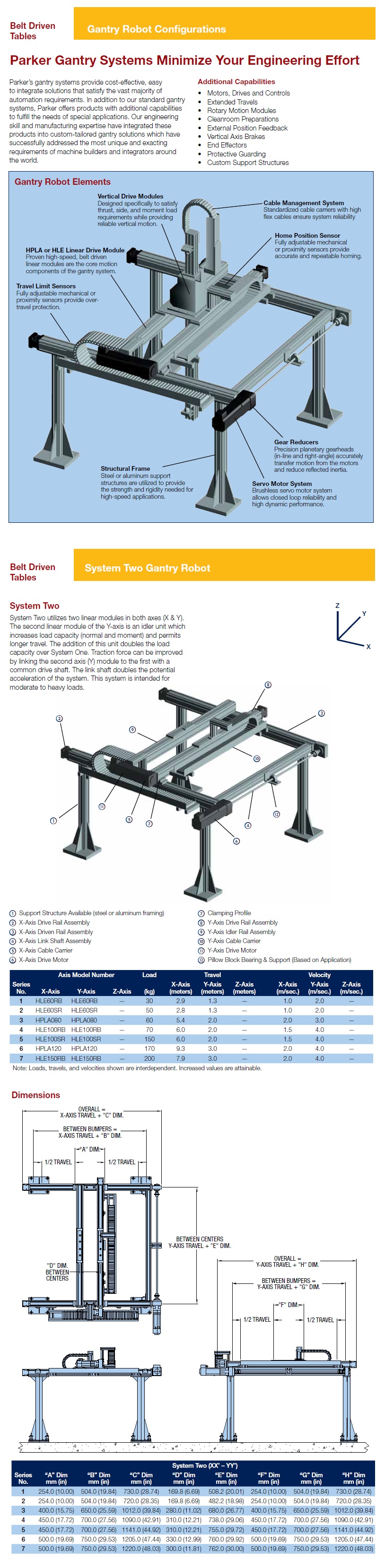

System
Two

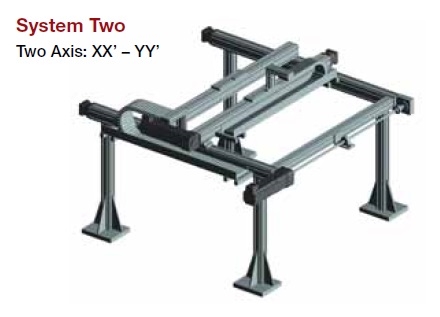

System Two utilizes two linear modules in both axes (X & Y). The second linear module of the Y-axis is an idler unit which increases load capacity (normal and moment) and permits longer travel. The addition of this unit doubles the load capacity over System One. Traction force can be improved by linking the second axis (Y) module to the first with a common drive shaft. The link shaft doubles the potential acceleration of the system. This system is intended for moderate to heavy loads.

Series No.

X-Axis

Y-Axis

1

HLE60RB

HLE60RB

2

HLE60SR

HLE60SR

3

HPLA080

HPLA080

4

HLE100RB

HLE100RB

5

HLE100SR

HLE100SR

6

HPLA120

HPLA120

7

HLE150RB

HLE150RB

Size: HLE100RB-HLE100RB (X-Axis) (Y-Axis), HLE100SR-HLE100SR (X-Axis) (Y-Axis), HLE150RB-HLE150RB (X-Axis) (Y-Axis), HLE60RB-HLE60RB (X-Axis) (Y-Axis), HLE60SR-HLE60SR (X-Axis) (Y-Axis), HPLA080-HPLA080 (X-Axis) (Y-Axis), HPLA120-HPLA120 (X-Axis) (Y-Axis)
