Parker: System One (Two Axis: XX-Y)

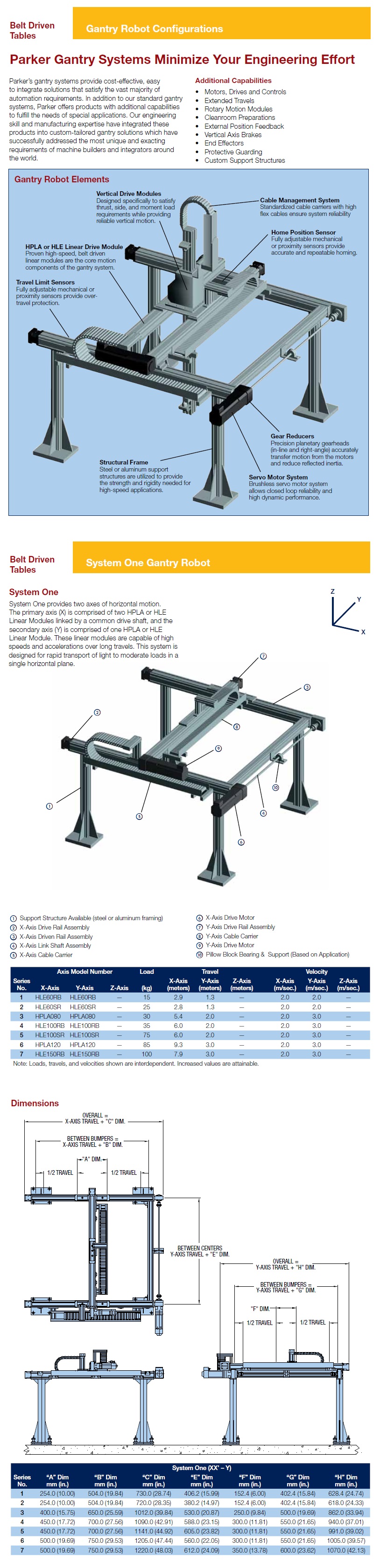

Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.

Additional Capabilities:

• Motors, Drives and Controls

• Extended Travels

• Rotary Motion Modules

• Cleanroom Preparations

• External Position Feedback

• Vertical Axis Brakes

• End Effectors

• Protective Guarding

• Custom Support Structures

Parker’s seven standard system configurations are designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.

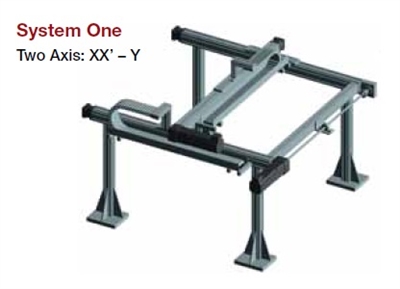

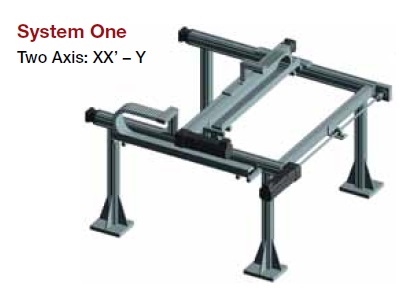

System One

System One provides two axes of horizontal motion. The primary axis (X) is comprised of two HPLA or HLE Linear Modules linked by a common drive shaft, and the secondary axis (Y) is comprised of one HPLA or HLE Linear Module. These linear modules are capable of high speeds and accelerations over long travels. This system is designed for rapid transport of light to moderate loads in a single horizontal plane.

Catalog and Specifications Catalog (pdf) Request Electromechanical Positioning Systems Catalog #8092 (Print Version) Application Examples Adhesive Dispensing Laser Cutting Photovoltaic Cell Manufacturing Solid Modeling Download - Drawings and CAD files CAD Files
