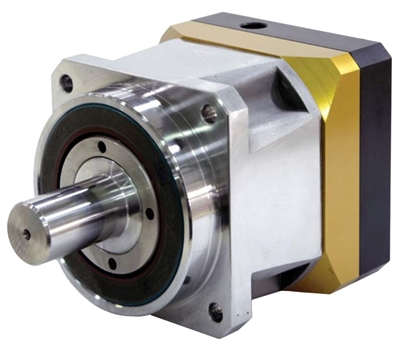

Parker: Helical Planetary Gearboxes (PS Series)PS60-003-L2
Parker: High Precision Inline Helical Planetary Gearboxes (PS Series)PS60-003-L2

Call for Pricing

Price Quote Form


Price: (Members Only)


Order #: PS60-003-L2


Model No.:


.
Description Ordering Information Specifications and Drawings


Parker: High Precision Inline Helical Planetary Gearboxes (PS Series)PS60-003-L2

The high precision PS-series inline helical planetary gearheads are available in 60-115mm frame sizes and offer high torques, high radial loads, very low backlash, high input speeds and a small package size.

The PS-series Inline Helical Planetary Gearboxes incorporate design enhancements to provide superior performance for the most demanding high performance applications. The PS gearboxes incorporate dual angular contact bearings providing higher radial load capacities while maintaining high input speeds. The design enhancements comprise among others, needle bearings to ensure a longer lifetime. Internal design changes and optimized gearing geometries provide the basis for the universal mounting position. Common mounting kits across multiple gear head lines promote quicker deliveries and ease of mounting to any servo motor. Mounting to any servo motor is as easy as A-B-C (adapter, bushing, collet).

Features:

  • Frame Sizes: 60 – 115mm

  • Ratio Options: 3:1 - 100:1

  • Backlash: to < 4 arc-minutes (standard) / < 3 arc-minutes (optional)

  • Efficiency: up to 97%

  • Quiet Operation: less than 65db

  • High Input Speeds: up to 6,000 RPM

  • High Nominal Torque and Low Backlash - Helical planetary gearing

  • High Stiffness - Integrated planetary gearhead

  • High Wear Resistance - Plasma Nitriding heat treating

  • Higher Radial Load Capacity - angular contact output bearings

  • Increased Service Life - needle bearings

  • Lifetime Lubrication

  • Universal Mounting Kits - quicker deliveries and easier mounting

  • IP65 protection


Model No.: PS60-003-L2, PS60-003-L2/MU60-001, PS60-003-L2/MU60-003, PS60-003-L2/MU60-254, PS60-003-L2/MU60-255, PS60-003-L2/MU60-321, PS60-003-S2, PS60-003-S2/MU60-001, PS60-003-S2/MU60-003, PS60-003-S2/MU60-254, PS60-003-S2/MU60-255, PS60-003-S2/MU60-321, PS60-004-L2, PS60-004-L2/MU60-001, PS60-004-L2/MU60-003, PS60-004-L2/MU60-254, PS60-004-L2/MU60-255, PS60-004-L2/MU60-321, PS60-004-S2, PS60-004-S2/MU60-001, PS60-004-S2/MU60-003, PS60-004-S2/MU60-254, PS60-004-S2/MU60-255, PS60-004-S2/MU60-321, PS60-005-L2, PS60-005-L2/MU60-001, PS60-005-L2/MU60-003, PS60-005-L2/MU60-254, PS60-005-L2/MU60-255, PS60-005-L2/MU60-321, PS60-005-S2, PS60-005-S2/MU60-001, PS60-005-S2/MU60-003, PS60-005-S2/MU60-254, PS60-005-S2/MU60-255, PS60-005-S2/MU60-321, PS60-007-L2, PS60-007-L2/MU60-001, PS60-007-L2/MU60-003, PS60-007-L2/MU60-254, PS60-007-L2/MU60-255, PS60-007-L2/MU60-321, PS60-007-S2, PS60-007-S2/MU60-001, PS60-007-S2/MU60-003, PS60-007-S2/MU60-254, PS60-007-S2/MU60-255, PS60-007-S2/MU60-321, PS60-010-L2, PS60-010-L2/MU60-001, PS60-010-L2/MU60-003, PS60-010-L2/MU60-254, PS60-010-L2/MU60-255, PS60-010-L2/MU60-321, PS60-010-S2, PS60-010-S2/MU60-001, PS60-010-S2/MU60-003, PS60-010-S2/MU60-254, PS60-010-S2/MU60-255, PS60-010-S2/MU60-321, PS60-015-L2, PS60-015-L2/MU60-001, PS60-015-L2/MU60-003, PS60-015-L2/MU60-254, PS60-015-L2/MU60-255, PS60-015-L2/MU60-321, PS60-015-S2, PS60-015-S2/MU60-001, PS60-015-S2/MU60-003, PS60-015-S2/MU60-254, PS60-015-S2/MU60-255, PS60-015-S2/MU60-321, PS60-020-L2, PS60-020-L2/MU60-001, PS60-020-L2/MU60-003, PS60-020-L2/MU60-254, PS60-020-L2/MU60-255, PS60-020-L2/MU60-321, PS60-020-S2, PS60-020-S2/MU60-001, PS60-020-S2/MU60-003, PS60-020-S2/MU60-254, PS60-020-S2/MU60-255, PS60-020-S2/MU60-321, PS60-025-L2, PS60-025-L2/MU60-001, PS60-025-L2/MU60-003, PS60-025-L2/MU60-254, PS60-025-L2/MU60-255, PS60-025-L2/MU60-321, PS60-025-S2, PS60-025-S2/MU60-001, PS60-025-S2/MU60-003, PS60-025-S2/MU60-254, PS60-025-S2/MU60-255, PS60-025-S2/MU60-321, PS60-030-L2, PS60-030-L2/MU60-001, PS60-030-L2/MU60-003, PS60-030-L2/MU60-254, PS60-030-L2/MU60-255, PS60-030-L2/MU60-321, PS60-030-S2, PS60-030-S2/MU60-001, PS60-030-S2/MU60-003, PS60-030-S2/MU60-254, PS60-030-S2/MU60-255, PS60-030-S2/MU60-321, PS60-040-L2, PS60-040-L2/MU60-001, PS60-040-L2/MU60-003, PS60-040-L2/MU60-254, PS60-040-L2/MU60-255, PS60-040-L2/MU60-321, PS60-040-S2, PS60-040-S2/MU60-001, PS60-040-S2/MU60-003, PS60-040-S2/MU60-254, PS60-040-S2/MU60-255, PS60-040-S2/MU60-321, PS60-050-L2, PS60-050-L2/MU60-001, PS60-050-L2/MU60-003, PS60-050-L2/MU60-254, PS60-050-L2/MU60-255, PS60-050-L2/MU60-321, PS60-050-S2, PS60-050-S2/MU60-001, PS60-050-S2/MU60-003, PS60-050-S2/MU60-254, PS60-050-S2/MU60-255, PS60-050-S2/MU60-321, PS60-070-L2, PS60-070-L2/MU60-001, PS60-070-L2/MU60-003, PS60-070-L2/MU60-254, PS60-070-L2/MU60-255, PS60-070-L2/MU60-321, PS60-070-S2, PS60-070-S2/MU60-001, PS60-070-S2/MU60-003, PS60-070-S2/MU60-254, PS60-070-S2/MU60-255, PS60-070-S2/MU60-321, PS60-100-L2, PS60-100-L2/MU60-001, PS60-100-L2/MU60-003, PS60-100-L2/MU60-254, PS60-100-L2/MU60-255, PS60-100-L2/MU60-321, PS60-100-S2, PS60-100-S2/MU60-001, PS60-100-S2/MU60-003, PS60-100-S2/MU60-254, PS60-100-S2/MU60-255, PS60-100-S2/MU60-321


Downloads

Parker Planetary Gearheads - Catalog (English)
PS Series High Precision Inline Helical Planetary Gearboxes - Mounting Instructions
PS115 Series - 2D CAD (DXF)
PS115 Series - 3D CAD (STP)
PS60 Series - 2D CAD (DXF)
PS60 Series - 3D CAD (STP)
PS90 Series - 2D CAD (DXF)
PS90 Series - 3D CAD (STP)
