Parker: High Precision Right-Angle Multi-Drive Helical Gearheads/Low Ratio (RB Series)RB090-001

Stealth RB-series Multi-Drive gearheads offer the option of low gear ratios in a compact, right angle package. Available in 90-220mm frame sizes, RB-series gearheads feature Stealth helical gearing for high torque, high accuracy and quiet operation.


The Stealth RB-series
Multi-Drive gearheads offer the option of low gear ratios in a compact, right angle package and features Stealth helical gearing for high torque, high accuracy and quiet operation. Available in 90-220mm frame sizes and with multiple ratios to choose from, you are sure to find a Stealth Multi-Drive to fit your servo motor application.

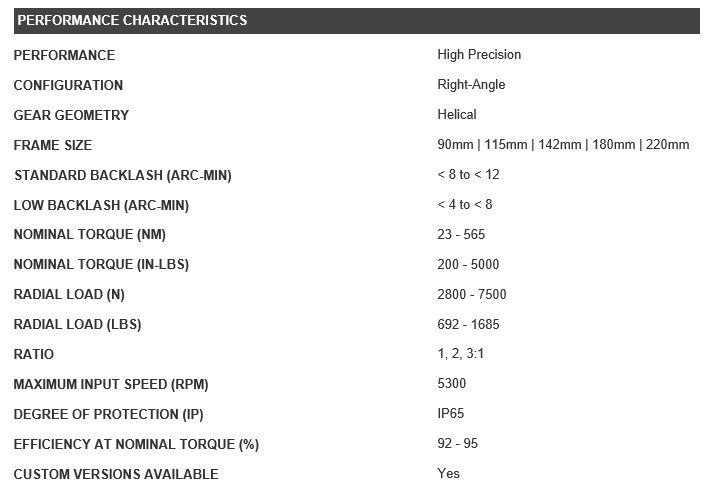

Features:

  • High Precision, Low Ratio Right-Angled Helical Gearhead

  • Frame Sizes: 90 – 220mm

  • Ratio Options: 1:1 - 3:1

  • High Torque/Low Backlash: helical planetary, spiral bevel gear geometry

  • Backlash: to < 8 arc-minutes (standard) / < 4 arc-minutes (optional)

  • Efficiency: up to 95%

  • Quiet Operation: less than 72db

  • Input Speeds: up to 3,000 RPM

  • Space Saving: Compact, right-angle design saves space in many applications.

  • Smooth, Quiet Operation and Long Life: Hardened, precision spiral bevel gears ensure quiet operation.

  • Quick, Error-Free Mounting to any servo or stepper motor using Parker's Servo Mount design.

  • Sealed Unit: Seals and O-rings provide IP65 protection to prevent leaks and to protect against harsh environments.

  • Spiral Bevel Gears: deliver high efficiency and high torque in a compact, right angle package.

  • IP65 protection



  • Model No.: RB090-001, RB115-001, RB142-001, RB180-001, RB220-001
