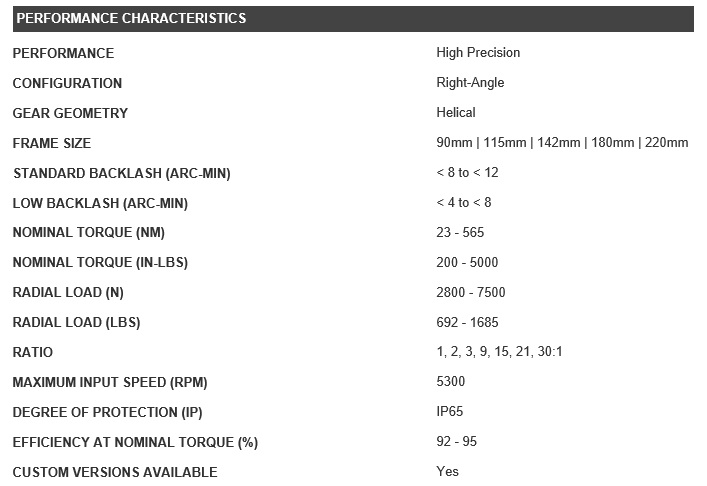

Description Ordering Information Specifications and Drawings


Parker: High Precision Right-Angle Multi-Drive Helical Gearheads/Double Shaft (RD Series) RD142E003-LB

Stealth RD-series Multi-Drive gearheads offer the option of a double shaft in a compact, right angle package. Available in 90-220mm frame sizes, RD-series gearheads feature Stealth helical gearing for high torque, high accuracy and quiet operation.


The Stealth RD-series
Multi-Drive gearheads offer the option of a double shaft in a compact, right angle package and features Stealth helical gearing for high torque, high accuracy and quiet operation. Available in 90-220mm frame sizes and with multiple ratios to choose from, you are sure to find a Stealth Multi-Drive to fit your servo motor application.


Features:

  • High Precision, Double Shaft Right-Angled Helical Gearhead

  • Frame Sizes: 90 220mm

  • Ratio Options: 1:1 - 30:1

  • High Torque / Low Backlash: helical planetary, spiral bevel gear geometry

  • Backlash: to < 8 arc-minutes (standard) / < 4 arc-minutes (optional)

  • Efficiency: up to 95%

  • Quiet Operation: less than 72db

  • Input Speeds: up to 5,300 RPM

  • Space Saving: Compact, right-angle design saves space in many applications

  • Smooth, Quiet Operation and Long Life: Hardened, precision spiral bevel gears ensure quiet operation

  • Quick, Error-Free Mounting to any servo or stepper motor using Parker's Servo Mount design

  • Sealed Unit: Seals and O-rings provide IP65 protection to prevent leaks and to protect against harsh environments

  • Spiral Bevel Gears: deliver high efficiency and high torque in a compact, right angle package

  • IP65 protection

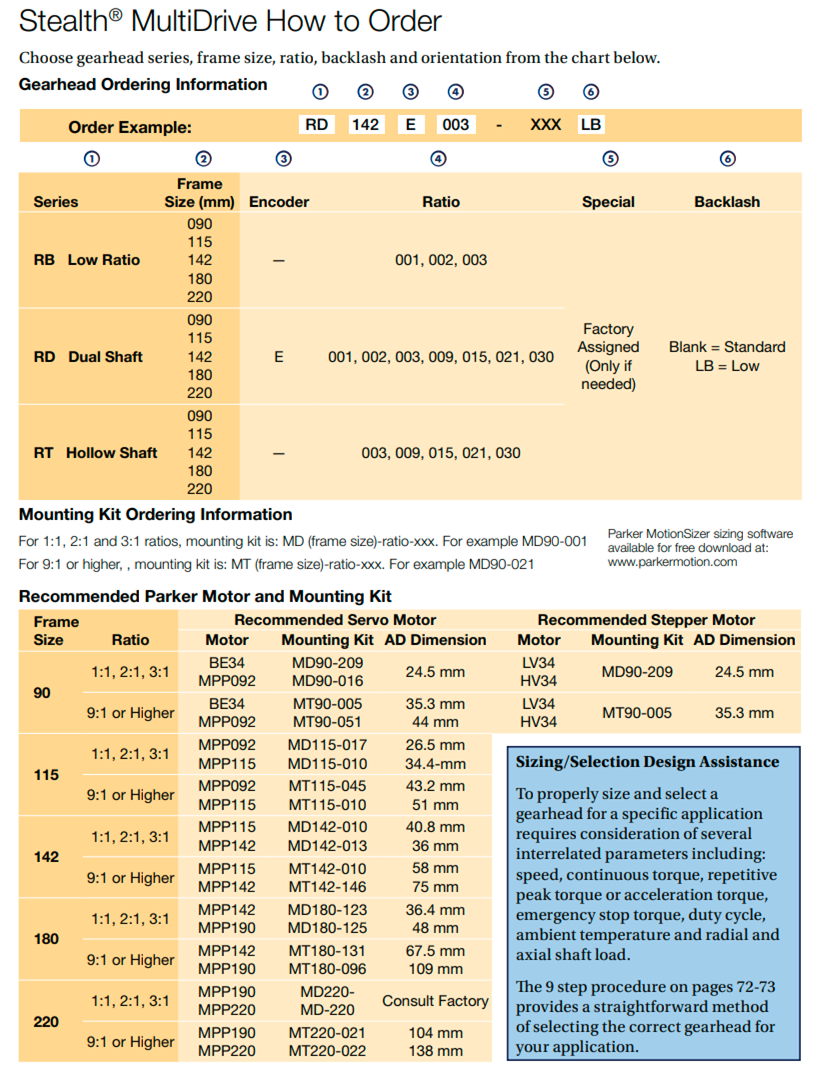

Model No.: RD090E003-LB, RD115E003-LB, RD142E003-LB, RD180E003-LB, RD220E003-LB

Downloads:
MultiDrive_RB_RD_RT_dxf.zip
RD Series Catalog
RD90 3D CAD files
