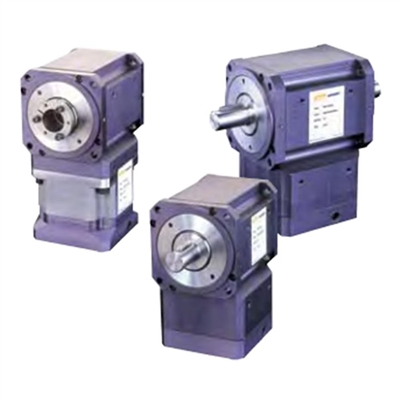

Parker: High Precision Right-Angle MultiDrive Helical Gearheads/Hollow Shaft (RT Series)RT090-003
Stealth RT-series MultiDrive gearheads offer the option of a hollow shaft in a compact, right angle package. Available in 90-220mm frame sizes, RT-series gearheads feature Stealth helical gearing for high torque, high accuracy and quiet operation. The Stealth RT-series MultiDrive gearheads offer the option of a hollow shaft in a compact, right angle package and features Stealth helical gearing for high torque, high accuracy and quiet operation. Available in 90-220mm frame sizes and with multiple ratios to choose from, you are sure to find a Stealth MultiDrive to fit your servo motor application.

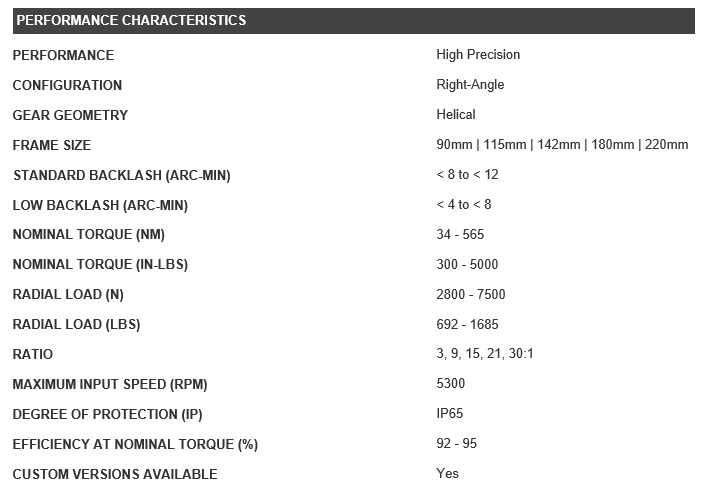

Features:
High Precision, Hollow Shaft Right-Angled Helical Gearhead
Frame Sizes: 90 – 220mm
Ratio Options: 3:1 - 30:1
High Torque / Low Backlash: helical planetary, spiral bevel gear geometry
Backlash: to < 8 arc-minutes (standard) / < 4 arc-minutes (optional)
Efficiency: up to 95%
Quiet Operation: less than 72db
High Input Speeds: up to 5,300 RPM
Space Saving: Compact, right-angle design saves space in many applications
Smooth, Quiet Operation and Long Life: Hardened, precision spiral bevel gears ensure quiet operation.
Quick, Error-Free Mounting to any servo or stepper motor using Parker's ServoMount design
Sealed Unit: Seals and O-rings provide IP65 protection to prevent leaks and to protect against harsh environments
Spiral Bevel Gears: deliver high efficiency and high torque in a compact, right angle package
IP65 protection
Model No.: RT090-003, RT115-003, RT142-003, RT180-003, RT220-003
