Parker: Mid-Precision Right-Angle Helical Planetary Gearheads - Gen II Stealth (RX Series)RX60-005-S2

RX-series right-angled gearheads incorporate Parker's helical planetary technology in a lower cost package. Available in 60-115mm & NEMA23-42 frame sizes, RX gearheads delivers high torque and quiet, smooth operation for less demanding servo applications.


The Stealth RX-series is Parker's medium grade right-angle servo gearhead. Available in 60 to 115mm and NEMA23 to NEMA42 frame sizes, RX gearheads deliver the best value with all the advantages of helical planetary technology. The RX-series helical planetary gearheads provide high torque, low backlash and high stiffness, making them ideal for high and medium level performance applications. They incorporate design enhancements to provide superior performance for the most demanding high performance applications - this level of performance at an exceptional value is what makes RX the gearhead of choice for today's lower cost servo motor applications.

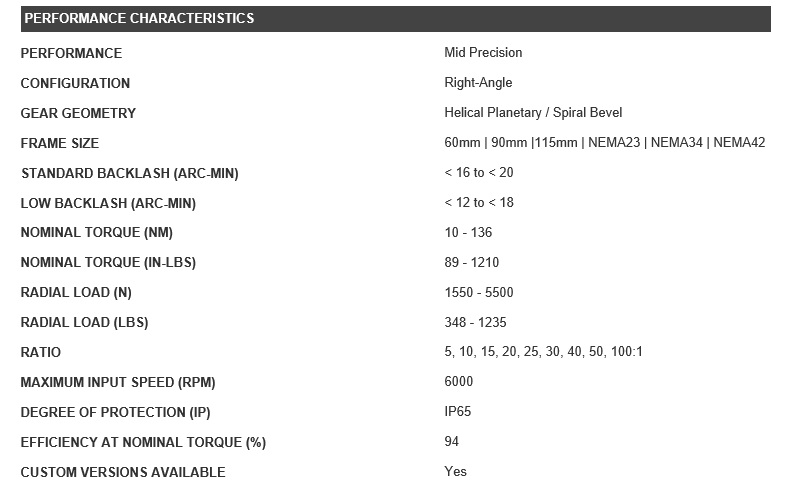

Features:

  • Medium Precision, Right-Angle Helical Planetary Gearhead

  • Frame Sizes: 60 - 115mm / NEMA23 NEMA42

  • Ratio Options: 5:1 - 100:1

  • High Torque / Low Backlash: helical planetary gear geometry

  • Backlash: to < 16 arc-minutes (standard) / < 12 arc-minutes (optional)

  • Efficiency: up to 94%

  • Quiet Operation: less than 68db

  • High Input Speeds: up to 6,000 RPM

  • Higher Radial Load Capacity: widely spaced angular contact output bearings.

  • High Stiffness: Integral ring gear and rigid sun gear

  • Helicrown: Parker's proprietary gear tooth geometry ensures quieter operation and higher loads.

  • Higher Gear Wear Resistance: plasma nitriding heat treatment

  • Increased Service Life: full complement of planet needle bearings

  • Universal Mounting Kits: quicker deliveries and easier mounting

  • Spiral Bevel Gears: deliver high efficiency and high torque in a compact, right angle package.

  • Compact Design: package size is the same regardless of ratio

  • IP65 protection
