Parker: Standard Precision Inline Planetary Gearheads (PV Series)PV40TN-004 PV-series planetary gearheads combines power & versatility with a wide range of options, high radial load capacities and maintenance free operation. Available in 40-115mm/NEMA17-42 frame sizes with universal mounting kits for easy output face crossover.
The PV-series inline planetary gearhead combines power and versatility in an economical package. It comes in a wide range of options, including dimensional output face crossovers to the Parker PX, Alpha LP, Neugart PLE, Stober PE and standard NEMA gearheads. The PV-series gearheads are available in 40-115mm and NEMA17-NEMA42 frame sizes and offer gear ratios from 3:1 to 100:1. Whether you're an OEM or an end-user searching for competitive alternatives, the PV offers a superior solution. Standard Precision, Inline Planetary Gearhead Frame Sizes: 40 - 115mm / NEMA17 – NEMA42 Ratio Options: 3:1 - 100:1 High Torque / Low Backlash: planetary gear geometry Backlash: to < 8 arc-minutes (standard) Efficiency: up to 96% Quiet Operation: less than 70db High Input Speeds: up to 8,000 RPM Higher Radial Load Capacity: taper roller output bearings High Stiffness: Integral ring gear and rigid sun gear Higher Gear Wear Resistance: plasma nitriding heat treatment Competitive Alternatives: Five Drop-In Output Face Options Universal Mounting Kits: quicker deliveries and easier mounting IP64 protection
Model No.: PV17FE, PV23FE, PV34FE, PV40FB, PV40TA, PV40TN, PV42FE, PV60FB, PV60FN, PV60TA, PV60TN, PV90FB, PV90TA, PV90TN, PV115FA, PV115FB, PV115FN, PV115TN

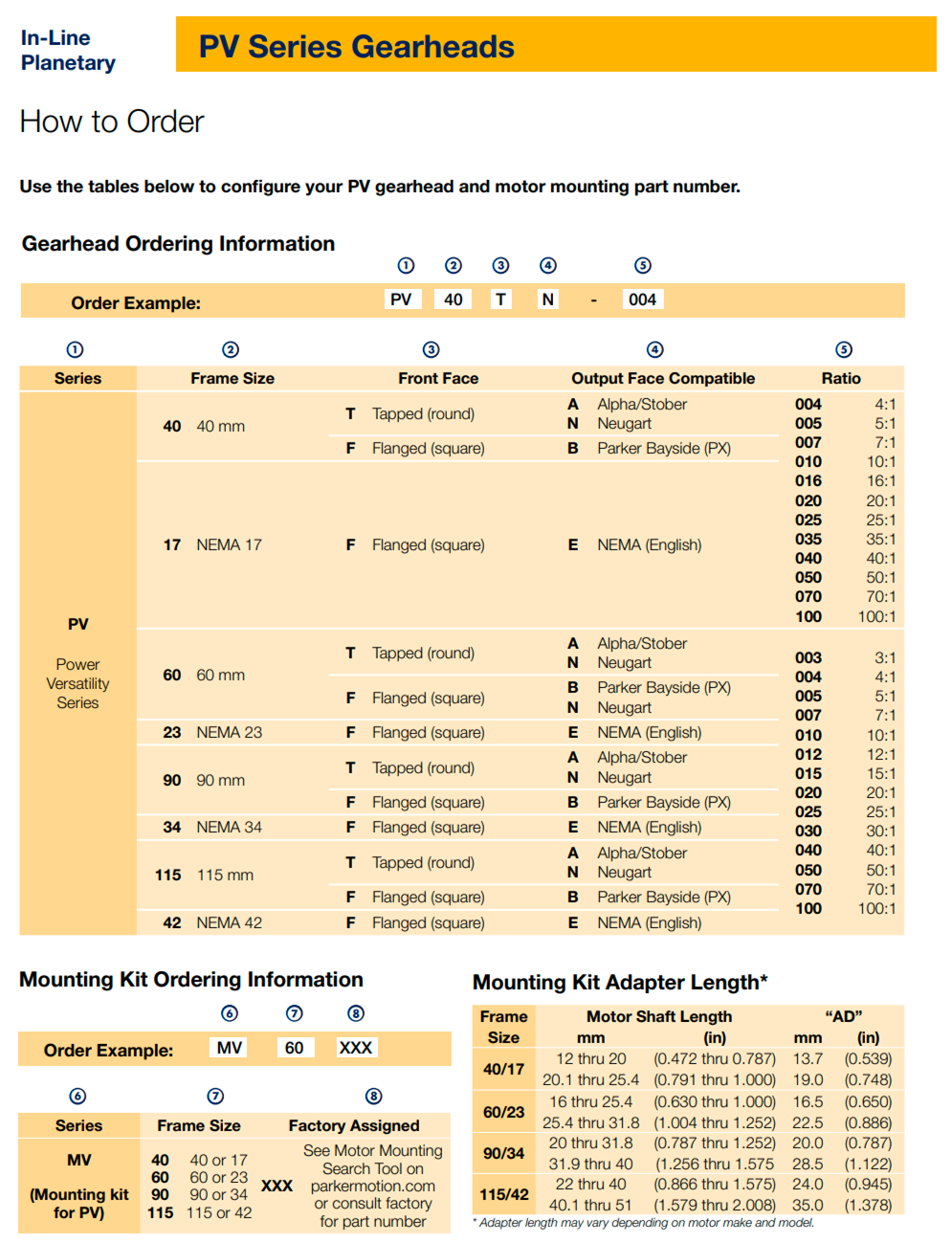

Downloads:| PV Series Gearhead Manual | | PV Series Gearheads How to Order | | PV Series Mounting Instructions | | PV Series Standard Mounting Kit Guide | | PV-Series Inline Planetary Gearheads - Brochure | | PV-Series Inline Planetary Gearheads - Mounting Instructions | | PV-Series Inline Planetary Gearheads - User Guide | | PV115FB - 2D/3D CAD (DXF, STP, PDF) | | PV115FN - 2D/3D CAD (DXF, STP, PDF) | | PV115TA - 2D/3D CAD (DXF, STP, PDF) | | PV115TN - 2D/3D CAD (DXF, STP, PDF) | | PV17FE - 3D CAD (STP) | | PV23FE - 3D CAD (STP) | | PV34FE - 3D CAD (STP) | | PV40FB, FE, TA, TN - 3D CAD (STP) | | PV42FE - 2D/3D CAD (DXF, STP, PDF) | | PV60FB, FE, TA, TN - 3D CAD (STP) | | PV90FB, FE, TA, TN - 3D CAD (STP) |

|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
