Parker: Linear Positioning Stages MX45S

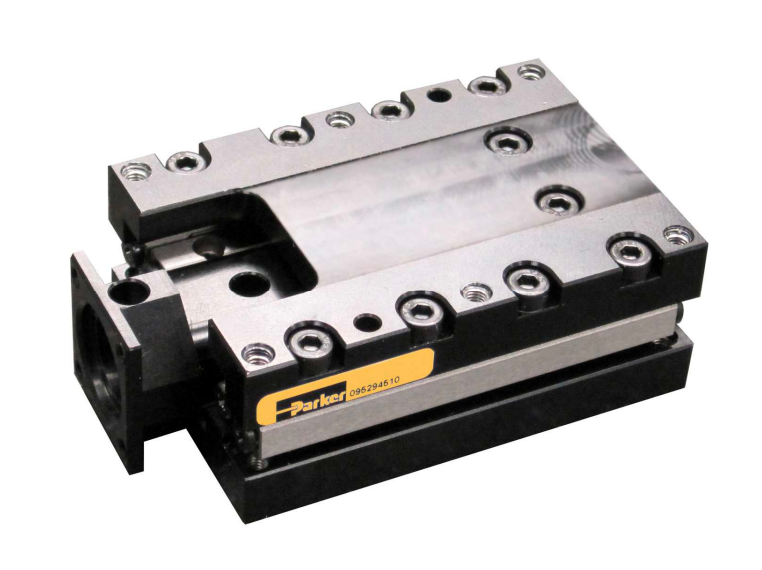

The MX45S is a 45mm wide miniature
screw driven positioner based on the award- winning MX80 family. Like its
predecessor, the MX45S is designed for OEMs requiring reliable linear
positioning in space restricted applications. Designed with anti-cage creep
crossed roller bearings, the MX45S allows users to position up to 7 kg of
normal load on the stage’s three standard travel lengths (5mm, 15mm &
25mm).
The MX45S can be supplied with a high
efficiency leadscrew or a high precision ground ballscrew, both of which are
capable of producing 40 N of thrust and reaching linear velocities of 20 mm/s
and 30 mm/s respectively.
The leadscrew drive employs a
PTFE-coated screw with a preloaded nut to deliver extremely smooth and quiet
linear motion. A choice of two leads allows the user to match the desired mix
of velocity

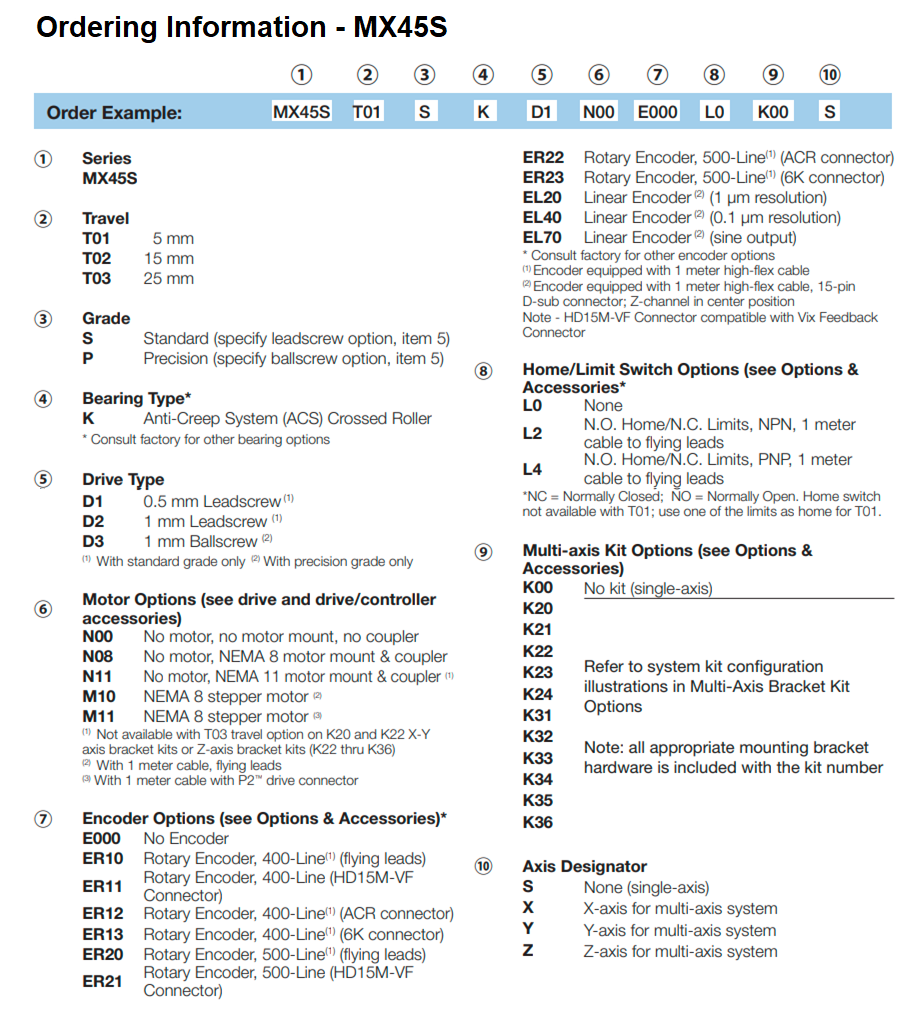

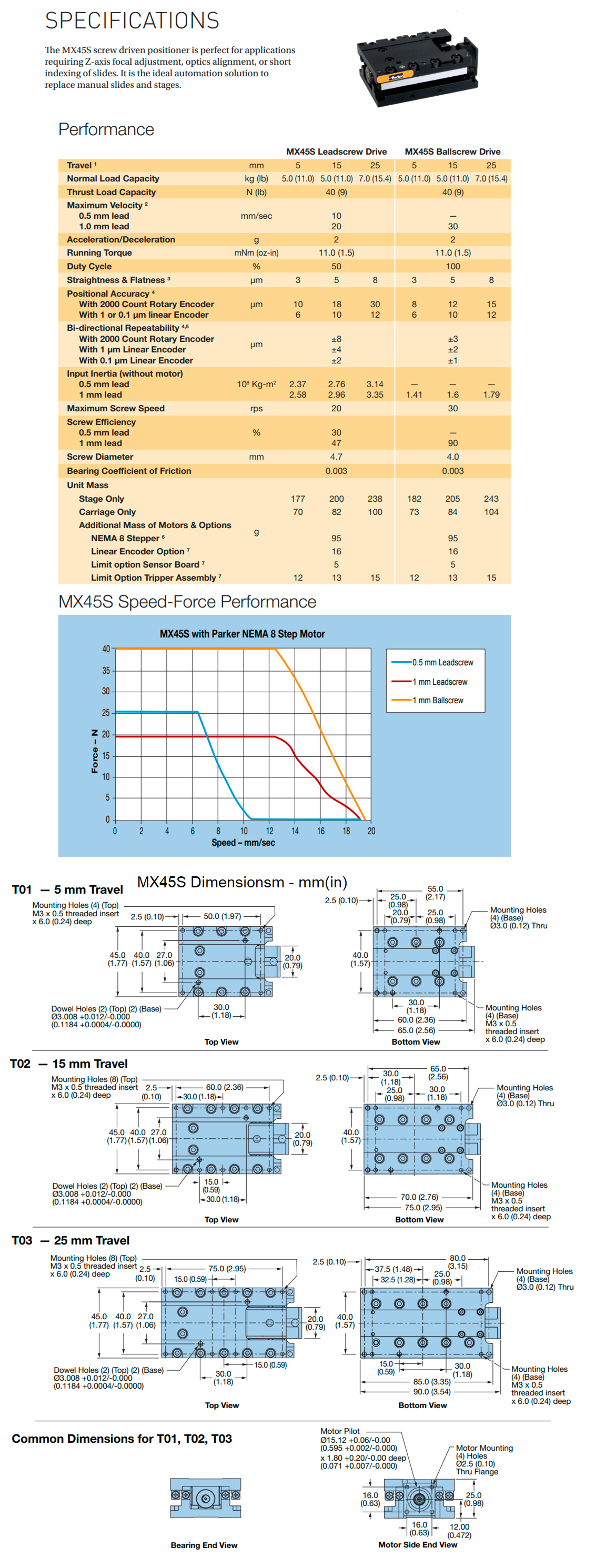

Design Features
·
Ultra
compact profile (25 mm high X 45 mm wide x 65, 75 or 90 mm long) • 5, 15 and 25
mm travels
·
Ballscrew
or leadscrew drive options
·
Anti-cage
creep crossed roller bearings
·
Up
to 40 N axial thrust
·
30
mm/s max velocity
·
Stepper
motor driven
·
Optional
digital limit/home sensor pack
·
Optional
rotary or linear encoders
·
Multi-axis
platforms • Ideal for normal or cleanroom environments
·
Miniature
size � 45 mm wide x 25 mm high
·
Selectable
travels: 5 mm, 15 mm, and 25 mm
·
Anti-cage
creep cross roller bearings
·
Stepper
motor driven with optional rotary encoder
·
Optional
limits and home sensors
