Parker: MPW Series Stainless Steel
Servo Motors - MPW
Parker's MPW Series extends the MPP
motor family to meet the needs of those applications exposed to high pressure,
highly caustic, washdown environments. Specific applications can be found in
such markets as Food and Beverage, Pharmaceutical, Packaging, and any other
application that may be exposed to a harsh environment (salt, fog and
humidity).
Parker’s powerful, yet compact stainless steel motor design enables smaller
frame sizes to meet application needs. Extra sealing and venting also provides
an easy way for the user to extend the life of the motor (up to 2X longer than
other motors found in the market today).

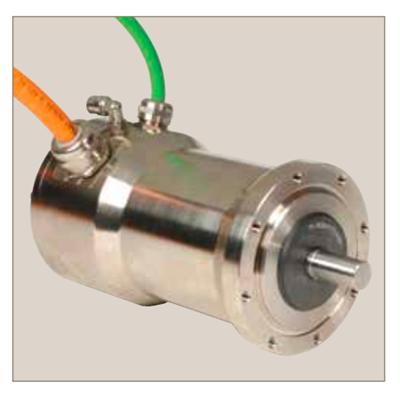

Stainless Steel Servo Motor
Parker’s MPW stainless steel servo
motor is available in 9 models covering three frame sizes. Sealed to IP69K for
1200 psi washdown requirements, the MPW is also potted stator design for high
torque density, and options include high-resolution encoders, resolvers, and
24V brake. The motor’s cable options and motor files, meanwhile, allow it to
operate with a wide variety of drives.
MPW Series motors enable smaller frame sizes to meet application needs.
What makes the MPW, Parker’s new stainless steel servo motor series,
special? Here are just 8 examples:
· IP69K anti-microbial seal with
slinger. Prevents intrusion of high-temperature solutions used for washdown up
to pressures of 1200 psi.
· Single-piece front flange. Front flange
is single-piece construction with main housing body. No seam that could allow
intrusion of liquids.
· Potted stator. Stator is potted
directly into the steel housing, creating a very power-dense solution.
· 300 Series stainless steel housing.
The 300 series material withstands the harshest washdown environments. Micro
polished round housing allows for quick and easy cleaning.
· Segmented laminations. Creates a
very high torque to inertia ratio, which supports rapid rates of acceleration.
· Double O-ring seal. Used to seal
rear motor plate to main housing. Double the protection vs. the use of a single
o-ring design.
· Breather vent. During washdown,
pressure differentiation can cause a vacuum effect that can suck moisture into
the motor housing. Our breather vent allows the user to run a hose to a dry air
location to prevent this common cause of failure.
· Cables. Cables run directly from the
housing via IP69K sealed fittings. Cables are terminated with connectors to
allow easy plug and play to the most popular Parker drives. Connector options
are also available to plug and play with drive solutions offered by other
manufacturers. Parker stainless steel motors are designed to work with the most
popular Parker drives, as well as other drives offered in the market today,

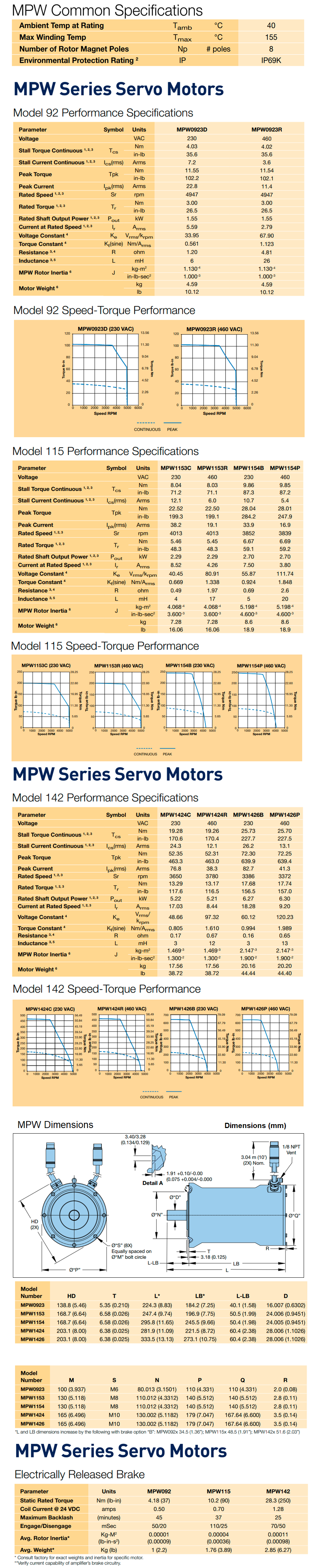

Features:
• 10 models covering three frame
sizes
• Sealed to IP69K for 1200 psi
washdown requirements
• Potted stator design for improved
thermal efficiency
• 35 to 227 in-lbs continuous torque
(230 and 460 VAC supply)
• Options include high resolution
encoders, resolvers, and 24 V brake
• Cable options available to plug and
play with a wide variety of drives
