Parker: mPR Series Miniature High Precision Rotary Stage MPR80

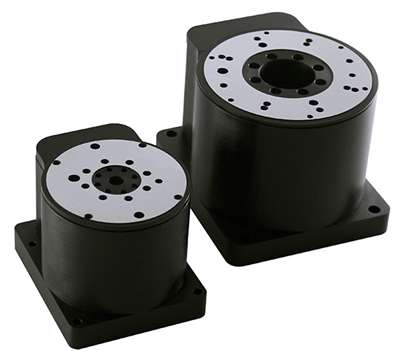

The Miniature Precision Rotary (mPR)
stage is designed to meet the needs of OEMs and machine builders seeking very
high precision in a compact direct drive product.
Two form factors of 80mm and 104mm
diameter mount easily on top of small linear motion axes for building complete
multi-axis motion systems.
The mPR is lightweight without
sacrificing precision and stiffness and delivers excellent torque density.
High angular resolution and precision
angular repeatability, combined with high precision runout values, make the mPR
a high performer in the field of precision rotary motion control.
The mPR is driven with a direct
drive, 3 phase AC servo motor which is integrated directly to the products
Aluminum base. The direct drive eliminates mechanical compliance which might
exist from gearing or screw driven devices.
As a result the mPR delivers
excellent angular dynamic response, and high precision rotary positioning. The
combination of all of these features make the mPR the ideal stage for
applications in laser processing, electronics manufacturing, semiconductor
inspection, and high precision metrology.
