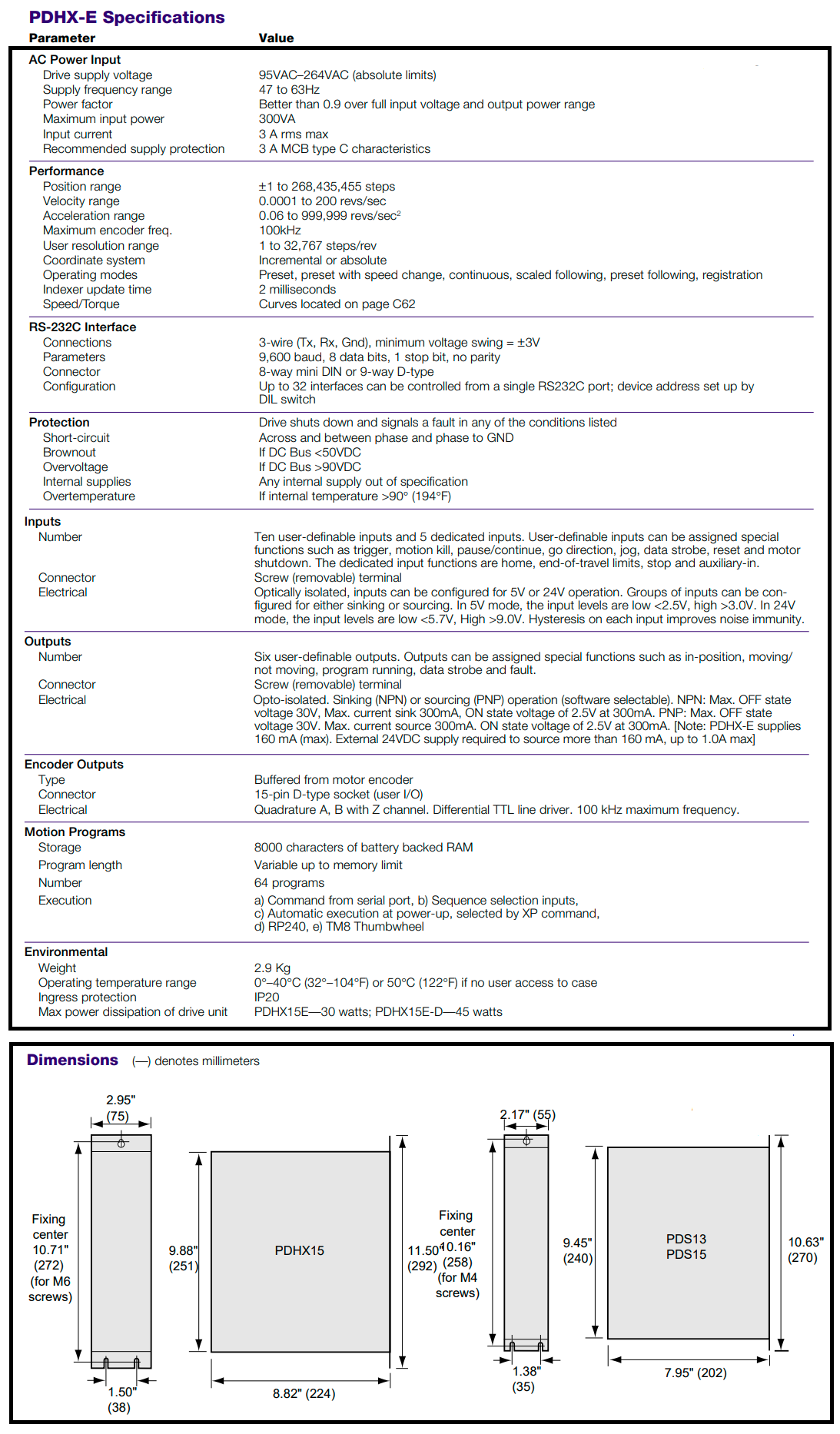

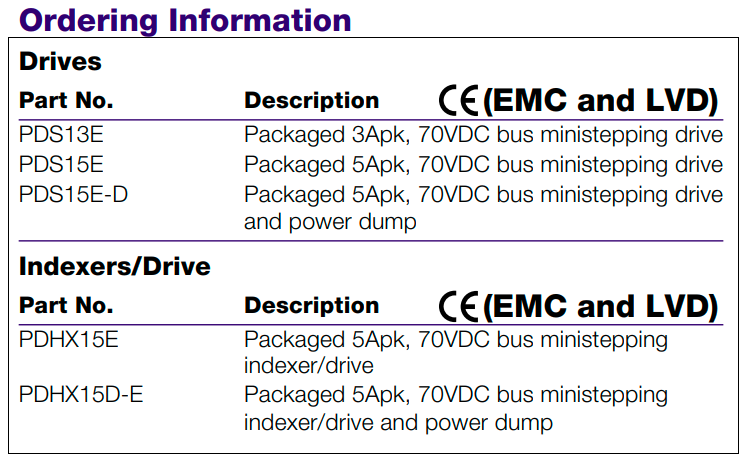

Description Ordering Information Specifications and Drawings

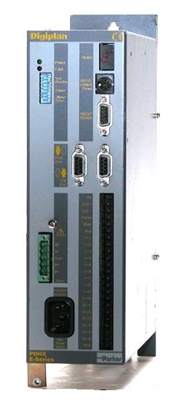

Parker: PDHX-E Series Packaged Drive/Indexer PDHX15E

The PDHX-E indexer version is equipped with the powerful X150E controller that accepts motion commands via RS-232C serial link. The command language is based on an enhanced version of Compumotor’s popular X-Code, which is user friendly and extremely versatile. The indexer can store up to 64 complete motion programs in its non-volatile memory and offers advanced programming features such as conditional branching and math functions. With flexible input and output circuits compatible with virtually all PLC systems and the option of thumbwheel switch or remote operator panel control, the PDHX-E can be integrated into a wide range of industrial applications.

PD-E Series drives are supplied with comprehensive installation instructions to ensure that the completed system fully complies with the requirements of the EMC and low voltage directives.

Features:

CE marked with full EMC and LVD compliance

Meets emission directive without cabinet mounting

Meets most stringent EMC directives relevant to motion control products

Up to 32 drives can be daisy chained via RS-232C

Non-volatile memory stores up to 64 motion programs

7-segment diagnostic display

Dedicated inputs for end-of-travel and home position switches

Ten user-definable inputs, 6 outputs

Sinking or sourcing outputs; software selectable

Optional remote panel or thumbwheel input

High-speed (15 �S) registration input

Installation and Performance Data The User Guide supplied with all PD-E Series drives provides detailed information on installation. The installation instructions must be closely followed if EMC compliance is to be maintained. They cover details such as mechanical mounting, safety earth connections and motor wiring. Since all necessary line filter components are an integral part of the drive, many potential problems associated with the mounting and wiring of external filter units are avoided.

The use of the correct motor cable and the method of termination are of prime importance. To comply with EMC, a CE (LVD) step motor and C10 option (LVD/EMC cable kit) are required.
