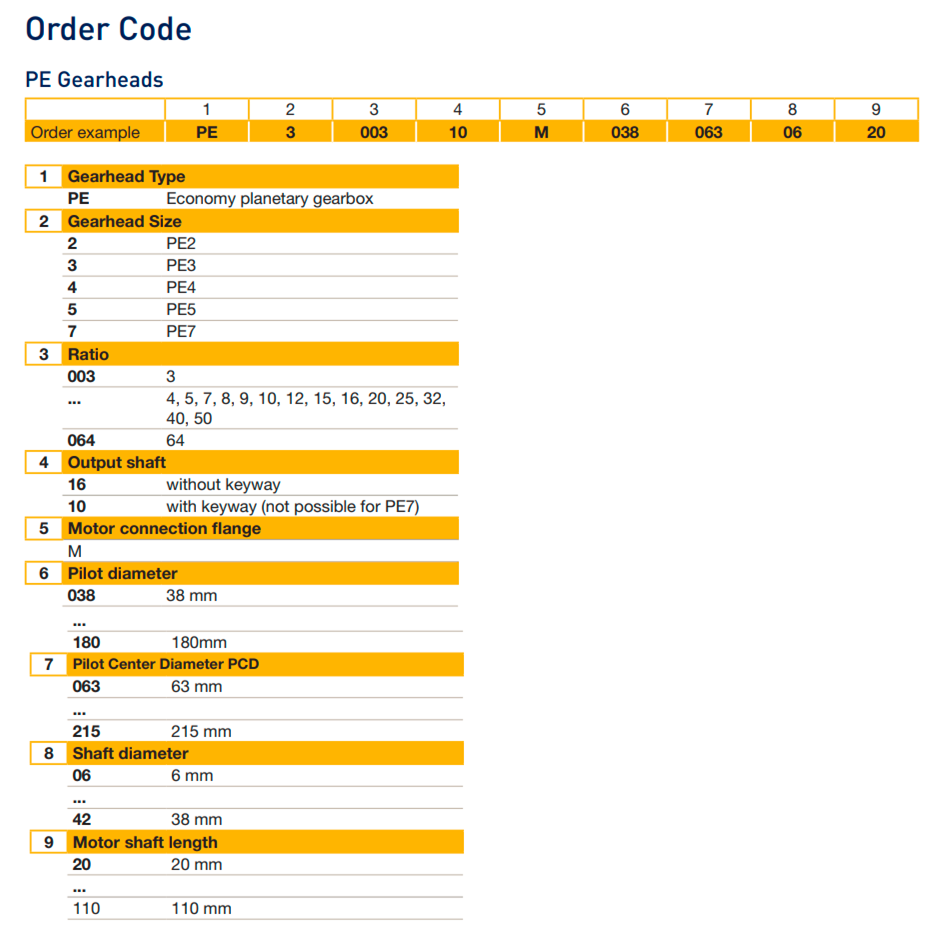

Description Ordering Information Specifications and Drawings


Parker: Standard Precision Inline Planetary Gearboxes (PE Series)PE3-003-10M038-063-06-20

The standard precision PE-series inline planetary gearheads are available in 60-115mm frame sizes and offer high torque, low backlash, high input speeds and a small package size with an excellent price/performance ratio.


The PE-series planetary gearbox is the perfect alternative to the PS-series for all applications where considerably low backlash is not of vital importance.

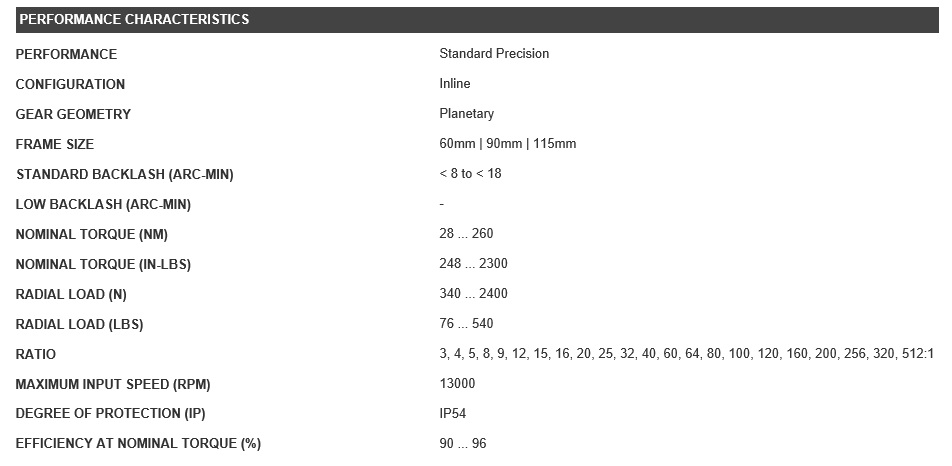

Features:

  • Frame Sizes: 60 – 115mm

  • Ratio Options: 3:1 - 512:1

  • Backlash: to < 8 arc-minutes

  • Efficiency: up to 96%

  • Quiet Operation: less than 65db

  • High Input Speeds: up to 8000 RPM

  • Excellent price/performance ratio

  • High output torques

  • PCS-2 system

  • High quality (ISO 9001)

  • Any fitting position possible

  • Simple motor fitting

  • Lifetime lubrication

  • Direction of rotation equidirectional

  • Balanced motor pinion




  • Model No.: PE2-003-10M038-063-06-20, PE3-003-10M038-063-06-20, PE4-003-10M038-063-06-20, PE5-003-10M038-063-06-20, PE7-003-16M038-063-06-20

Downloads:

192_753015 : Parker Planetary Gearheads - Catalog (English)
PE2_3D_CAD_Files_STP
PE3_3D_CAD_Files_STP
PE4_3D_CAD_Files_STP
PE5_3D_CAD_Files_STP
PE7_3D_CAD_Files_STP
