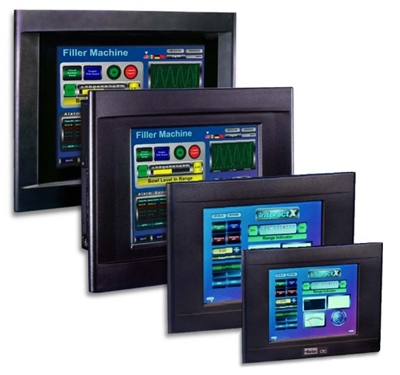

Parker: PowerStation (EPX2 InteractX Series)
The New Generation Affordable and Enhanced Reliability PowerStations for InteractX HMI Applications.
The EPX2 family of PowerStations are designed to bring the award winning power of InteractX to machine level HMI applications. This update to the popular EPX family is focussed on increasing robustness and reliability. New features Include:
Solid State CompactFlash based mass storage
Fan-less convection cooling
Windows® embedded standard operating system
Elimination of all moving parts for enhanced reliability
These design enhancements place the EPX2 among the most rugged and reliable InteractX PowerStations ever!
The new EPX2 industrial-hardened PowerStations provide big performance in a small platform. The EPX2 is the perfect platform for HMI only applications, offering the software power, features and flexibility normally reserved for SCADA level applications in a robust, cost effective hardware platform.
The small form factor EPX2 includes unlimited tag InteractX runtime Windows HMI. Unique InteractX screen scaling software allows advanced graphic applications to be downloaded and run on any EPX2 PowerStation*.
* EPX2 is the perfect platform for InteractX HMI applications, however, it is not designed to support extensive additional 3rd party software. For applications requiring database software or other additions, IPX PowerStations are recommended.
EPX2 PowerStation enhanced updates and core features include:
No display, 6”, 8”, 10.4” and 15” touchscreen displays
InteractX HMI Software
CompactFlash storage
AMD LX-800 CPU
2 USB ports
2 Serial ports
100BaseT Ethernet port
Multiple control device connectivity
Slim profile with consistent features
Quick and easy clip mounting
NEMA 4X rating
24 VDC power
