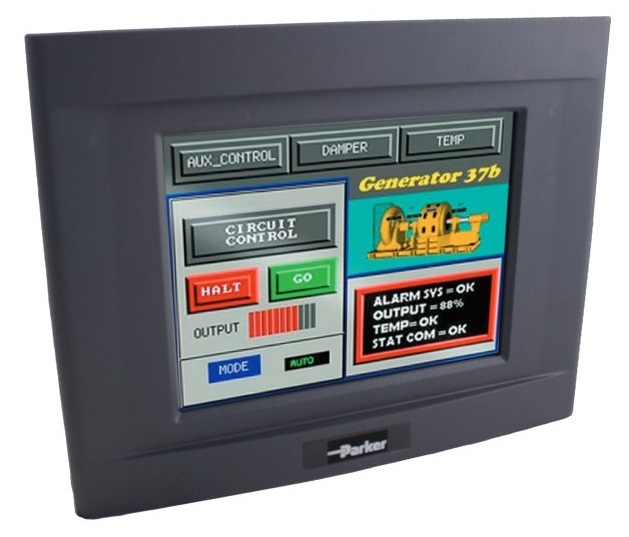

Parker: PowerStation (P13 Series)
The P13 PowerStation is a 6" touchscreen HMI panel containing the feature-rich Interact HMI runtime with Interact Panel Tools, Graphics, Alarm and Networking software modules. The P13 is the perfect replacement for the Parker P1, P1H or MotionPanel HMI.

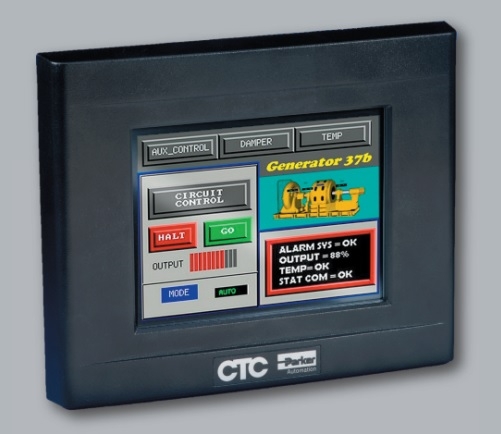

The new P13 PowerStation is the perfect replacement for the Parker CTC P1, P1H PowerStation or MotionPanel HMI. With the P13, you can run the same Interact HMI software and applications as your P1 – with no conversion necessary! You get the same Interact modules, expandability and communication drivers with the P13 – all on a more advanced hardware platform that drops into the same cutout as your P1. The P13 even offers a faster processor, brighter display, longer bulb life and a lower price than the original color P1. And since its Parker designed and manufactured, you get an industrial-hardened, NEMA 4/4X design with CompactFlash storage, 100-Base-T Ethernet connectivity and other powerful features that you've come to expect from a PowerStation.
Features and Functionality:
6” touchscreen display
Feature-rich Interact HMI with Interact Panel Tools, Graphics, Alarming and Networking software modules
Expandable with optional Interact software modules such as Historical Trending and advanced Recipe Management
Over 50 communication drivers - including Ethernet drivers
Multiple control device connectivity
CompactFlash non-rotating storage
2x Serial ports (1x RS-232 + 1x configurable RS-232/RS-422/RS-485)
100-Base-T Ethernet
Slim profile with consistent features
Quick and easy clip mounting
Type 4/4X rating
Fits P1/P1H/MotionPanel PowerStation cutout!
Brighter display and longer bulb life than P1!
Faster processor than P1!
No software conversion needed for existing P1 applications!
Technical Specifications:
Product Type: Automation Panel / Dedicated HMI
Display Size: 6"
Display Type: Color TFT
Interface Type: Analog Resistive Touchscreen
Maximum Screen Resolution (Pixels): 640x480
Backlight Life (Hours): 75,000
Operating System: ROM-DOS 6.11
HMI Software: Interact Runtime
I/O Ports: 2x USB | 1x RS-232 | 1x RS-232/422/485 | 1x 10/100 BaseT Ethernet
CPU: AMD LX700 (433 MHz)
System Memory (DRAM): 128MB
Client Data Storage: 512MB - 2GB (CompactFlash, type 1&2)
Input Supply Voltage: 12-24VDC
Operating Temperature (C): 0 ... 50
Operating Temperature (F): 32 ... 122
Operating Humidity: 5-95% (non-condensing)
Protection/Ingress Rating: NEMA 4X (Indoor Only)
Certificates: CE | UL/cUL | Class 1 Division 2 (optional)
Model No.: P1306Q, P1306V
