Parker: PowerStation P1306QT-Q3
Parker: PowerStation P1306QT-Q3

833-9MOTION [email protected].

Price: (Members Only)


Availability: Lead time is 1-3 weeks.
Order #: P1306QT-Q3
Qty:

Description Ordering Information Specifications and Drawings


Parker: PowerStation P1306QT-Q3

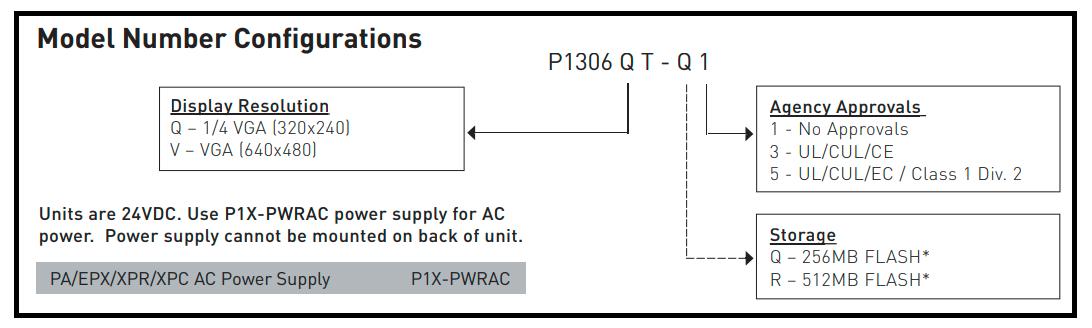

PARKER CTC: P13 SERIES POWERSTATION HMI, 6 INCH TOUCHSCREEN DISPLAY, 1/4 VGA (320X240) RESOLUTION, 256MB FLASH STORAGE, UL/CUL/CE APPROVAL

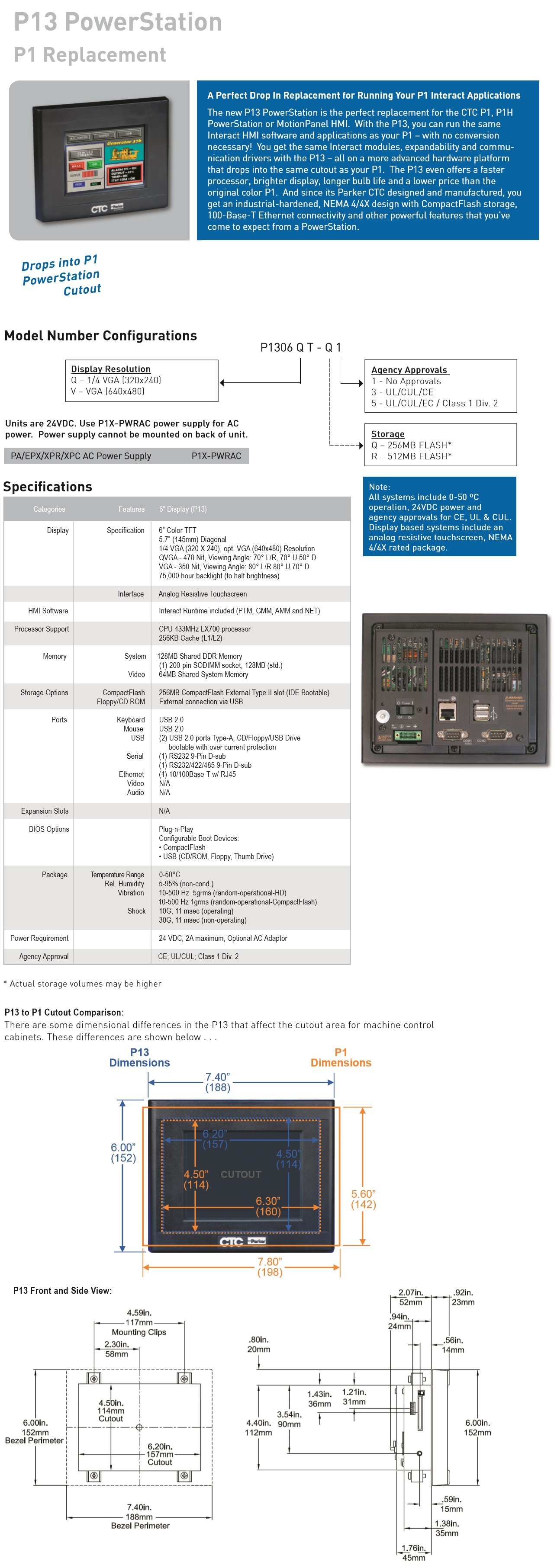

Parker: PowerStation (P13 Series)

The P13 PowerStation is a 6" touchscreen HMI panel containing the feature-rich Interact HMI runtime with Interact Panel Tools, Graphics, Alarm and Networking software modules. The P13 is the perfect replacement for the Parker P1, P1H or MotionPanel HMI.


The new P13 PowerStation is the perfect replacement for the Parker CTC P1, P1H
PowerStation or MotionPanel HMI. With the P13, you can run the same Interact HMI software and applications as your P1 – with no conversion necessary! You get the same Interact modules, expandability and communication drivers with the P13 – all on a more advanced hardware platform that drops into the same cutout as your P1. The P13 even offers a faster processor, brighter display, longer bulb life and a lower price than the original color P1. And since its Parker designed and manufactured, you get an industrial-hardened, NEMA 4/4X design with CompactFlash storage, 100-Base-T Ethernet connectivity and other powerful features that you've come to expect from a PowerStation.


Features and Functionality:

  • 6” touchscreen display

  • Feature-rich Interact HMI with Interact Panel Tools, Graphics, Alarming and Networking software modules

  • Expandable with optional Interact software modules such as Historical Trending and advanced Recipe Management

  • Over 50 communication drivers - including Ethernet drivers

  • Multiple control device connectivity

  • CompactFlash non-rotating storage

  • 2x Serial ports (1x RS-232 + 1x configurable RS-232/RS-422/RS-485)

  • 100-Base-T Ethernet

  • Slim profile with consistent features

  • Quick and easy clip mounting

  • Type 4/4X rating

  • Fits P1/P1H/MotionPanel PowerStation cutout!

  • Brighter display and longer bulb life than P1!

  • Faster processor than P1!

  • No software conversion needed for existing P1 applications!


Technical Specifications:

  • Product Type: Automation Panel / Dedicated HMI

  • Display Size: 6"

  • Display Type: Color TFT

  • Interface Type: Analog Resistive Touchscreen

  • Maximum Screen Resolution (Pixels): 640x480

  • Backlight Life (Hours): 75,000

  • Operating System: ROM-DOS 6.11

  • HMI Software: Interact Runtime

  • I/O Ports: 2x USB | 1x RS-232 | 1x RS-232/422/485 | 1x 10/100 BaseT Ethernet

  • CPU: AMD LX700 (433 MHz)

  • System Memory (DRAM): 128MB

  • Client Data Storage: 512MB - 2GB (CompactFlash, type 1&2)

  • Input Supply Voltage: 12-24VDC

  • Operating Temperature (C): 0 ... 50

  • Operating Temperature (F): 32 ... 122

  • Operating Humidity: 5-95% (non-condensing)

  • Protection/Ingress Rating: NEMA 4X (Indoor Only)

  • Certificates: CE | UL/cUL | Class 1 Division 2 (optional)
