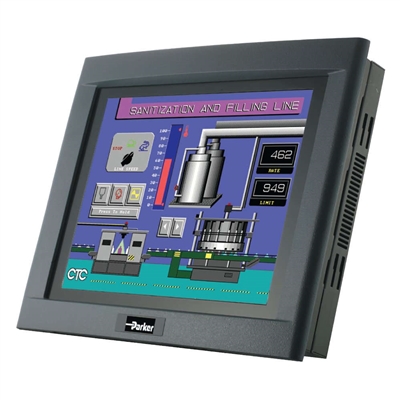

Parker: PowerStation (PA2 Series)

The PA2 PowerStation touchscreen HMI panels are offered with screen sizes of 6"-15", plus a no-display option. All units contain the feature-rich Interact HMI runtime with Interact Panel Tools, Graphics, Alarm and Networking software modules.


The new PA2 family of
PowerStations is Parker-designed and manufactured to be an economical push button panel replacement solution with the option to include advanced software features. Including no-display option, 6”, 8”, 10.4” and 15” color touchscreen displays, all units combine the connectivity, functionality and expandability of Interact HMI software with standard hardware features such as TFT displays, CompactFlash storage, RS-232, RS-422/485 and 100BaseT Ethernet ports. The PA2 family of touchscreen HMI have been designed as a direct drop in replacement for our popular PA family of PowerStations. The PA2 offers new higher performance processors and TFT displays in all sizes.


Features and Functionality:

  • No-Display, 6”, 8”, 10.4” and 15” Touchscreen Displays

  • Feature-rich Interact HMI with Interact Panel Tools, Graphics, Alarming and Networking software features

  • Expandable with optional Interact software modules such as Historical Trending and advanced recipe management

  • Flexible connectivity including 60+ communication drivers - including Ethernet drivers

  • CompactFlash storage

  • 2x USB 2.0 ports

  • 2x Serial ports (1x RS-232 + 1x configurable RS-232/RS-422/RS-485)

  • 100-Base-T Ethernet

  • Multiple control device connectivity

  • Slim profile with consistent features

  • Quick and easy clip mounting

  • Type 4/4X rating

  • Designed for easy “drop-in” replacement of our PA family PowerStations and many other popular operator panels

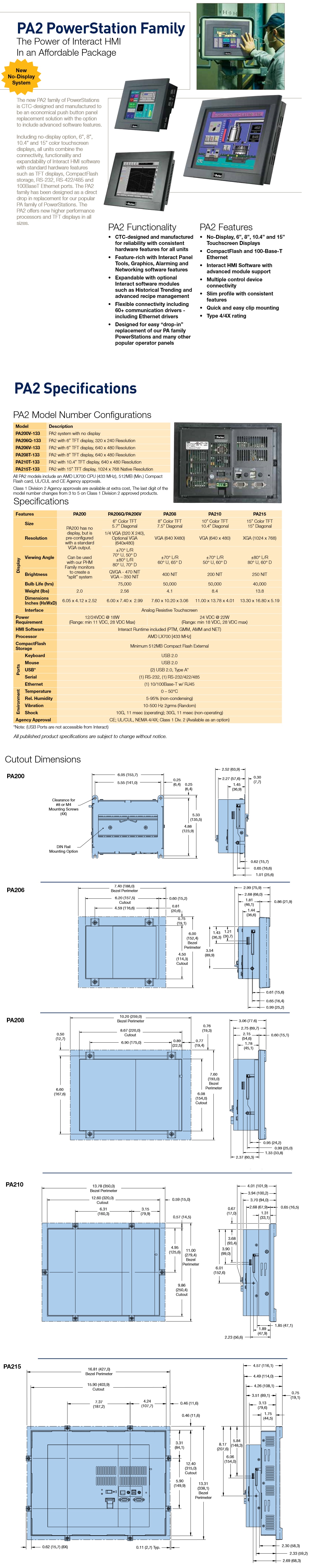

Technical Specifications:

  • Product Type: Automation Panel / Dedicated HMI

  • Display Size: 6" | 8" | 10" | 15" | No Display

  • Display Type: Color TFT

  • Interface Type: Analog Resistive Touchscreen

  • Maximum Screen Resolution (Pixels): 6" - 10": 640x480 | 15": 1024x768

  • Backlight Life (Hours): 6": 75,000 | 8 - 10": 50,000 | 15": 40,000

  • Operating System: ROM-DOS 6.11

  • HMI Software: Interact Runtime

  • I/O Ports: 2x USB | 1x RS-232 | 1x RS-232/422/485 | 1x 10/100 BaseT Ethernet

  • CPU: AMD LX700 (433 MHz)

  • System Memory (DRAM): 256MB - 1GB

  • Client Data Storage: 512MB - 8GB (Compact Flash)

  • Input Supply Voltage: 12-24VDC (6"/No Display) | 24VDC (8"-15")

  • Operating Temperature (C): 0 ... 50

  • Operating Temperature (F): 32 ... 122

  • Operating Humidity: 5-95% (non-condensing)

  • Protection/Ingress Rating: NEMA 4X (Indoor Only)

  • Certificates: CE | UL/cUL | Class 1 Division 2 (optional)

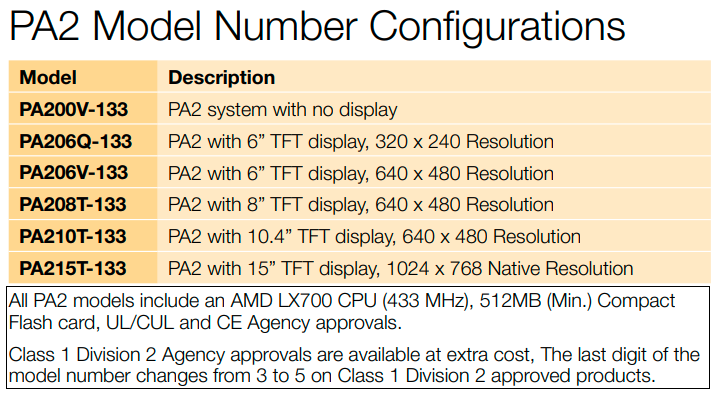

Model No.
: PA200V-133, PA200V-135, PA206Q-133, PA206Q-135, PA206V-133, PA206V-135, PA208T-133, PA208T-135, PA210T-133, PA210T-135, PA215T-133, PA215T-135
