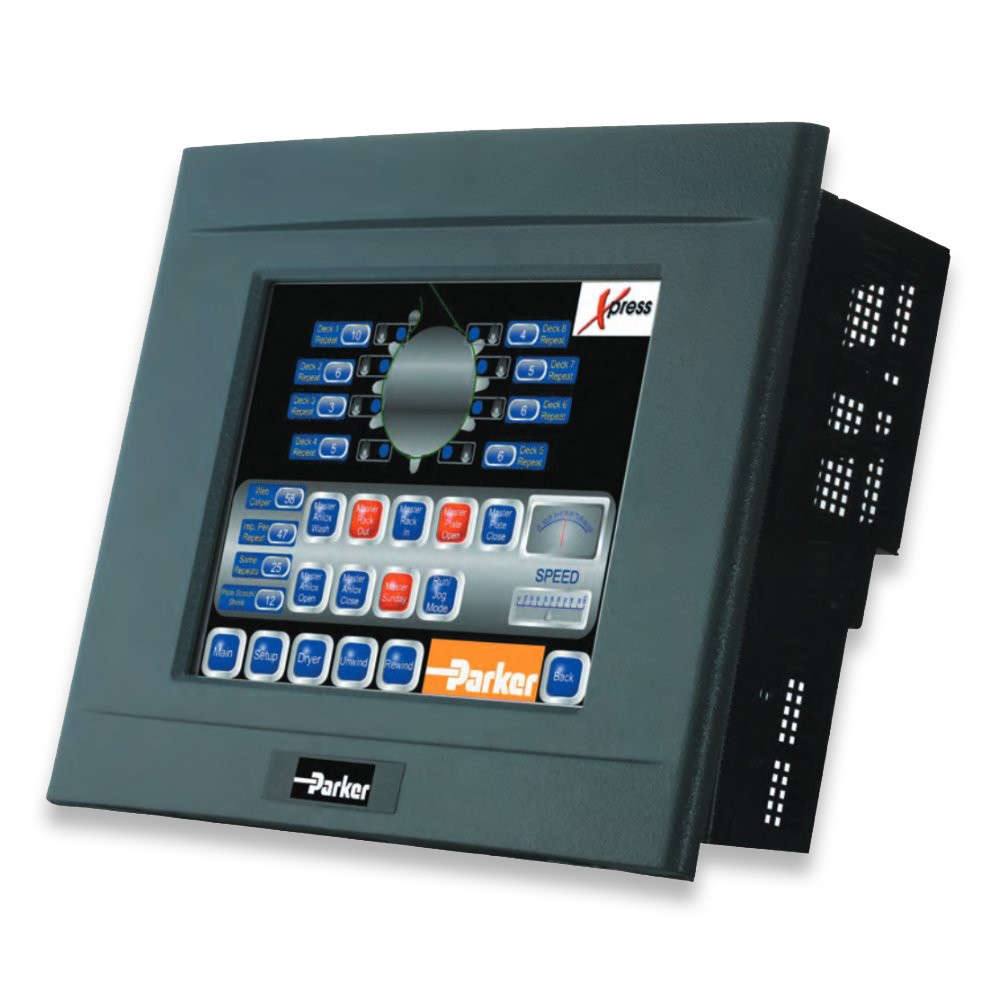

Parker: PowerStation (XPR2 Series) XPR2 PowerStation touchscreen HMI panels have 6"-15" screens plus a no-display option and come bundled with the award winning Interact Xpress HMI software - offering web publishing which allows you to run, view & edit your HMI application from anywhere.
The XPR2 family of touchscreen HMI's set a new standard as a durable and affordable platform for Interact Xpress HMI applications. All XPR2 models are designed to be the perfect complement to our Interact Xpress HMI software by offering a rugged industrial design. Available with either no display or a screen size from 6"-15", all XPR2 PowerStations include 2 Serial ports, 2 USB ports, a 10/100BaseT ethernet port and 512MB of CompactFlash. The award winning Interact Xpress HMI software is bundled on every XPR2 PowerStation, offering the Industry's best performing web publishing of HMI applications.
The second generation XPR2 PowerStation family offers a hardware/software solution that is optimized for harsh environments. The XPR2's Interact Xpress™ HMI software is designed specifically to simplify and cost reduce HMI applications. Interact Xpress takes full advantage of the internet and the wide availability of web browsers to design, publish, run and support your HMI applications without the cost and complexity of desktop Windows software and hardware. The bundled Xpress HMI runtime software offers the flexibility of Adobe Flash™ based web publishing that allows you to run, view and even edit your HMI application from anywhere.
No display, 6", 8", 10” and 15" touchscreen display options:
6" TFT: 320x240 (QVGA) or 640x480 (VGA) / - 8" & 10" TFT: 640x480 (VGA)
12" TFT: 1024x768 (XGA) / - No Display: 1024x768 (XGA) analog output Slim profile with consistent features Interact Xpress HMI software - with web publishing CompactFlash storage (type 1&2) AMD LX-800 CPU Multiple control device connectivity Quick and easy clip mounting 2x USB 2.0 ports 2x Serial ports (1x RS-232 + 1x configurable RS-232/RS-422/RS-485) 1x 100BaseT Ethernet port Tested for UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment
Technical Specifications:
Product Type: Automation Panel / Dedicated HMI Display Size: 6" | 8" | 10" | 15" | No Display Display Type: Color TFT Interface Type: Analog Resistive Touchscreen Maximum Screen Resolution (Pixels): 6" - 10": 640x480 | 15": 1024x768 Backlight Life (Hours): 6": 75,000 | 8 - 10": 50,000 | 15": 40,000 Operating System: Windows CE 5 HMI Software: Interact Xpress I/O Ports: 2x USB | 1x RS-232 | 1x RS-232/422/485 | 1x 100 BaseT Ethernet CPU: AMD LX800 (500 MHz) System Memory (DRAM): 256MB – 1GB Client Data Storage: 512MB | 1GB | 8GB (CompactFlash, type 1&2) Input Supply Voltage: 12-24VDC (6"/No Display) | 24VDC (8"-15") Operating Temperature (C): 0 ... 50 Operating Temperature (F): 32 ... 122 Operating Humidity: 0-95% (non-condensing) Protection/Ingress Rating: UL NEMA Type 4X (Indoor Use Only) or NEMA Type 12 Environment | Stainless Steel bezel optional on 15" Certificates: CE | UL/cUL | Class 1 Division 2 (optional)

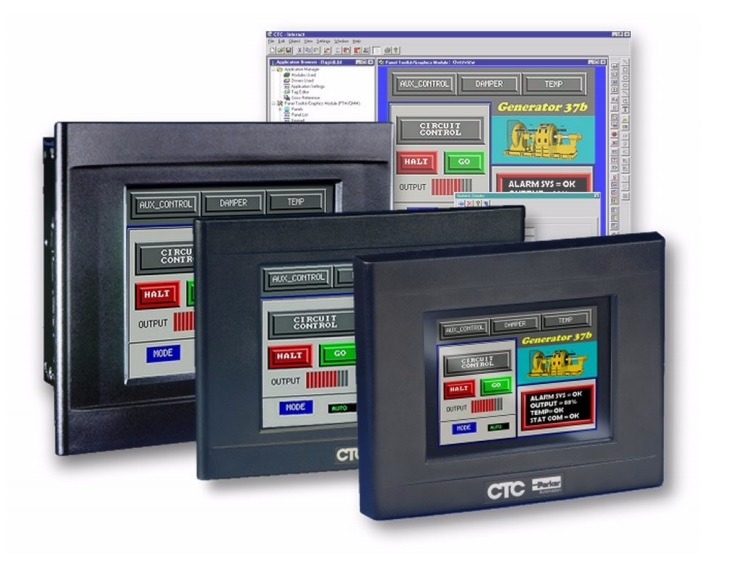

Interact Xpress XPR2 Series - Distributed Human Machine Interface in a durable and affordable package
Take full advantage of the web for; panel pc design, publishing, runtime and support:
Interact Xpress fully leverages the wide availability of web browsing software to enable distributed HMI software, remote support and application sharing on the internet and IP networks. Interact Xpress HMI applications are developed, edited, published and run in an operator panel that is a web server, allowing users and OEMs to easily publish upgrades and applications to any global location with an internet connection and a web browser. Interact Xpress combines a rich, graphical runtime interface with HMI development tools that can be accessed from either the touch panel or any PC running Internet Explorer®.
Complete Transparency and Supervisory Control:
Interact Xpress provides your system an industrial pc with a connection to the rest of the company or the rest of the world. It offers a completely web-published environment where any plant-floor data or information can be accessed from any web browser with an Ethernet connection to the XPR PowerStation on your machine. Pre-built template screens for common functions reduce your time to market Easy, object-based screen development using a "tool bin" of pre-configured panels tools and drag-and-drop editing Panel tools include pushbuttons, numeric entry, selection entry, numeric displays, bar graphs, meters, gauges, sliders, message displays, time/date display and more 3-D, shaded panel tool graphic are available in multiple styles with no additional work Integrated tag editor with drag and-drop tools and import/export to Excel and other software packages Includes an integrated graphics library Jpeg (.jpg) and Flash (.swf) image support Complex animation capabilities and video support Weblink support Pre-configured alarm tool with automatic collection of historical alarm data Real time trend display capability: Up to 1000 point historical buffer Any tag or expression can be used for values Multi Language support: Support export applications Easily export an application and translate all text, using standard tools
Parker's HMI with InteractX SCADA delivers your plant-floor data wherever it's needed, when it's needed.

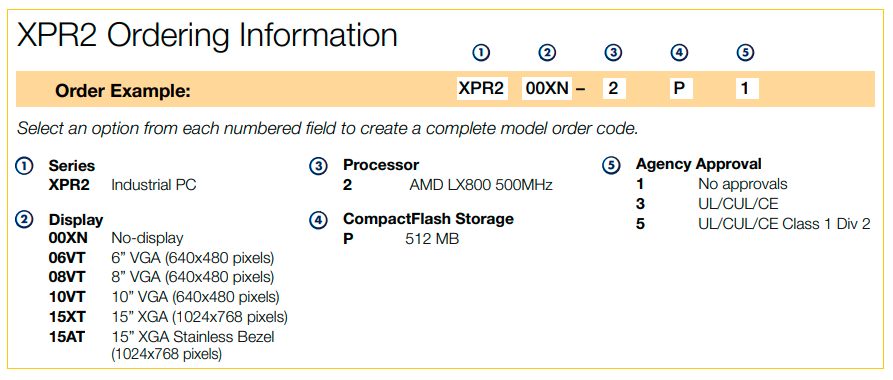

Model No.: XPR200XN-2P3, XPR206VT-2P3, XPR208VT-2P3, XPR210VT-2P3, XPR215AT-2P3*, XPR215XT-2P3
