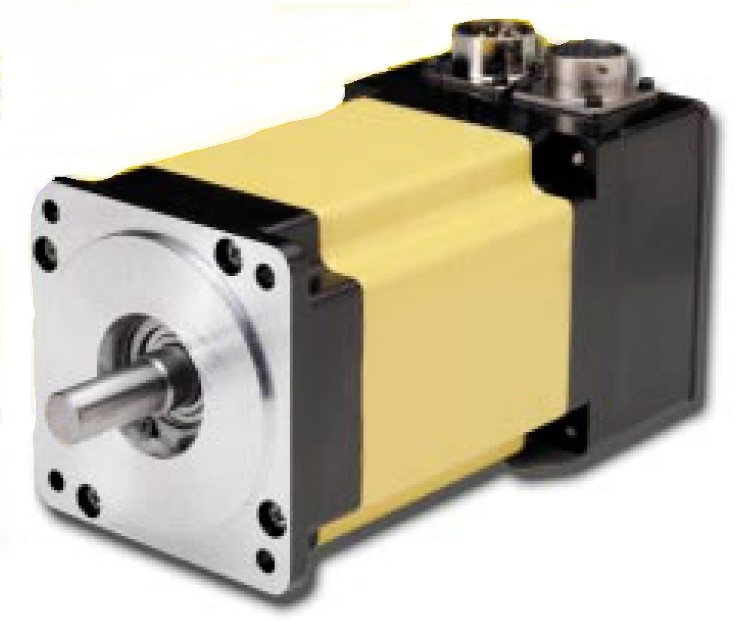

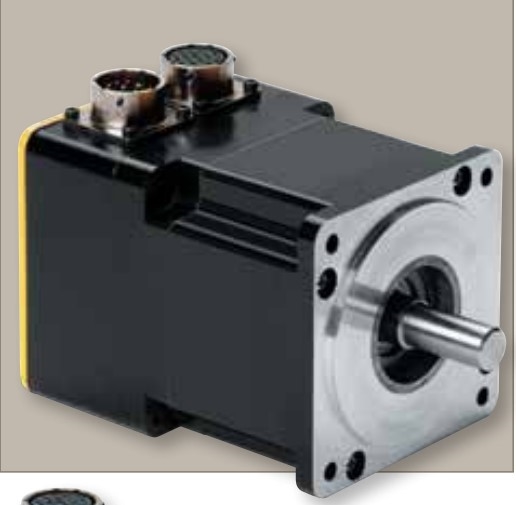

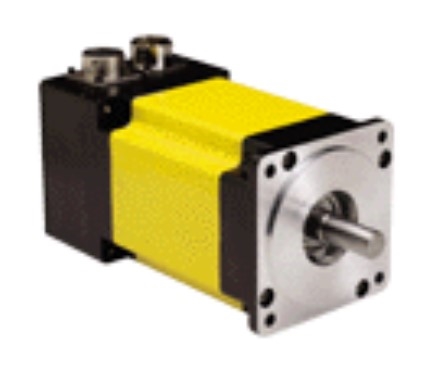

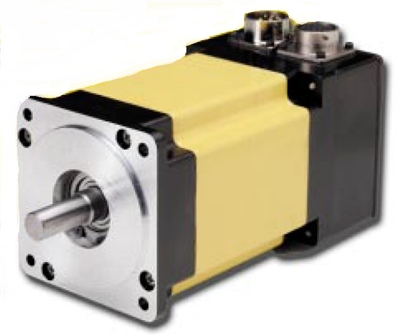

Parker: Rotary Servo Motors (BE Series)
Parker’s BE Series
brushless servo
motors produce
high continuous
stall torque in a
cost-saving and
performance enhancing
package. The BE Series is designed specifically
as a very cost-effective alternative
to comparably sized servos. The BE
Series also provides exceptional torque
with the design’s increased number
of magnetic poles. Comparably sized
servos have four magnetic poles on
the rotor, while BE Series motors have
eight.
Unlike traditional servo motors, the
BE Series does not have a separate
metal housing. Instead, the motor
stator laminations are not only used for
performance, but provide both structural
integrity and the motor shape. This design
reduces both material costs and the time
required to assemble the motor.
In addition to the manufacturing
advantages, the exposed laminations
reduce thermal resistance. This allows the
heat generated by the motor to escape to
the ambient surroundings more efficiently,
thus improving time in the peak region
and duty cycle.
Parker’s wide range of Bayside® planetary
gearheads are perfectly matched to the
BE Series motor. Easy selection can be
made using Parker’s MotionSizer.
Features
• NEMA 16, 23, and 34 sizes
• From 1.4 to 46.8 in-lb (5.24 Nm)
continuous torque
• Brushless construction
• Eight-pole open-lamination
design provides increased torque
and lower cost
• High torque density packaging
• Bridged stator design – quiet
operation
• High performance neodymium
magnets
• Thermoswitch protection on
NEMA 23 and 34 sizes
• 2000 line encoder standard (8000
ppr post-quad)
• Resolver feedback option
• Several connector design choices
• Holding brake option available on
size 34, custom order on size 23
• Custom modifications available
• Industry-leading 10-day delivery
• Two year warranty
• STP solid models and CAD

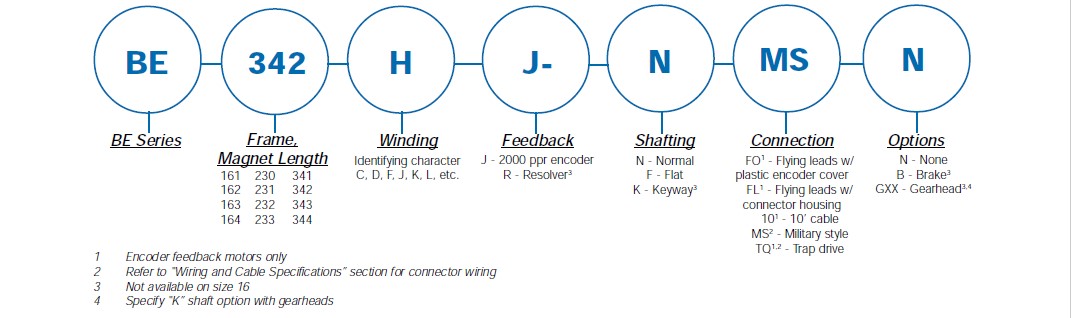

Options: BE162CJ-NFON, BE164CJ-NFON, BE231DJ-NFLN, BE231DJ-NLCN, BE231DJ-NPSN, BE231FJ-N10N, BE231FJ-NFON, BE232DJ-N10N, BE232DJ-NLCN, BE232DJ-NPSN, BE232FJ-N10N, BE232FJ-NFON, BE232FJ-NLCN, BE232FJ-NPSN, BE233DJ-N10N, BE341FJ-NLCN, BE341FJ-NPSN, BE342HJ-KLCB, BE342HJ-KPSB
|
|
|
 |
|
 |
|
