Parker: Rotary Servo Motors (SM Series)
Alternate View
Price:
(Members Only)
Availability:
Subject to availability
Order #:
SM
Options:
SM161AE-N10N [Add (Members Only)]
SM161AE-NFLN
SM161AE-NLCN [Add (Members Only)]
SM161AE-NPSN [Add (Members Only)]
SM162AE-NFLN [Add (Members Only)]
SM162AE-NLCN [Add (Members Only)]
SM162AE-NPSN [Add (Members Only)]
SM231AE-NFLN [Add (Members Only)]
SM231AE-NLCN [Add (Members Only)]
SM231AE-NPSN [Add (Members Only)]
SM232AE-NFLN [Add (Members Only)]
SM232AE-NLCN [Add (Members Only)]
SM232AE-NPSN [Add (Members Only)]
SM232BE-NFLN [Add (Members Only)]
SM232BE-NLCN [Add (Members Only)]
SM232BE-NPSN [Add (Members Only)]
SM233AE-NFLN [Add (Members Only)]
SM233AE-NLCN [Add (Members Only)]
SM233AE-NPSN [Add (Members Only)]
Qty:
Description

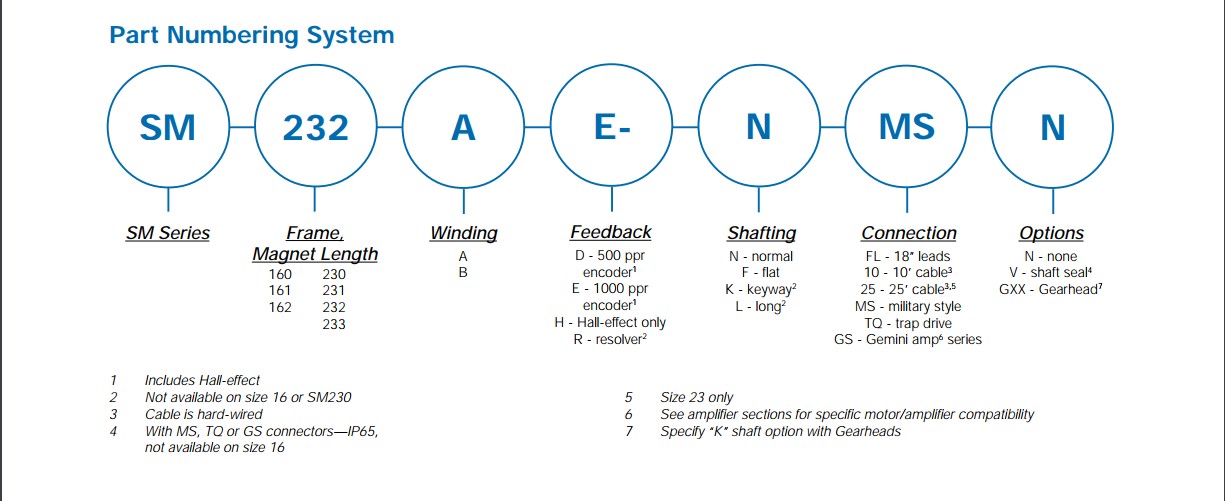

Ordering Information

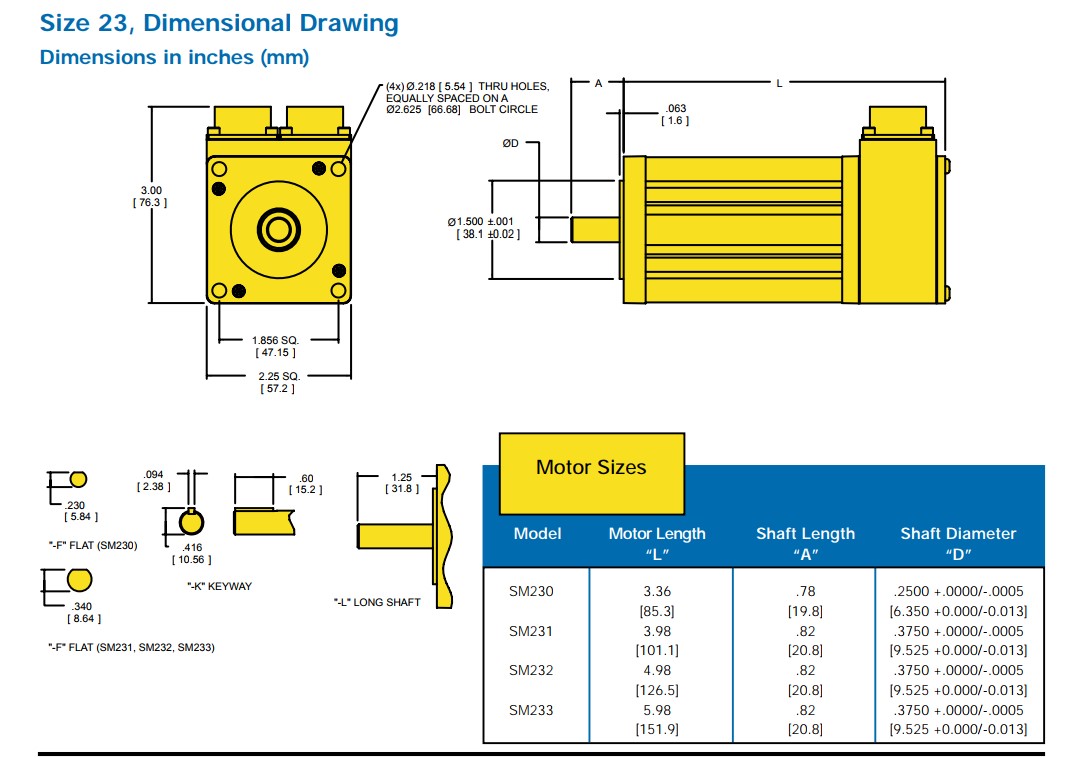

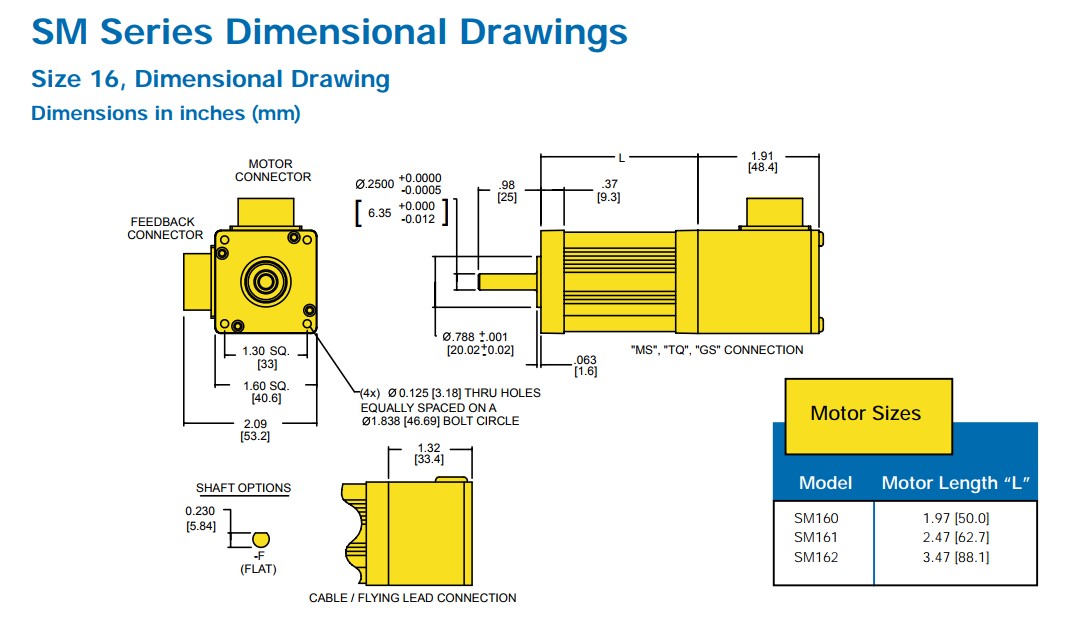

Specifications and Drawings

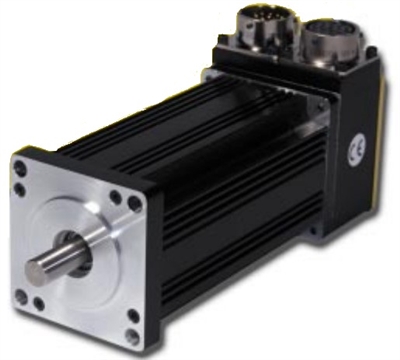

Parker: Rotary Servo Motors (SM Series)
Parker’s
SM Series brushless servo motors feature a slotless stator design. This design eliminates all detent torque in the motor, allowing the SM Series motors to provide extremely smooth motion, especially at low speeds. The slotless design also creates a higher rotor inertia, which is ideal for applications involving high inertial loads (such as lead screws and belt drives).
The SM Series motors also feature a rugged anodized aluminum body and connector housing. An IP65 rating can be obtained on motors with MS connectors and an optional shaft seal. All SM motors are CE (LVD) compliant.
The SM Series servo motors are available with integrated planetary gearheads in ratios up to 100:1. Our unique package integrates the gearhead pinion into the motor shaft, reducing the overall package length by up to 2 inches.
Features
• Size 16 and 23
• 0.8 to 11.3 lb-in continuous torque
• Brushless construction
• Slotless design – Negligible detent torque – Reduced torque ripple – Medium inertia
• High-performance neodymium magnets
• Thermostat protected • TENV housing
• IP65 option • Feedback options – Encoder/Hall effect – Hall-effect only – Resolver
• Connectorization choices
• Special winding availability
• Ten day deliveries
• Two-year warranty
• CAD (.dxf) drawings available
• CE Compliant
