Parker

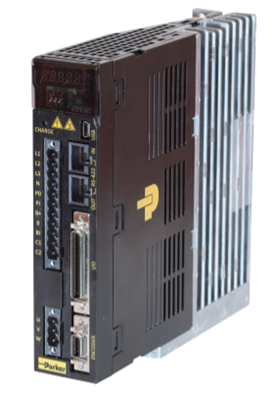

Servo Systems P Series (PD-04P)
Compact
Servo Drive - P Series
The P-Series
drives operate with a variety of machine control architectures and offer
sophisticated servo functionality. The best matches are the P-Series motors,
which includes absolute encoders and populate motor nameplate data back to the
drives for simplified commissioning.
·
EtherCAT
for high-speed motion bus
·
Step/Direction
and �10V velocity/torque (2 inputs)
·
Indexer
mode for pres-set positioning
·
USB
communications for convenient set-up
·
Rotary
or linear servo motor control
·
400
to 3.5kW power output
·
BiSS-C
and Endat2.2 absolute feedback
·
Quadrature
encoder and Analog sin/cos
·
120/240VAC
single and three-phase power input
·
Configurable
Dynamic Braking response
·
16
digital inputs/ 8 outputs, 2analong in/out with pulse/indexer models
·
8
inputs/ 4 outputs with EtherCAT models
·
Safe
Torque Off (EtherCAT models)
·
CE
(EMC & LVD), UL recognized
The new
Parker P Series servo system combines compact, flexible, advanced functionality
drives with high performance motors for a superior servo system, providing unique
value to machine builders.The P-Series
drives operate with a variety of machine control architectures and offer
sophisticated servo capability. A number of different feedback types are
supported to drive a wide range of linear and rotary servo motors. The best
matches are the P-Series motors, which include absolute encoders and populate
motor nameplate data back to the drives for simplified commissioning.
Accurate and
easy to use inertia detection leads to fast set-up of tuning parameters and
minimal settling time. Advanced filtering and vibration suppression features
can be used to increase throughput and improve positioning performance.
The Pulse
version of the drive can be configured for step and direction control input and
includes analog inputs for torque or velocity control. Select Indexer mode to
create up to 64 position table entries triggered via inputs or over a RS422
interface
For high
speed, real-time network applications, the P-Series is available with EtherCAT,
the fastest growing, most flexible industrial Ethernet protocol. Ideal for use
with the Parker Automation Controller, the P-Series also follows the open
standards for EtherCAT
