Parker: Multi-Axis Motion Control (ACR 9000 Series) The ACR9000 is Parker’s premier standalone motion controller, capable of controlling up to 8 axes of motion. The ACR9000 excels as a standalone machine and motion controller, interfacing with or working alongside a PLC. The ACR9000 includes easy-to-use project development tools that enable fast, efficient application creation and maintenance. The ACR9000 is the solution for standalone applications requiring industry-leading performance in an affordable and easy-to-use package. Up to 8 axes of servo or stepper control Advanced multitasking of up to 24 simultaneous programs Interpolation of 8 axes in any combination 10/100 Base-T Ethernet USB 2.0 EtherNet/IP compatibility Absolute Encoder support via SSI ACRView Software Development Kit 24 VDC optically isolated onboard inputs and outputs CANopen expansion I/O 120/240 VAC power input DriveTalk™ – ACR9000 controller can access all drive parameters Multiple feedback options -Smart encoder, Quadrature encoder, Heidenhain EnDat absolute encoder, and resolver feedback supported. From 1 to 16A RMS continuous currents CE (EMC & LVD), UL Recognized

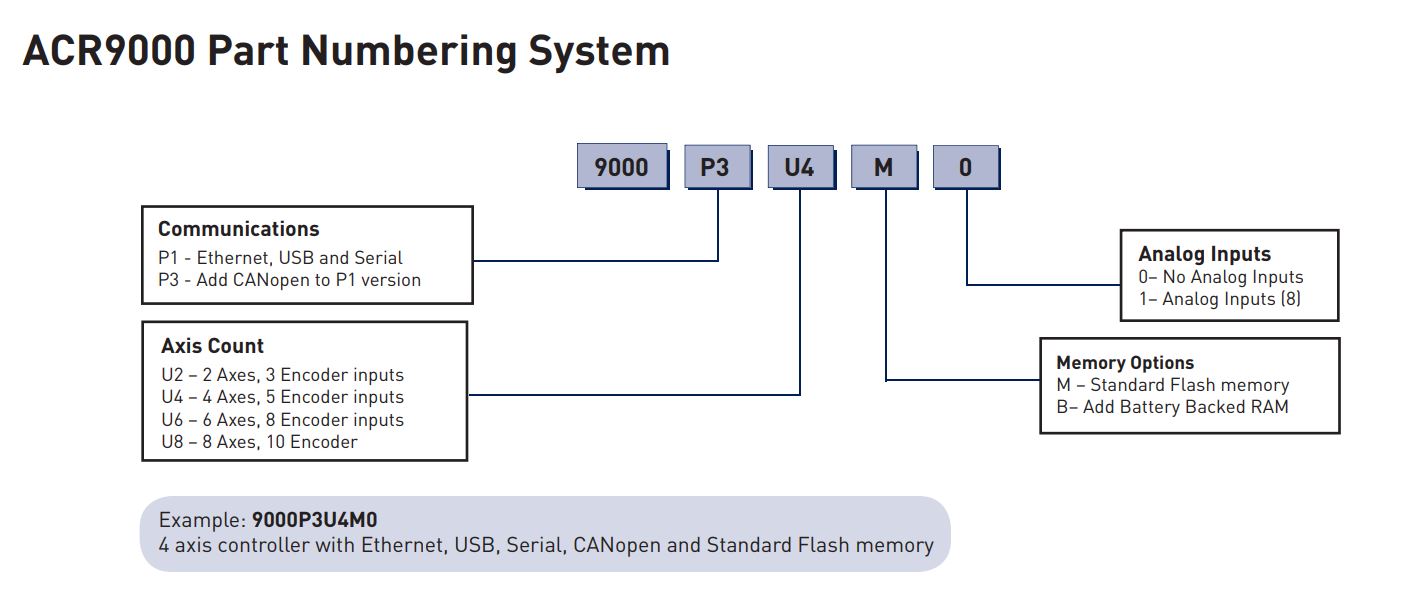

Model No.: 9000P1U2B0, 9000P1U2B1, 9000P1U2M0, 9000P1U2M1, 9000P1U4B0, 9000P1U4B1, 9000P1U4M0, 9000P1U4M1, 9000P1U6B0, 9000P1U6B1, 9000P1U6M0, 9000P1U6M1, 9000P1U8B0, 9000P1U8B1, 9000P1U8M0, 9000P1U8M1, 9000P3U2B0, 9000P3U2B1, 9000P3U2M0, 9000P3U2M1, 9000P3U4B0, 9000P3U4B1, 9000P3U4M0, 9000P3U4M1, 9000P3U6B0, 9000P3U6B1, 9000P3U6M0, 9000P3U6M1, 9000P3U8B0, 9000P3U8B1, 9000P3U8M0, 9000P3U8M1
* 9000P1U4MO IN STOCK (2) NEW!
* 9000P3U4B1 IN STOCK (1) NEW!
* 9000P1U6M1 IN STOCK (1) NEW!

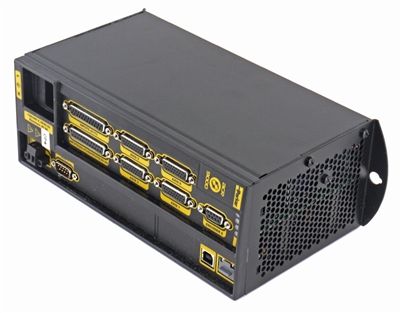

Parker: Standalone Motion Controller (ACR9000 Series)
