Parker: Stepper Drive (OEM650X)
The OEM650X Drive/Indexer is the same drive product as the OEM650, but it includes an indexer (position controller). The OEM650X is the same size as the OEM650 and it incorporates the same design technologies (bipolar, recirculating, microstepping drive designed to drive two-phase permanent magnet hybrid step motors, custom ASIC, surface mount, and MOSFET technologies).
The indexer utilizes commands from Compumotor’s popular and easy-to-use X Series Language. The indexer also provides additional I/O control and communication

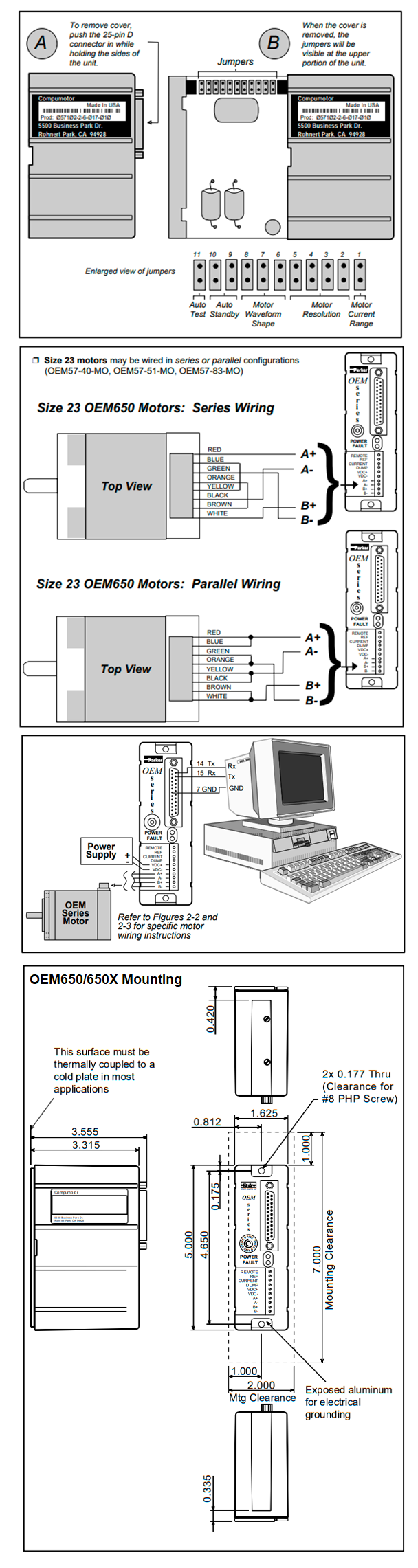

OEM650/ OEM650X Features:
• Microprocessor controlled microstepping provides smooth operation over a wide range of speeds.
• Full short circuit protection for phase-to-phase and phase-to-ground short circuits.
• Motor regeneration protection
• Over-temperature protection
• Uses low-inductance motors for improved high-speed performance (23, 34 frame size motors available with torques from 65 - 400 oz-in).
• Three-state current control for reduced motor/drive heating
• LED status indicators: POWER and FAULT (latched)
• Optically coupled step, direction, and shutdown inputs are compatible with all Compumotor indexers (25-pin D connector).
• A fault output to signal other equipment if a fault occurs
• 24VDC - 75VDC single power input
• 16 jumper selectable motor resolutions (200 - 50,800 steps/rev)
• Waveform correction and phase offset for improved smoothness
• Built-in indexer (position controller)

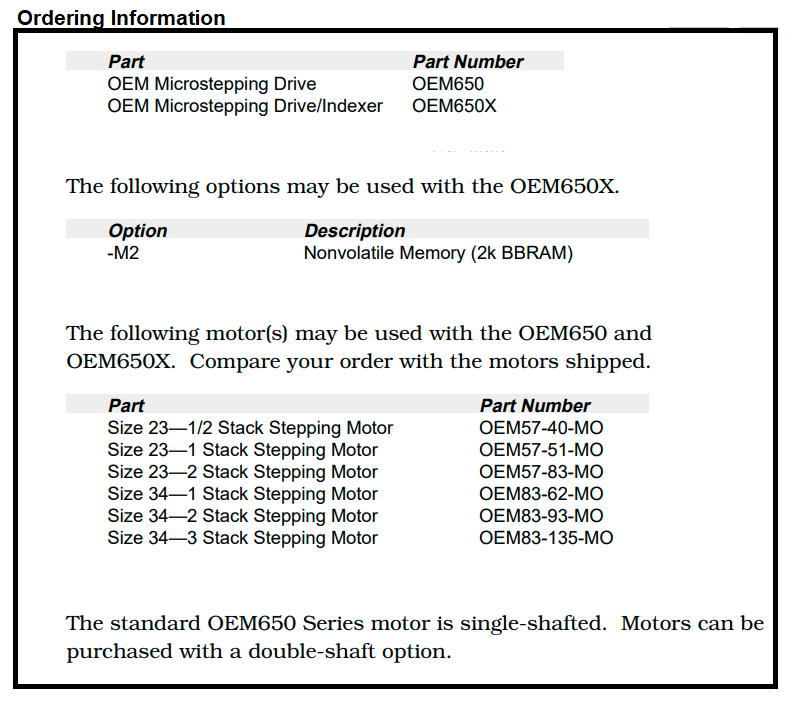

• M2 option allows users to store programmed sequences in nonvolatile memory
• I/O for motion and basic machine coordination
