Parker: Stepper Drive (OEMZL Series)

The OEMZL6 design is based upon the ZETA4. In terms of user documentation, the ZETA Drive Installation Guide is completely compatible with the OEMZL6 with the following exceptions:

OEMZL6 Drive Features:

• Active Damping – Active Damping is not incorporated into the OEMZL products. Please disregard this feature when mentioned in the User Guides listed above.

• Continuous Current –The ZETA4 and corresponding user guide is limited to 4 Amps of current. The OEMZL6 has 6 Amps of available user current. Dip Switch current settings are available in the OEMZL6 Stepper Drive Quick Reference Guide. This guide ships with each OEMZL6 drive.

• Motor Connector – The motor connector was changed from a 9-pin removable terminal to a 5-pin non-removable screw terminal. This was done due to the larger current capacity of the OEMZL6 drive.

• The Center tap terminals (A and B) are no longer available for wiring an 8-Lead motor in series. Customers will need to terminate these leads external to the connector. They can do this by simply soldering or tying the leads together that would have been wired into the Center tap A terminals and soldering or tying the leads together that would have been wired into the Center tap B terminals. Take care to properly insulate the aforementioned center tap wires.

• Additional Motors - The additional current in the OEMZL6 allows for use with higher power motors. These motors include: ES31P, ES32P, ES33P, RS31, RS32, RS33, TS31, TS32, and TS33. The speed/torque curves for these motor and drive combinations are found on the link below.

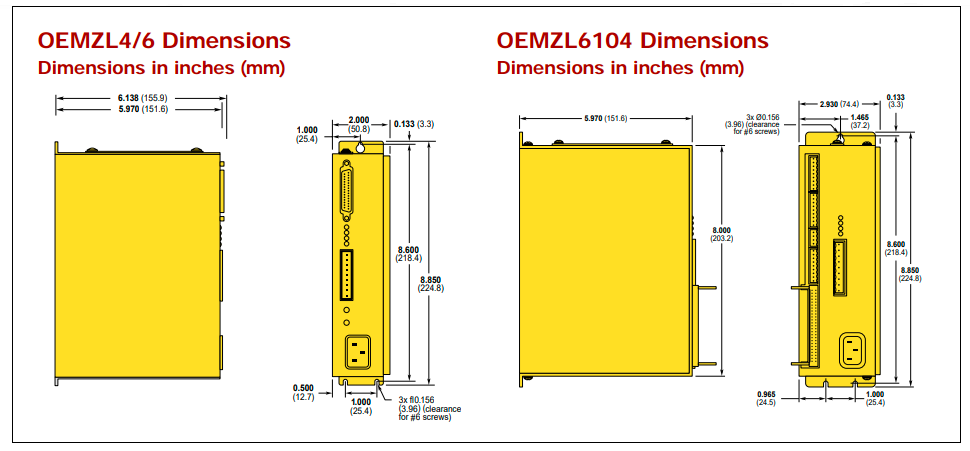

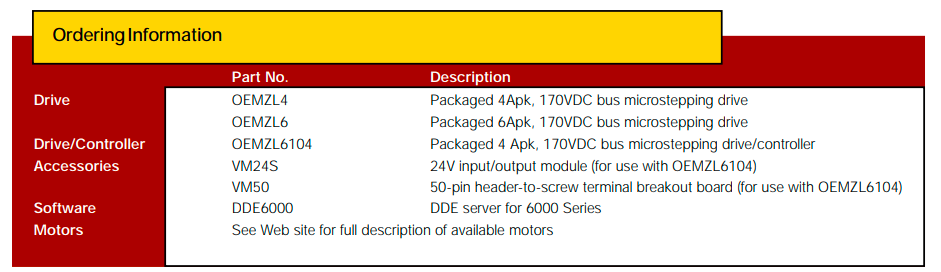

Model No.: OEMZL6, OEMZL6 KIT
