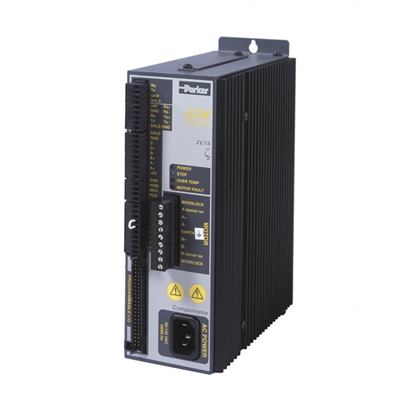

Parker: Stepper Drive (ZETA8 Series)
Parker: Stepper Drive (ZETA8 Series)


Price: (Members Only)


Availability: Subject to availability
Order #: ZETA8


Options:

Qty:

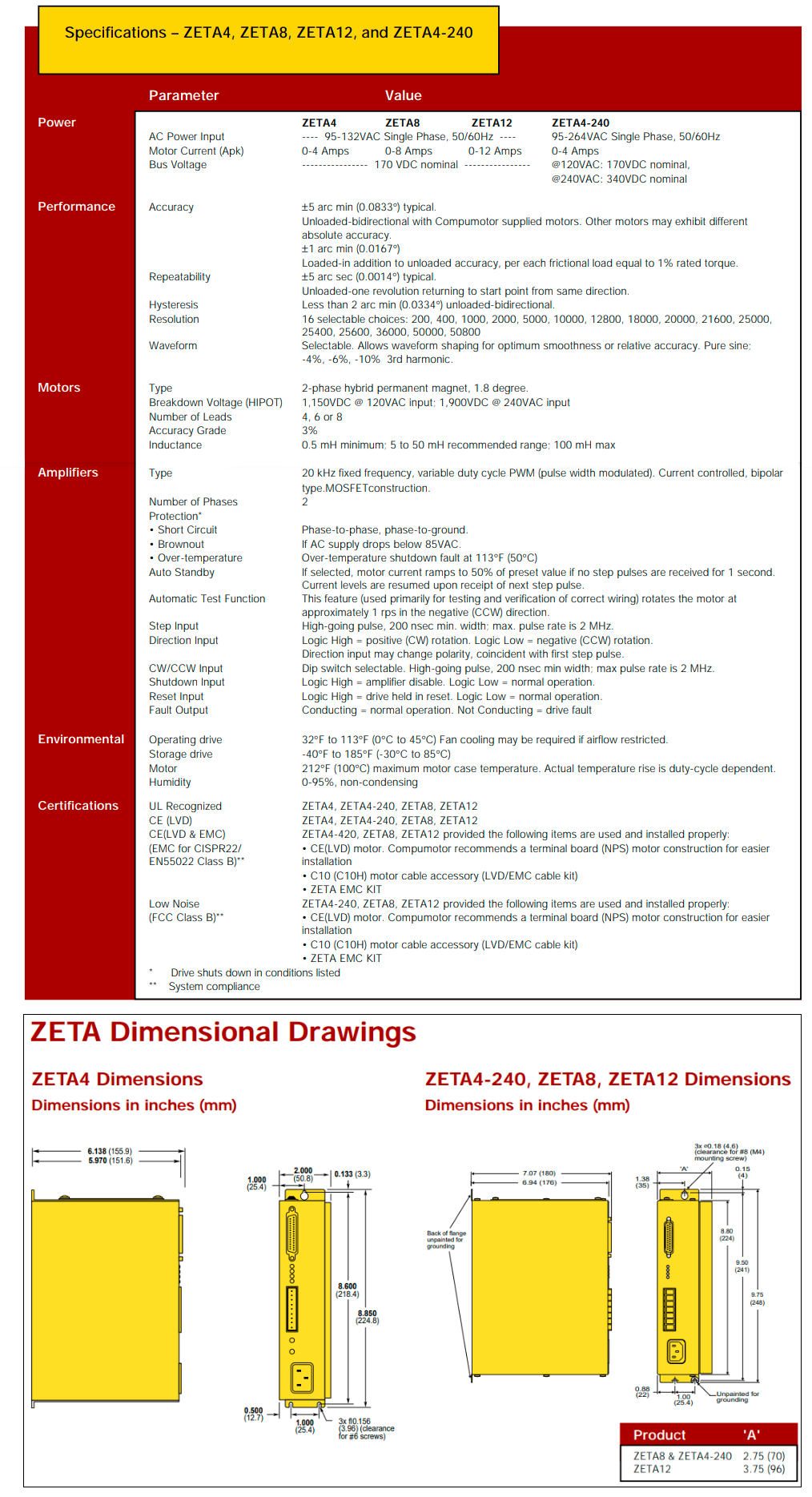

Description Ordering Information Specifications and Drawings


Parker: Stepper Drive (ZETA Series) Microstep Drive Only

Stand-alone, packaged microstepping drives that incorporate breakthrough techniques know as Active Damping™ (patented) and Electronic Viscosity™ (patent pending).


The ZETA family of drives come in 4 different power versions:

ZETA4, ZETA4-240, ZETA8 and ZETA12. Designed for reliability, the ZETA drive family offers premier quality and performance while being easy to use and apply. The ZETA drive family meets the need for global solutions:

  • CE (LVD), CE(LVD and EMC) or low-noise applications

  • UL Recognized

  • 120VAC and 240VAC versions

  • Packaged 8Apk, 170VDC bus microstepping drive


Features:

  • Standard step-and-direction input or CW/CCW input

  • Torque from 43 oz-in (0.30 N-m) to 3480 oz-in (24.4 N-m)


Active Damping™ Benefits:

  • Damping ratios of up to 0.5

  • Higher acceleration than conventional step systems

  • Decrease motor vibration

  • Increase shaft power

  • Higher performance


Electronic Viscosity™ Benefits:

  • Reduce settling time

  • Increase slow speed smoothness (reduce velocity ripple)

  • Reduce audible noise
Support Links
User Guide for ZETA8
