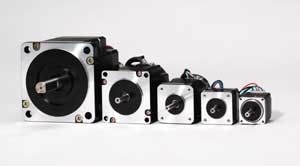

Parker: Stepper Motor (ES31B Series) Quality motors that give a smoother velocity performance. 23 and 34-frame S106 motors are 42-frame. For use with the GT and ZETA drives at 120VAC. ES23 and 34 motors are the same as the S and ZETA 57- and 83- motors. ES31B-DNR10: ES, 34F, 1ST, 170V, 10FT, DBL ES31B-SNR10: ES, 34F, 1ST, 170V, 10FT, SGL ES31B-SKR10: 34F, 1STK, 170V, 10FT, SGL, KEY ES31B-SFR10: ES, 34F, 1ST, 170V, 10FT, SGL ES31B-DNR10-EC: ES31, 170V, 10FT, ENCODER ES31B-DKR10-EC: ES31, 170V, 10FT, ENC, KEY
Model No.: ES31B-DKR10-EC, ES31B-DNR10, ES31B-DNR10-EC, ES31B-SFR10, ES31B-SKR10, ES31B-SNR10
|
Motor
Size
(mm)
|
Parameters
|
Static Torque
oz-in
(N-m)
|
Rotor inertia
oz-in2
(kg-m2 x 10â2)
|
Phase Inductance
Series/ Parallel
|
Drive Bus Voltage
(VDC)
|
Detent Torque
oz-in
(N-m)
|
Weight (net)
Motor+Cable +Connector
lb (kg)
|
|
Size 23 Frame
|
ES21B
|
117
(0.8)
|
0.546
(9.998)
|
17.37/4.34
|
170
|
1.4
(0.01)
|
1.6
(0.7)
|
|
ES22B
|
196
(1.4)
|
1.1
(20.1)
|
18.5/4.62
|
170
|
2.08
(0.01)
|
2.4
(1.1)
|
|
ES23B
|
264
(1.9)
|
1.69
(30.9)
|
17/4.25
|
170
|
2.78
(0.02)
|
3.2
(1.5)
|
|
Size 34 Frame
|
ES31B
|
255
(1.8)
|
3.47
(63.4)
|
10/2.5
|
170
|
1.94
(0.01)
|
3.8
(1.7)
|
|
ES32B
|
502
(3.5)
|
6.76
(124)
|
10.5/2.62
|
170
|
4.03
(0.03)
|
5.1
(2.3)
|
|
ES33B
|
655
(4.6)
|
10.47
(191)
|
9.2/2.3
|
170
|
5.55
(0.04)
|
8.3
(3.8)
|
All motors: Cable
length = 10 feet (3 m); attached connector is pre-wired for series currentParker Sizing and Selection
