Parker: Stepper Motor (HV Series)HV17

High-Performance Step Motors in a Wide Variety of Sizes and Voltages.

The LV (Low Voltage) and HV (High Voltage) motor series provides outstanding performance at a competitive price. The LV 11, 14 and 17 frame motors are ideal for space constrained or miniature-motion applications. This series also includes 23 and 34 frame sizes for larger applications requiring more torque. The LV motors are rated for use with drives running up to 80 VDC. The HV series includes 17, 23 and 34 frame motor sizes for use with drives running off of 120 VAC power

LV & HV Motor Features:

• High performance

• Cost effective

• Optimized motors for both low-voltage and high-voltage applications

• Three frame sizes from size 17 to 34

• Static torques from 5 to 1000 oz-in.

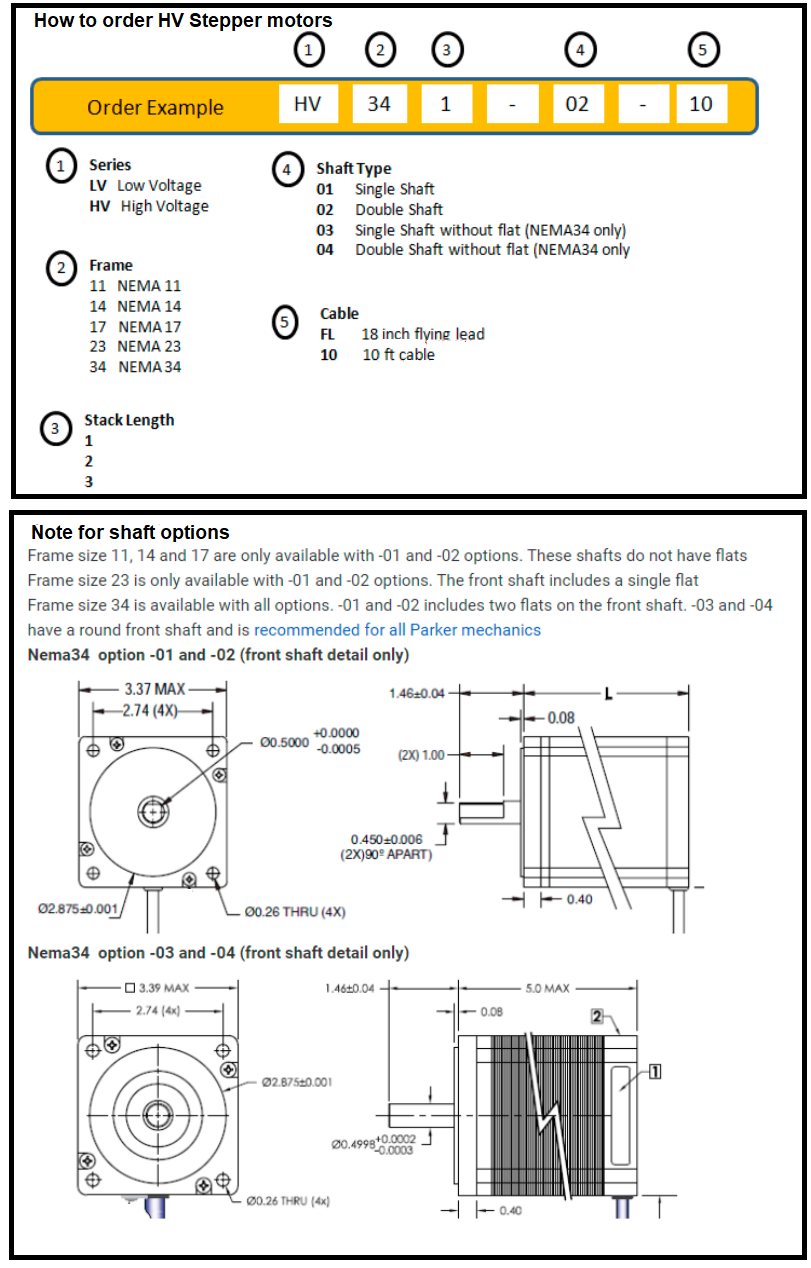

Model #: HV171-01-10, HV171-01-FL, HV171-02-10, HV171-02-FL, HV172-01-10, HV172-01-FL, HV172-02-10, HV172-02-FL, HV173-01-10, HV173-01-FL, HV173-02-10, HV173-02-FL

Parker LV & HV Series Stepper Motor PDF
