Parker: Stepper Motor (LV Series) Size 34 (LV34)
Parker: Stepper Motor (LV Series) LV34


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: LV34


Model No.:

Qty:

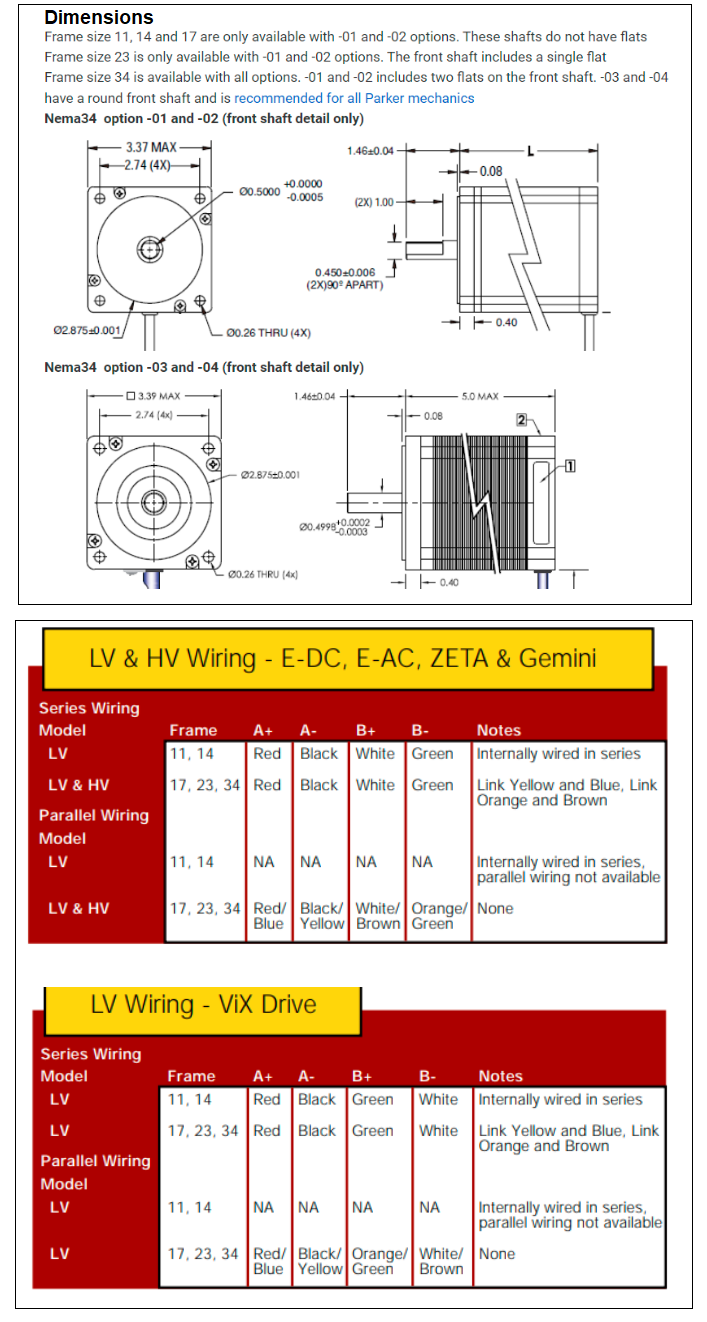

Description Ordering Information Specifications and Drawings


Parker: Stepper Motor (LV Series) LV34

High-Performance Step Motors in a Wide Variety of Sizes and Voltages.

The LV (Low Voltage) and HV (High Voltage) motor series provides outstanding performance at a competitive price. The LV 11, 14 and 17 frame motors are ideal for space constrained or miniature-motion applications. This series also includes 23 and 34 frame sizes for larger applications requiring more torque. The LV motors are rated for use with drives running up to 80 VDC. The HV series includes 17, 23 and 34 frame motor sizes for use with drives running off of 120 VAC power


LV & HV Motor Features:

  • High performance

  • Cost effective

  • Optimized motors for both low-voltage and high-voltage applications

  • Five frame sizes from size 11 to 34

  • Static torques from 5 to 1000 oz-in.

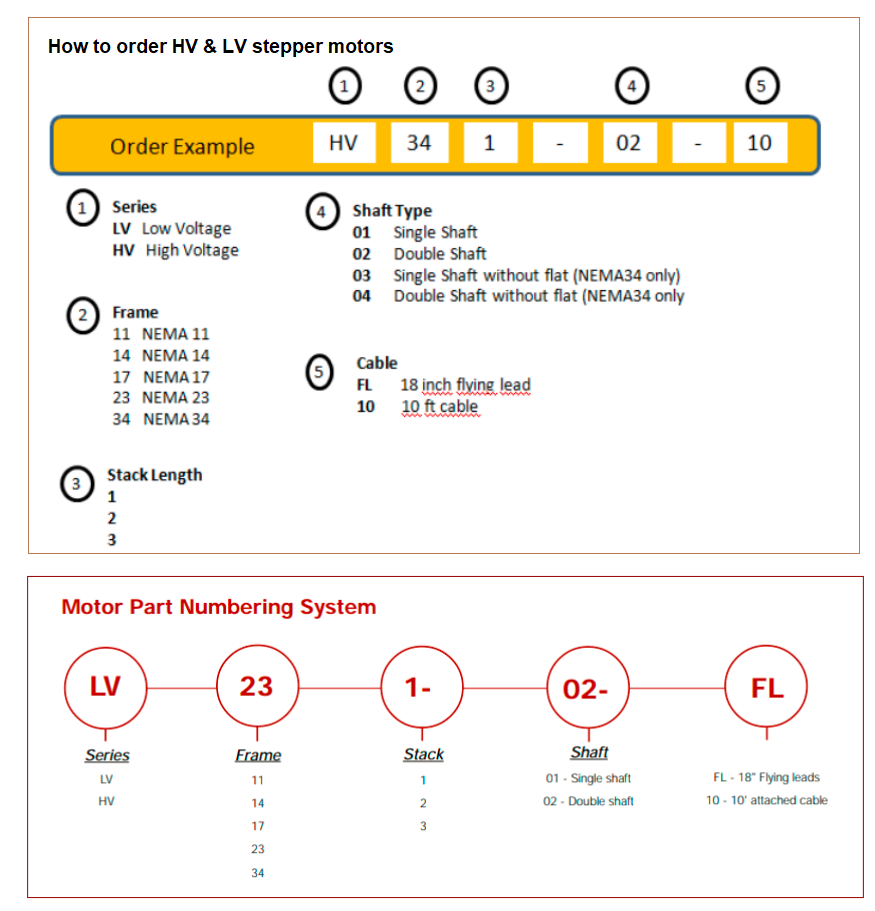

Model No.: LV341-01-10, LV341-01-FL, LV341-02-10, LV341-02-FL, LV341-03-10, LV341-03-FL, LV341-04-10, LV341-04-FL, LV342-01-10, LV342-01-FL, LV342-02-10, LV342-02-FL, LV342-03-10, LV342-03-FL, LV342-04-10, LV342-04-FL, LV343-01-10, LV343-01-FL, LV343-02-10, LV343-02-FL, LV343-03-10, LV343-03-FL, LV343-04-10, LV343-04-FL


Link:

Parker LV & HV Series Stepper Motor PDF
