Parker: ZP200 Series Vertical Lift
Wedge Table

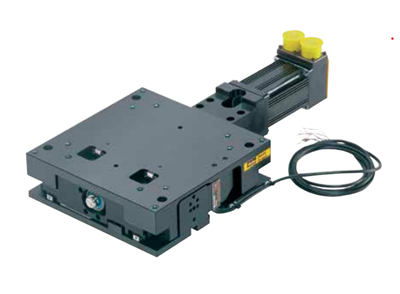

The ZP200 Z axis lift table is a
stable support platform which provides precise vertical translation and
positioning, while maintaining X-Y integrity
Recirculating square rail bearings
are incorporated into a unique variation of “wedge” mechanics to enable
reliable high dynamic performance without the potential loss of travel
encountered with cross roller bearings.
The ZP200 is compatible with XR and
LXR tables for multi-axis systems, and it can be utilized as the system base
axis or top axis to fit the motion requirements of the application. Standard
mounting holes and dowel pin holes accommodate repeatable mounting.
Parkers ZP200 Vertical Lift Platform
offers precise vertical translation for elevating small or large payloads (up
to 167lbs). A unique wedge design converts horizontal motion, generated by a
ball-screw drive, into true vertical elevation of the platform. A rugged
bearing design provides platform stiffness and stability while the precision ground
ball-screw drive assures positional accuracy and worry-free operation.

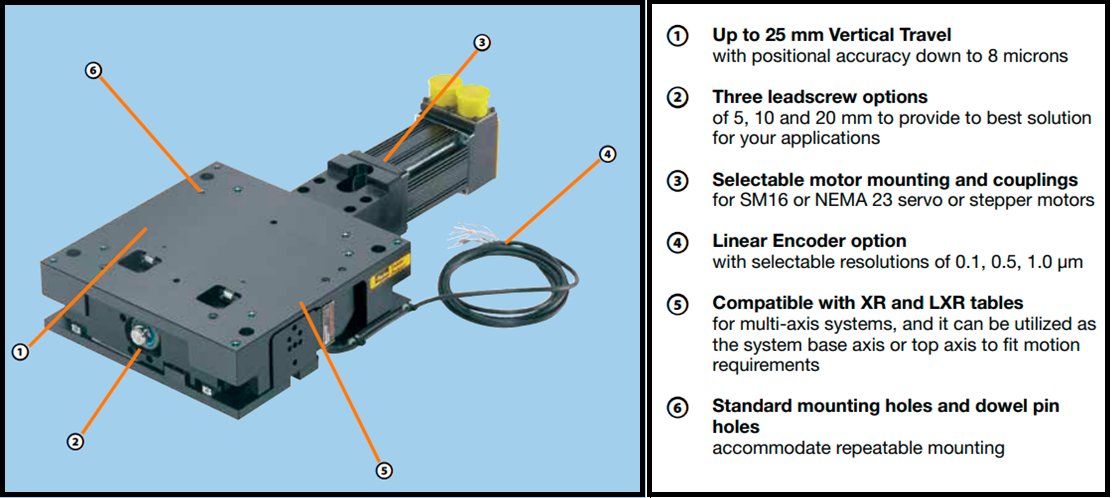

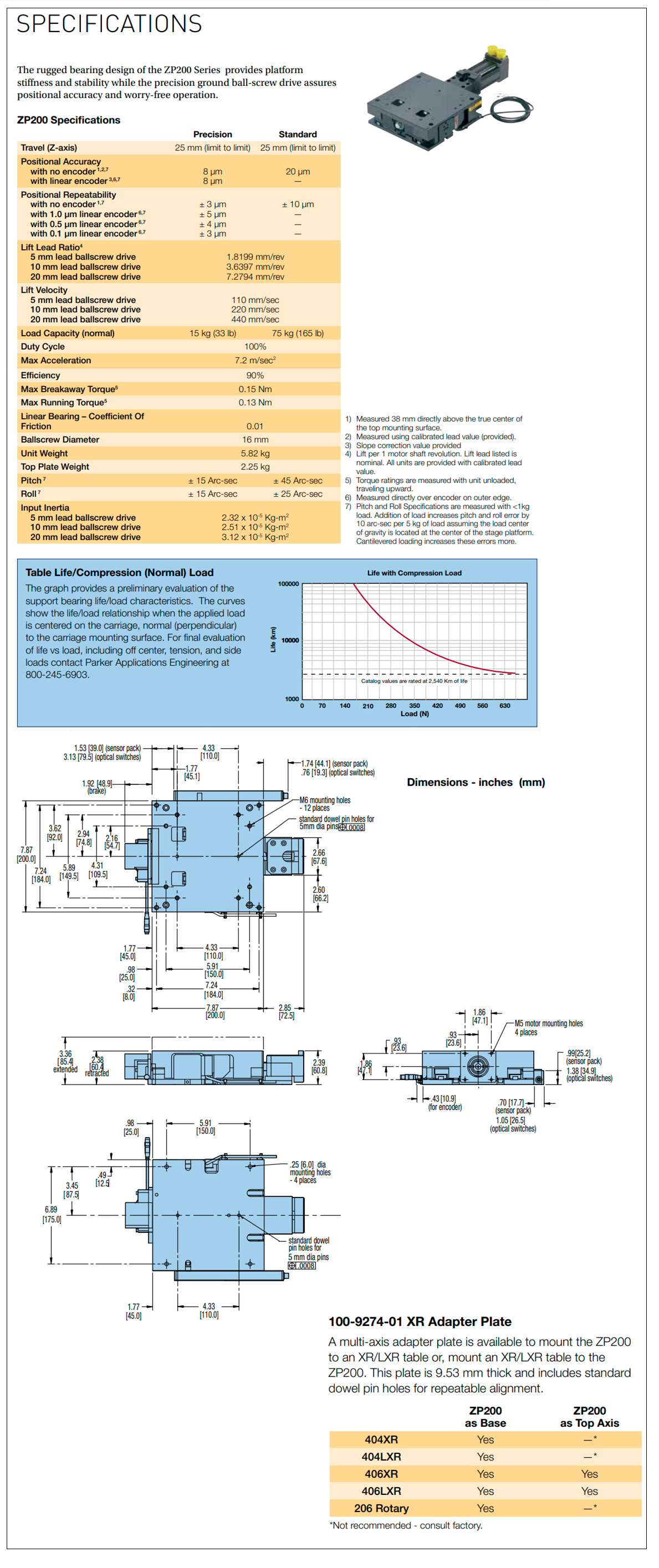

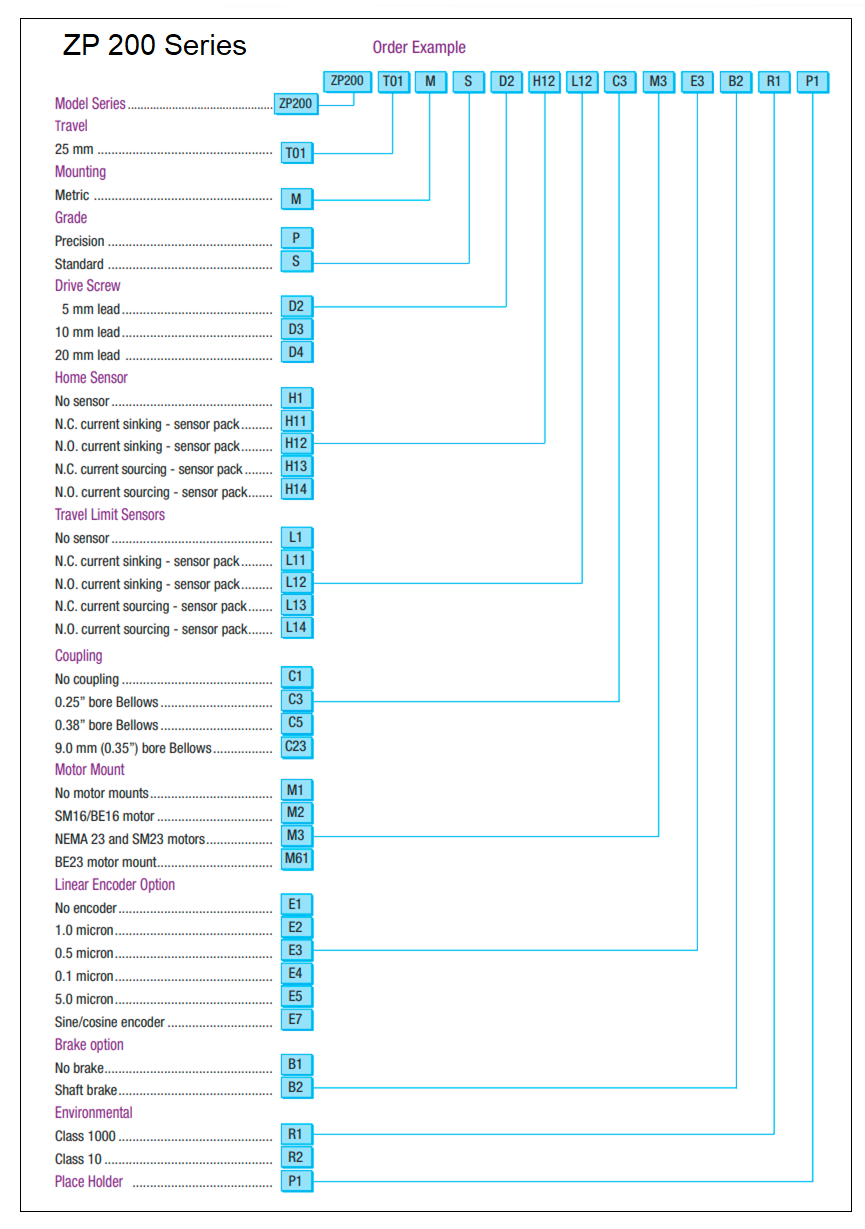

True Vertical Lift Platform
Continuous duty - High dynamic performance
25 mm Vertical Travel
Load Capacity to 167 lbs.
Positional Repeatability to 1 micron
+/-15 arc.sec. travel straightness throughout range of motion
Precision Ground Ball-Screw Drive
Encoder and Travel Limit Sensors
Multi-axis compatibility with XR and LXR tables
Laser tested and certified with calibrated lead value
