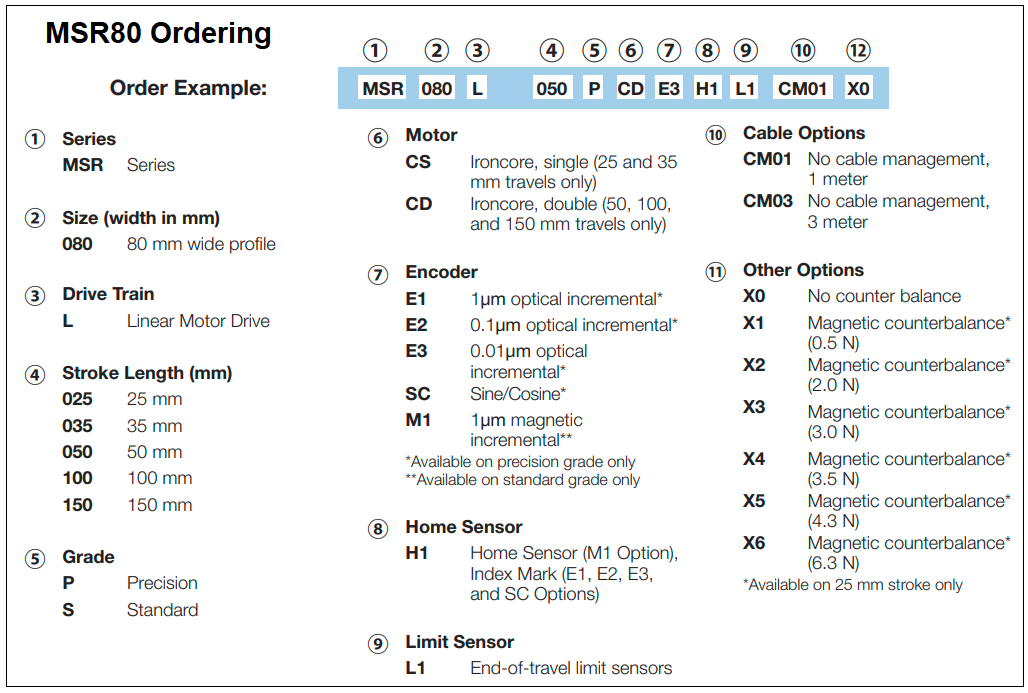

Description Ordering Information Specifications and Drawings


Parker: mSR Miniature Square Rail Positioner MSR80

The mSR series of miniature, dual square rail guided, linear motor positioners have been engineered to deliver a combination of modularity, flexibility, and performance in an extremely compact package.

For instrument builders who need smooth motion in a small package, the mSR is a linear positioner that provides sub-micron level precision in two different form factors (80 and 100).

The mSR series is a precision machined, square rail bearing guided linear positioner which is driven with one of two different linear servo motor technologies, and utilizes selectable levels of linear encoder technology that are configured to match the application need.

The mSR was developed to complement the successful MX80L positioner, and allows OEM’s developing equipment a number of added layers of value, in an extremely compact package, which is easy to apply, and can be tailor fitted to match the need regardless if one is interested in the reliability of a cost-competitive mechanically driven alternative, or a high precision positioner delivering best of breed performance – all in the same footprint.

Because of its compact, all-encompassing design, the mSR is an ideal positioning solution for applications in the life sciences. Typical applications range from imaging systems performing scanning operations to identify biological markers, to high throughput processing of microplates, to applications in cellular therapeutics requiring cell selection and high precision placement to supplement regenerative medicine techniques. Know that the mSR has been designed with typical instrument regulations and certifications in mind as all versions meet CE and RoHS requirements.

Likewise, the mSR is also ideal in application in electronics manufacturing due to its low profile and precision performance. Typical applications could range from semiconductor metrology, to wafer scribing.

mSR series standard features:

Two form factors (mSR 80 - 80 mm wide x 25 mm tall, and mSR 100 - 100 mm wide x 25 mm tall)

Standard strokes ranging from 25 mm to 500 mm

Two center driven linear motor technologies (mSR 80 - ironcore, mSR 100 - ironless)

Six different encoder options (magnetic incremental, optical incremental, sine/cosine, and BiSS-C Absolute)

Dowel holes for repeatable pinning

Integrated and adjustable home and limit sensing

Common tapped mounting holes and dowel locating holes

Complete error mapping on each precision grade version – with linear slope correction value provided

CE and RoHS compliance

A standard magnetic counterbalance (mSR 80 - 25 mm stroke)
