Parker: mSR Miniature Square Rail Positioner MSR100
The mSR series of miniature, dual
square rail guided, linear motor positioners have been engineered to deliver a
combination of modularity, flexibility, and performance in an extremely compact
package.
For instrument builders who need
smooth motion in a small package, the mSR is a linear positioner that provides
sub-micron level precision in two different form factors (80 and 100).
The mSR series is a precision
machined, square rail bearing guided linear positioner which is driven with one
of two different linear servo motor technologies, and utilizes selectable
levels of linear encoder technology that are configured to match the
application need.
The mSR was developed to complement
the successful MX80L positioner, and allows OEM’s developing equipment a number
of added layers of value, in an extremely compact package, which is easy to
apply, and can be tailor fitted to match the need regardless if one is
interested in the reliability of a cost-competitive mechanically driven
alternative, or a high precision positioner delivering best of breed
performance – all in the same footprint.
Because of its compact, all-encompassing
design, the mSR is an ideal positioning solution for applications in the life
sciences. Typical applications range from imaging systems performing scanning
operations to identify biological markers, to high throughput processing of
microplates, to applications in cellular therapeutics requiring cell selection
and high precision placement to supplement regenerative medicine techniques.
Know that the mSR has been designed with typical instrument regulations and
certifications in mind as all versions meet CE and RoHS requirements.
Likewise, the mSR is also ideal in
application in electronics manufacturing due to its low profile and precision
performance. Typical applications could range from semiconductor metrology, to
wafer scribing.

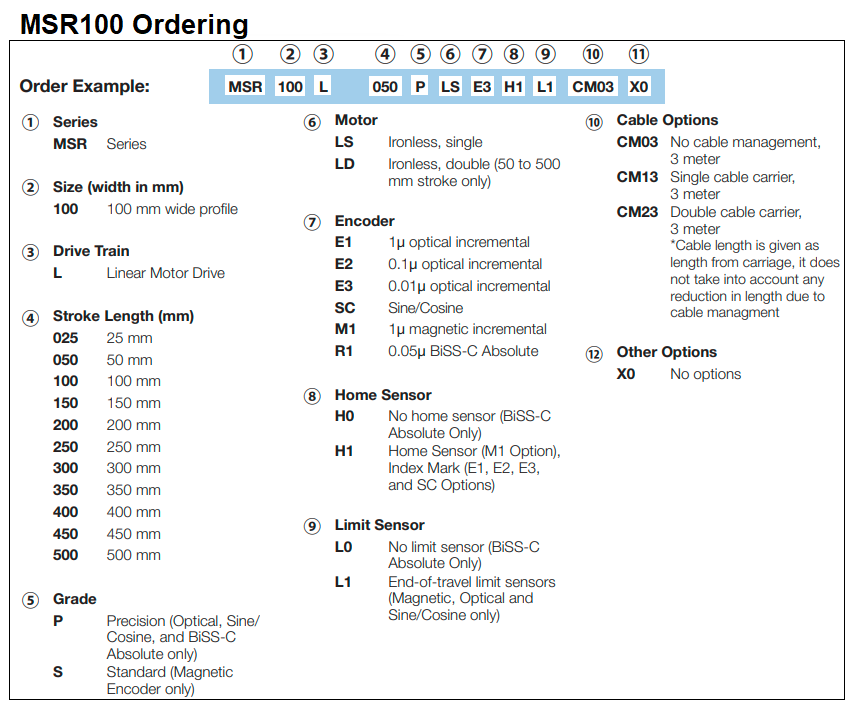

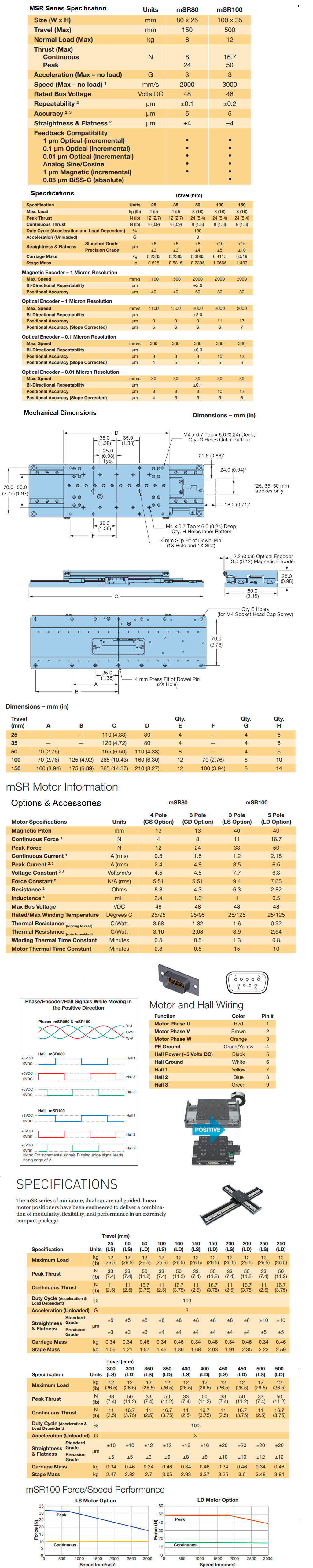

mSR series standard features:
Two form factors (mSR 80 - 80 mm wide
x 25 mm tall, and mSR 100 - 100 mm wide x 25 mm tall)
Standard strokes ranging from 25 mm
to 500 mm
Two center driven linear motor
technologies (mSR 80 - ironcore, mSR 100 - ironless)
Six different encoder options
(magnetic incremental, optical incremental, sine/cosine, and BiSS-C Absolute)
Dowel holes for repeatable pinning
Integrated and adjustable home and
limit sensing
Common tapped mounting holes and
dowel locating holes
Complete error mapping on each
precision grade version – with linear slope correction value provided
CE and RoHS compliance
A standard magnetic counterbalance
(mSR 80 - 25 mm stroke)
