Parker: Planetary Gearboxes (PTN Series)PTN060-004S7
Parker: Planetary Gearboxes (PTN Series)PTN060-004S7

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: PTN060-004S7


Model No.:

.

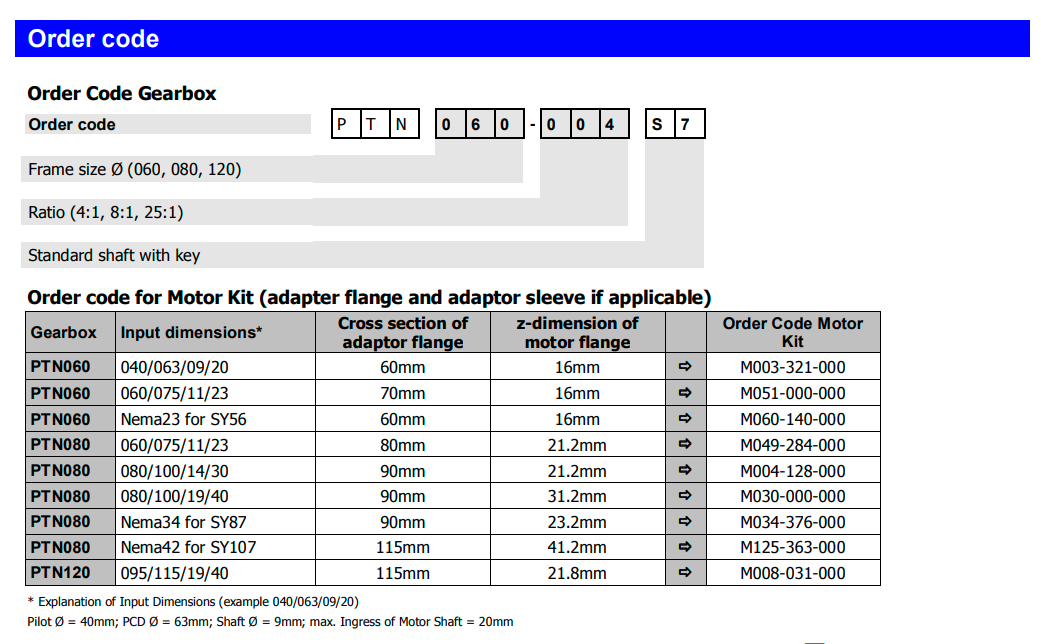

Description Ordering Information Specifications and Drawings

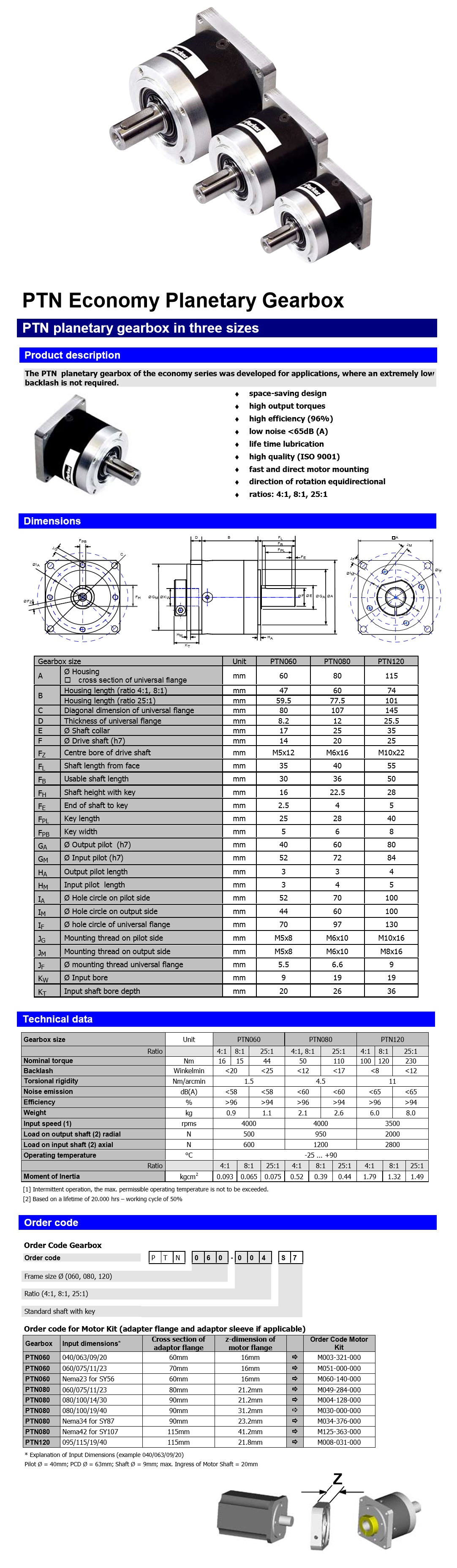

Parker: Economic Inline Planetary Gearboxes (PTN Series)PTN060-004S7

Available in 60-80mm frame sizes, the economic PTN-series planetary gearheads are suitable for all applications where low backlash is not required.

The PTN-series Economy Planetary Gearbox was developed for applications where low backlash is not required.


Features:

  • Frame Sizes: 60 – 80mm

  • Ratio Options: 4:1, 8:1 and 25:1

  • Backlash: to < 25 arc-minutes

  • Efficiency: up to 96%

  • Quiet Operation: less than 65db

  • Input Speeds: up to 4000 RPM

  • Space-saving design

  • High output torque

  • Fast and easy motor mounting

  • Direction of rotation equidirectional


Model No.: PTN060-004S7, PTN080-004S7, PTN120-004S7


Downloads:

3D CAD (STP) - Gearbox : PTN060 / 25:1
3D CAD (STP) - Gearbox : PTN060 / 4:1, 8:1
3D CAD (STP) - Gearbox : PTN080 / 25:1
3D CAD (STP) - Gearbox : PTN080 / 4:1, 8:1
3D CAD (STP) - Mounting Kit : PTN060/M051-000-00/060/075/11/23
3D CAD (STP) - Mounting Kit : PTN060/M060-140-00/for stepper motor SY56
3D CAD (STP) - Mounting Kit : PTN080/M004-128-000/080/100/14/30
3D CAD (STP) - Mounting Kit : PTN080/M030-000-000/080/100/19/40
3D CAD (STP) - Mounting Kit : PTN080/M034-376-000/for stepper motor SY87
3D CAD (STP) - Mounting Kit : PTN080/M049-284-000/060/075/11/23
3D CAD (STP) - Mounting Kit : PTN080/M125-363-000/for stepper motor SY107
3D CAD (STP) - Mounting Kit : PTN60/M003-321-00/040/063/09/20
