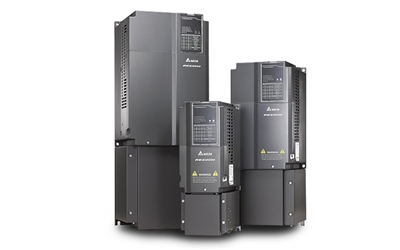

Delta: VFD Regenerative System for Braking (REG2000 Series)
Delta: VFD Regenerative System for Braking (REG2000 Series)


Price: (Members Only)


Order #: REG2000


Options:


Qty:

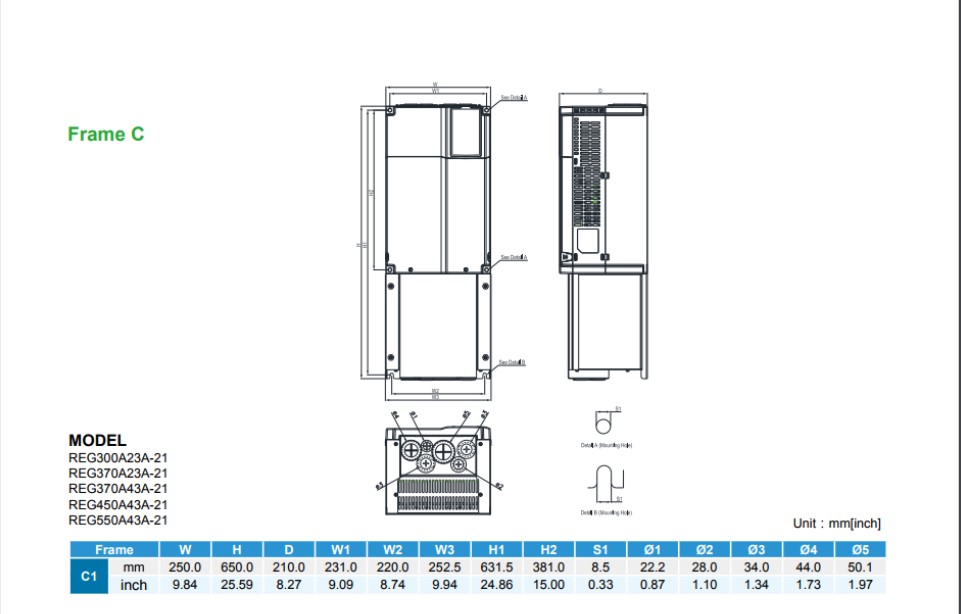

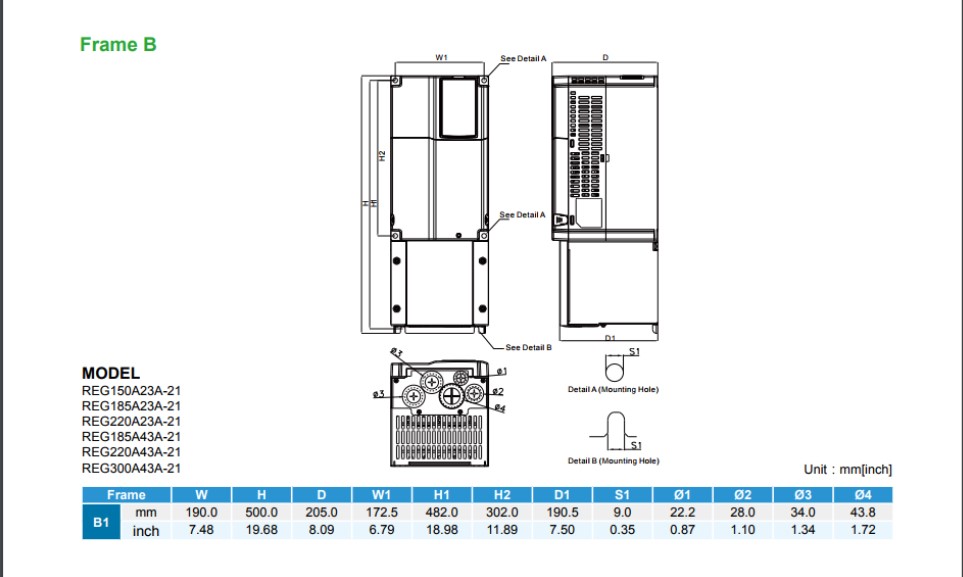

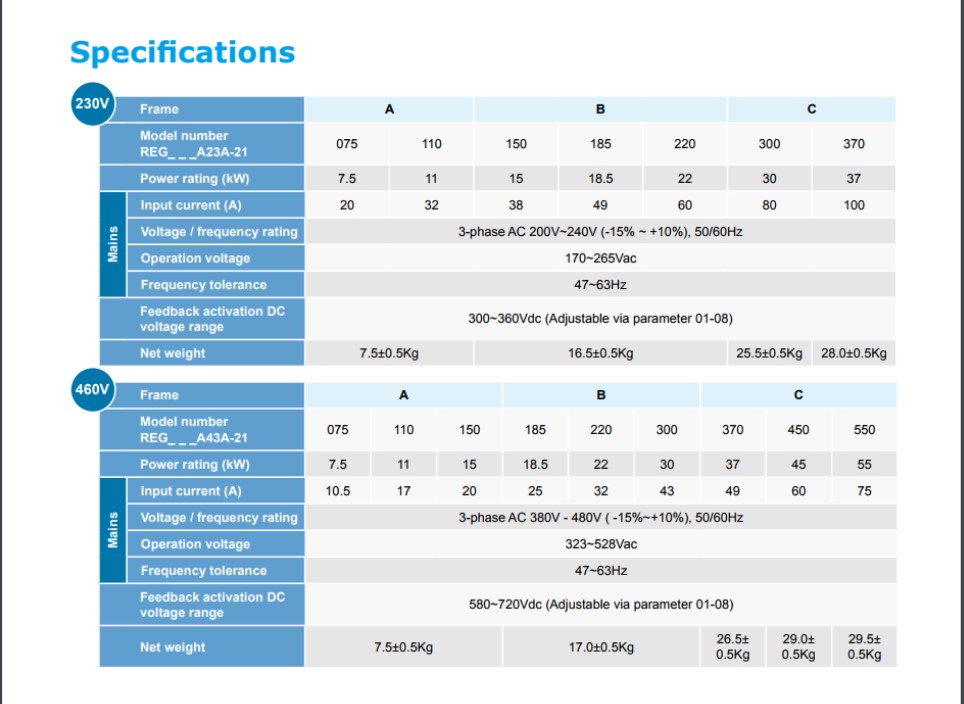

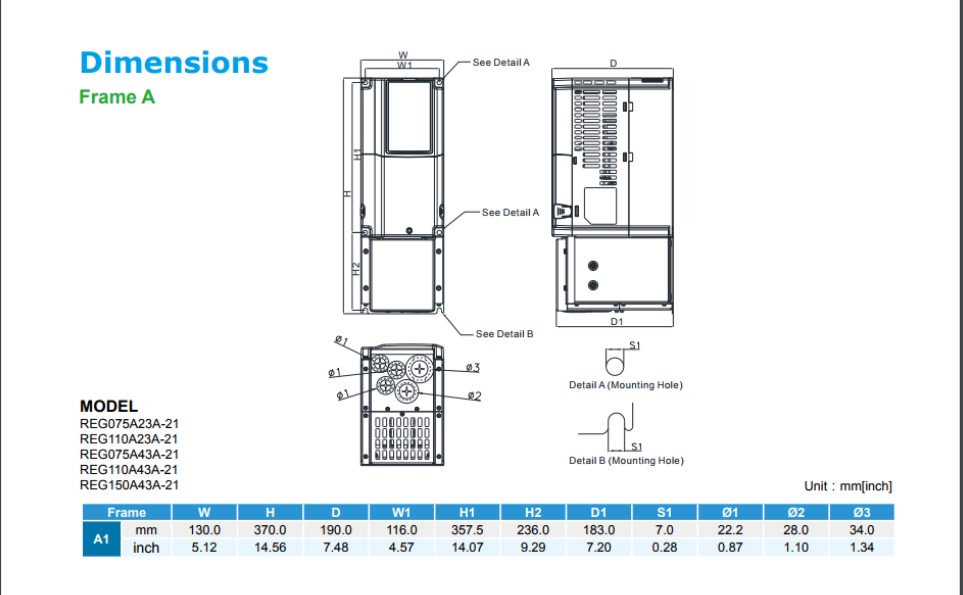

Description Ordering Information Specifications and Drawings


Delta: VFD Regenerative System for Braking (REG2000 Series)

With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

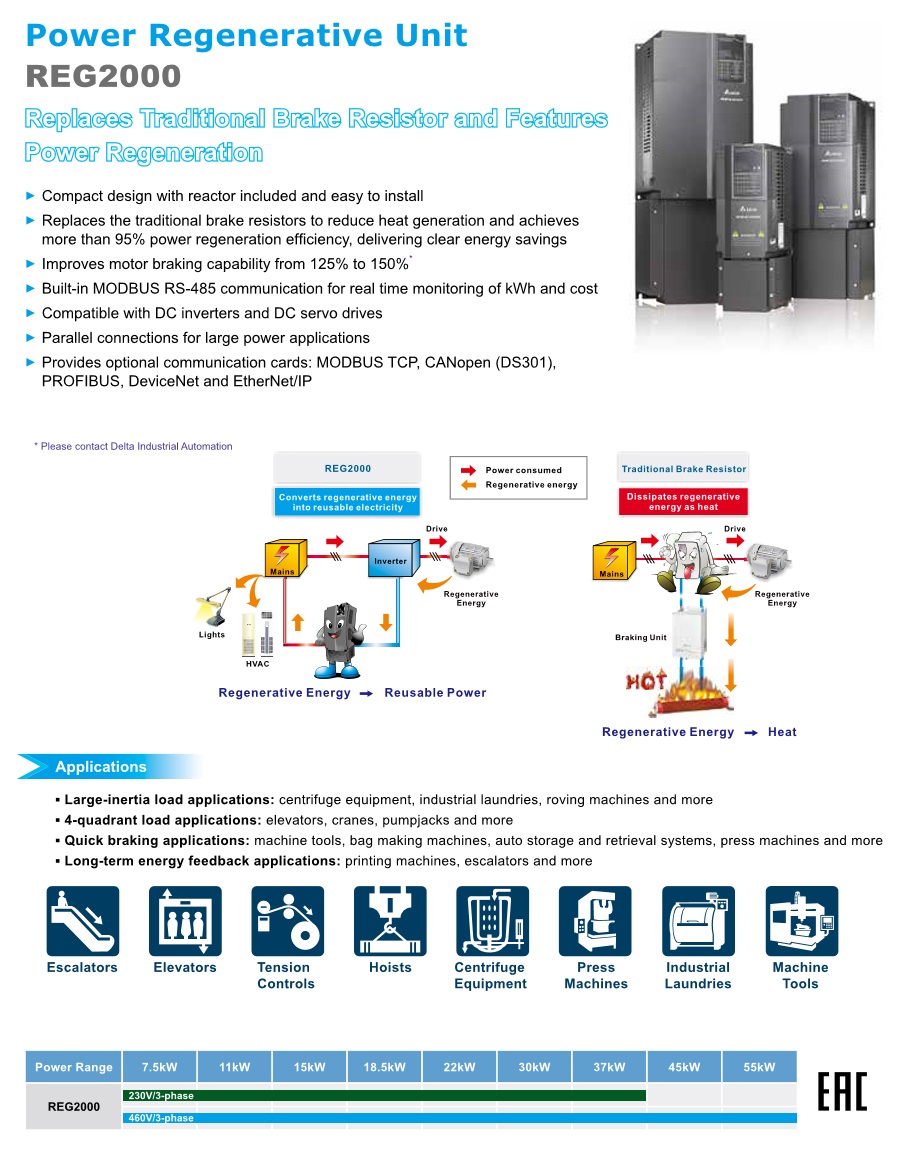

REG2000 Series

A traditional drive system used for inertia load work generally performs rapid deceleration, braking and positioning. When its motor is in generator mode it produces large amounts of regenerative energy that must be consumed to maintain a stable DC bus voltage and safe operation. The traditional method to solve the regenerative energy problem is to install a brake resistor. While it is easy to install and is low cost, it takes up a large amount of space and requires installing additional devices to dissipate the heat. This method provides limited efficiency and wastes the regenerative energy.

Delta's REG2000 series is capable of collecting and converting your system's regenerative energy into reusable electricity for the ultimate in energy savings. The installation process is as simple as installing a brake resistor, but with only half the size and better efficiency. The REG2000 is your best green energy solution for power regeneration.

Options:

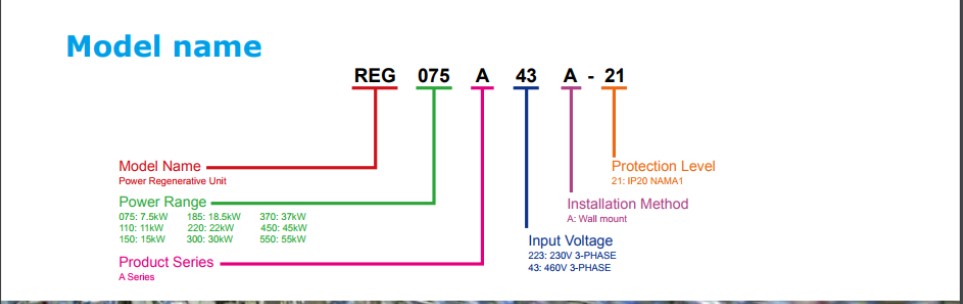

230V, REG075A23A-21, 230V, REG110A23A-21, 230V, REG150A23A-21, 230V, REG185A23A-21,
230V, REG220A23A-21, 230V, REG300A23A-21, 230V, REG370A23A-21,

460V, REG075A43A-21, 460V, REG110A43A-21, 460V, REG150A43A-21, 460V, REG185A43A-21,
460V, REG220A43A-21, 460V, REG300A43A-21, 460V, REG370A43A-21,
460V, REG450A43A-21, 460V, REG550A43A-21
