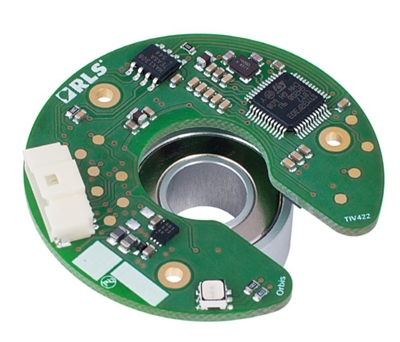

Renishaw: ORBIS™ ABSOLUTE ROTARY ENCODER BR10DCD14M12CD00+BA060AB01AA00
RENISHAW BISS-C ABOSOLUTE ENCODER


Price: (Members Only)


Availability: Usually Ships in 1 to 2 Weeks
Order #: BR10DCD14M12CD00-BA060AB01AA00
Qty:

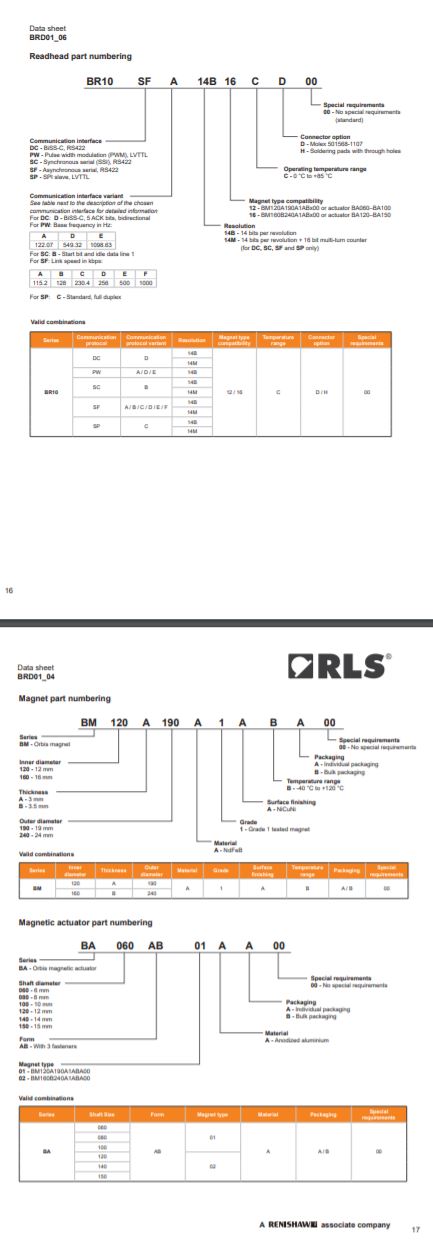

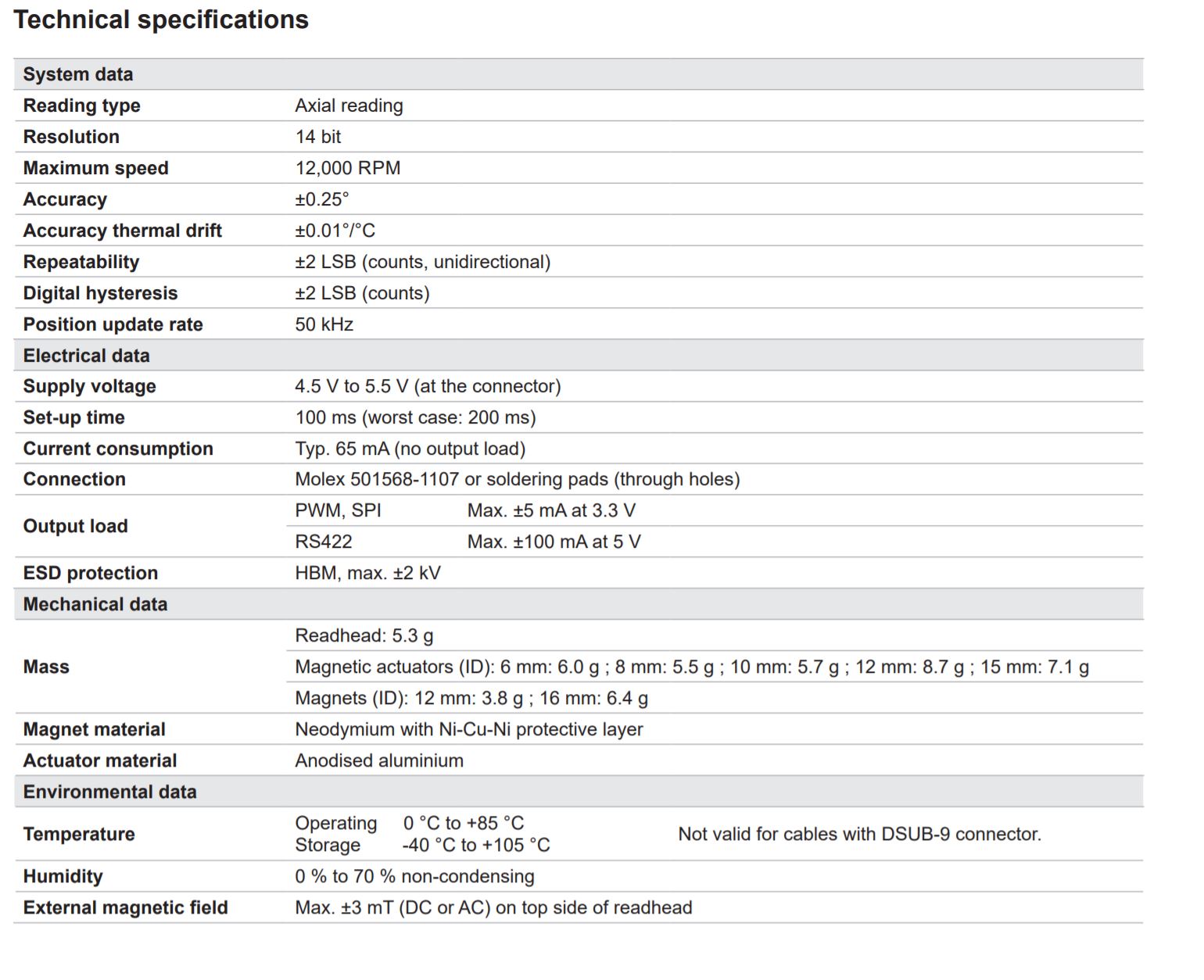

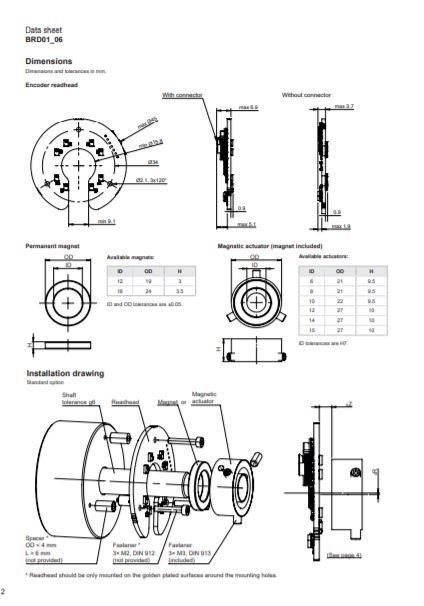

Description Ordering Information Specifications and Drawings


Orbis™ true absolute rotary encoder

OrbisTM is a true absolute rotary encoder suitable for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints or if hollow shaft is required. The encoder comprises a diametrically magnetized permanent ring magnet and a printed circuit board. Geometric arrangement of RLS’ proprietary Hall sensors on a PCB enables generation of one period of sine and cosine signals per mechanical magnet revolution. Moreover, it also enables cancellation of third harmonic component.

An adaptive filtering function ensures high resolution at low rotation speeds and low angle phase delay at high rotational speeds. OrbisTM also features an additional built-in selfcalibration algorithm that improves encoder’s accuracy after installation. OrbisTM through-hole measuring principle allows customisation with various board and magnet sizes to suit your application.

● True absolute encoder ● 14 bit resolution ● Multi-turn counter option ● Through-hole design enables its mounting anywhere along the shaft ● Optional self-calibration after assembly ● Buit-in self-diagnostics ● Status LED ● BiSS-C, SSI, SPI, Asynchronous serial and communication PWM ● Wide installation tolerances
